SHIFT LOCK SYSTEM

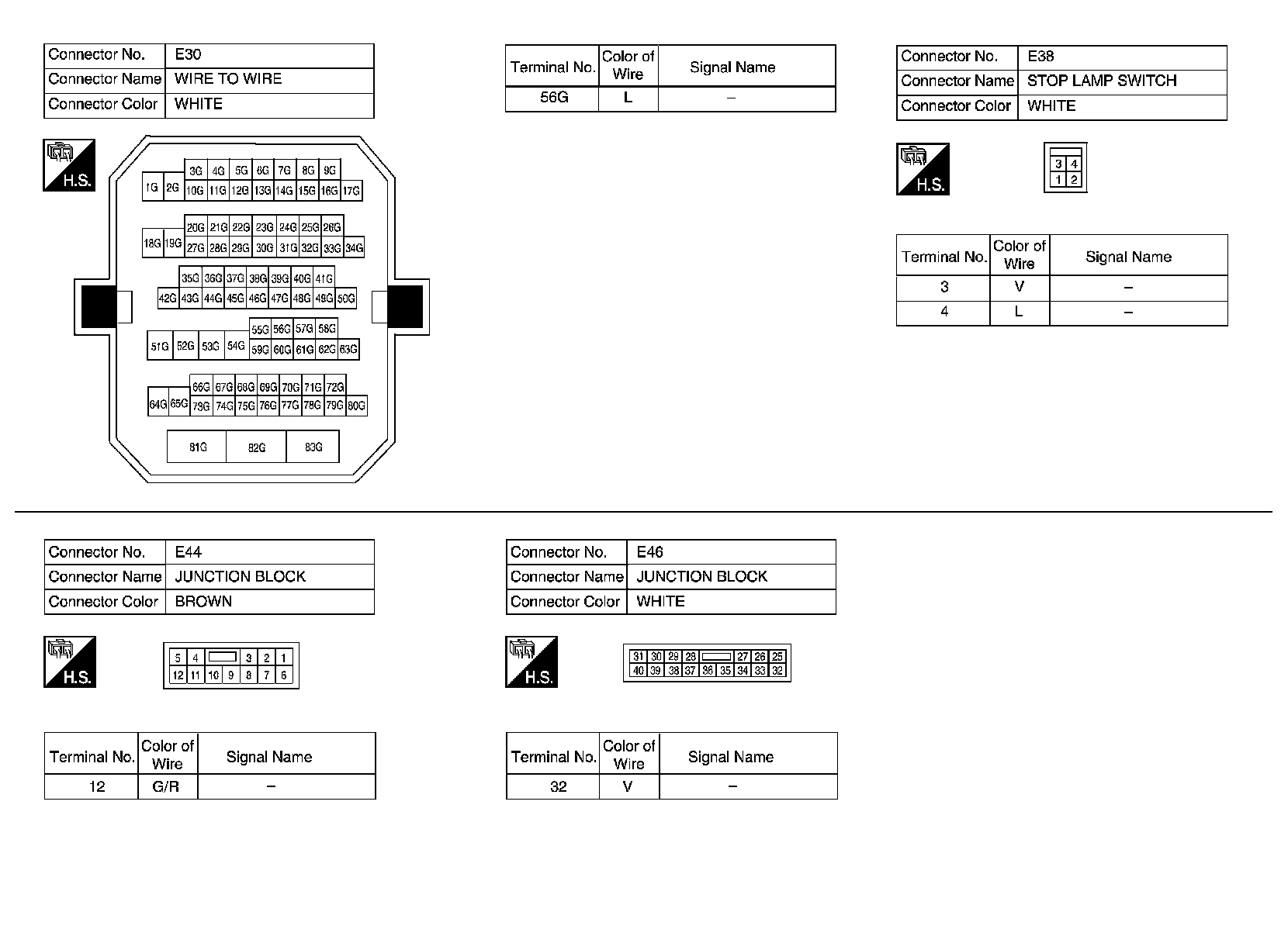

Wiring Diagram - CVT SHIFT LOCK SYSTEM - Coupe
CVT Shift Lock System - Part 1:
CVT Shift Lock System - Part 2:
CVT Shift Lock System - Part 3:
