SHIFT LOCK SYSTEM
Wiring Diagram - CVT SHIFT LOCK SYSTEM - Sedan

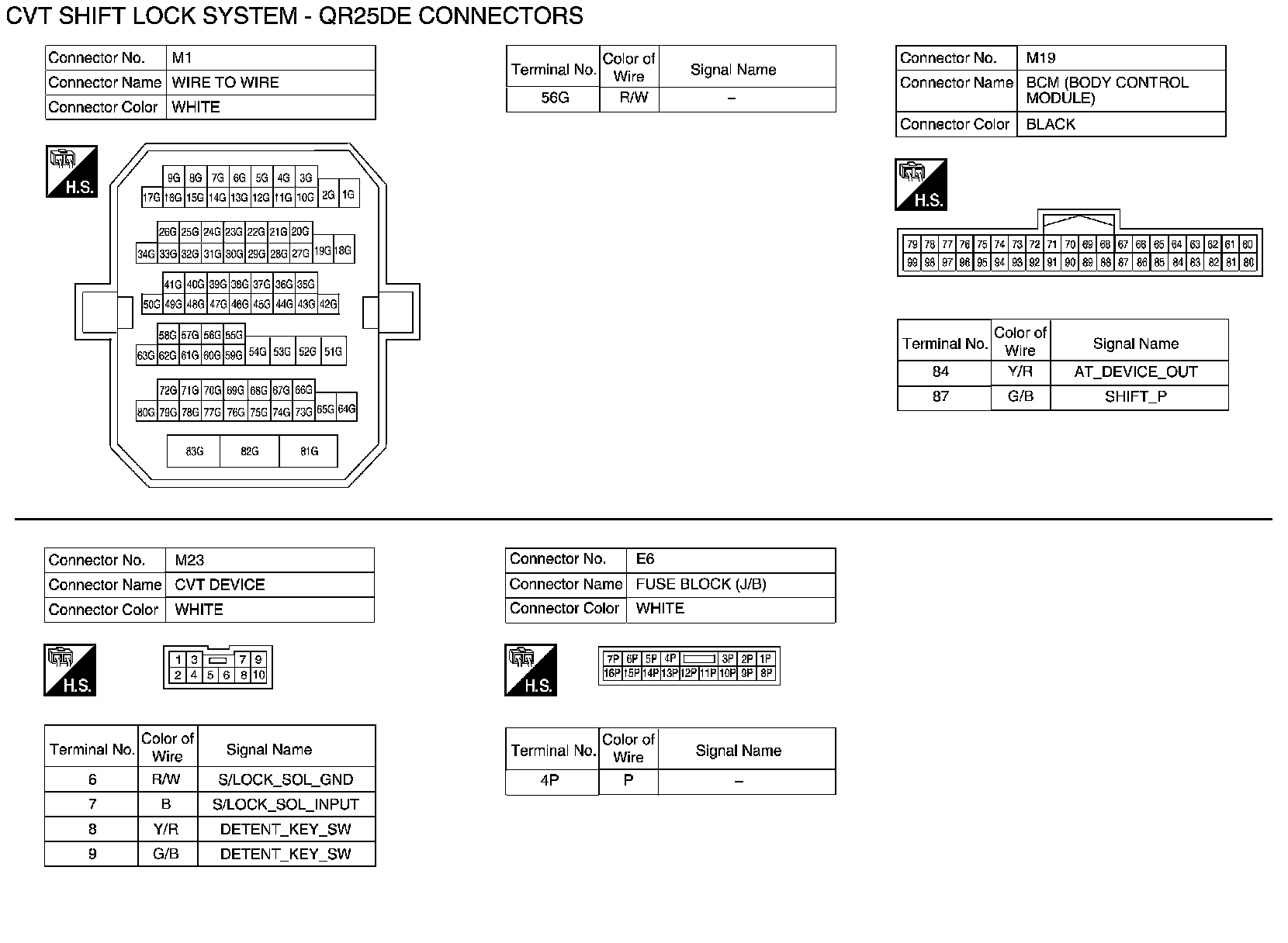

CVT Shift Lock System - Part 1:

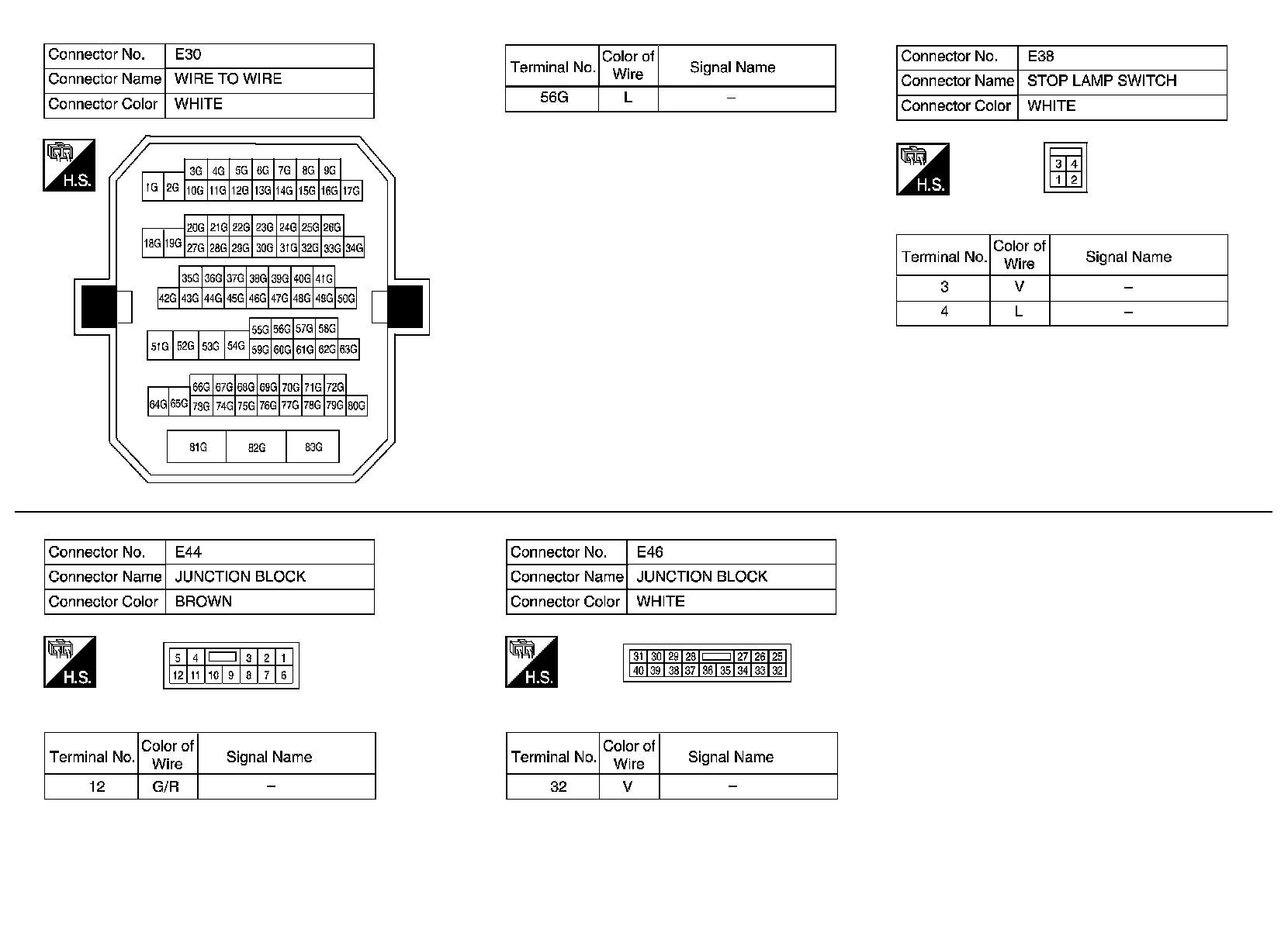

CVT Shift Lock System - Part 2:
CVT Shift Lock System - Part 3:
