Wiring Diagram - Tire Pressure Monitoring System - Coupe
Wiring Diagram - Tire Pressure Monitoring System - Coupe

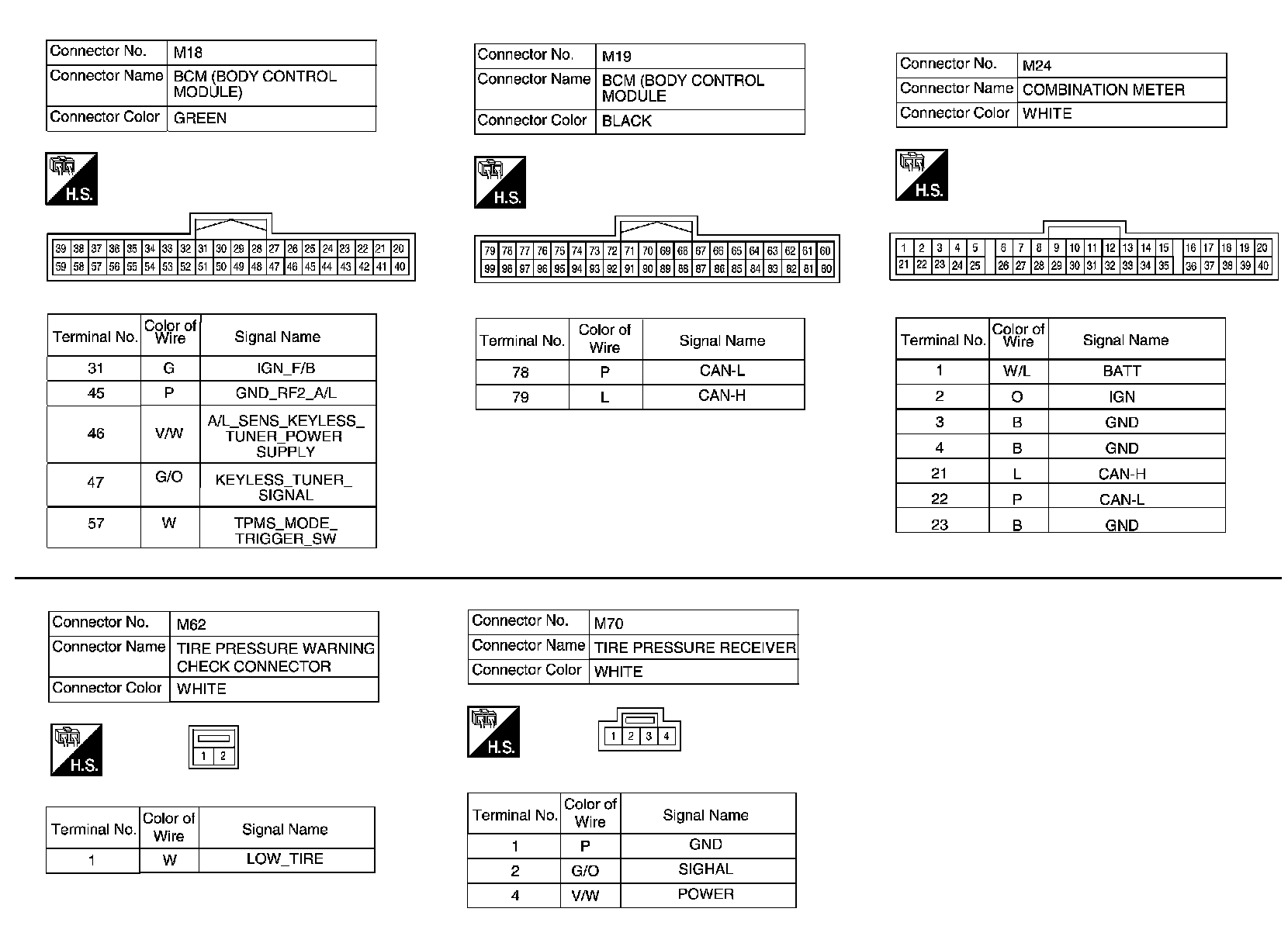

BCM (BODY CONTROL MODULE)

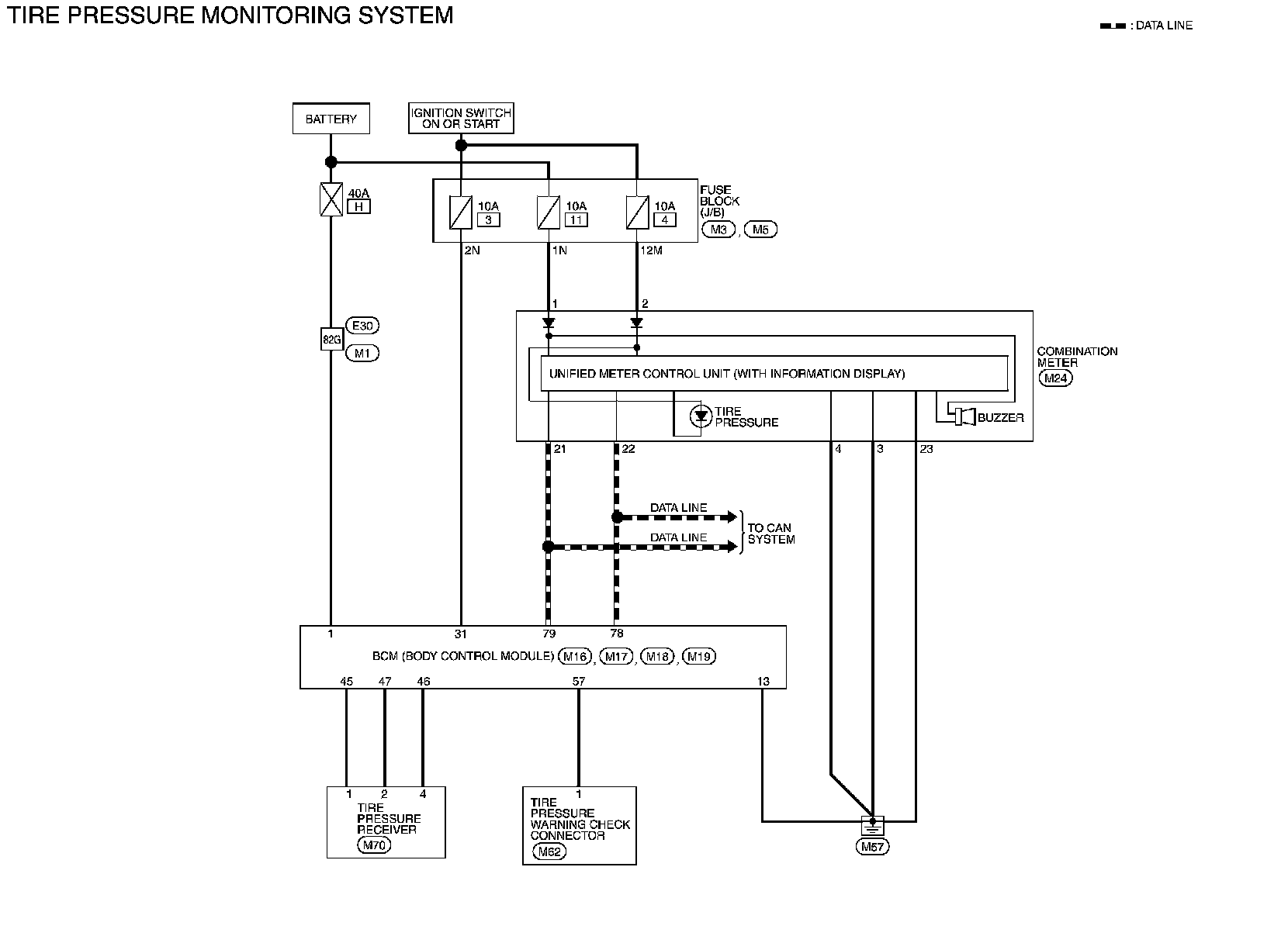

Wiring Diagram - TIRE PRESSURE MONITORING SYSTEM - Coupe
