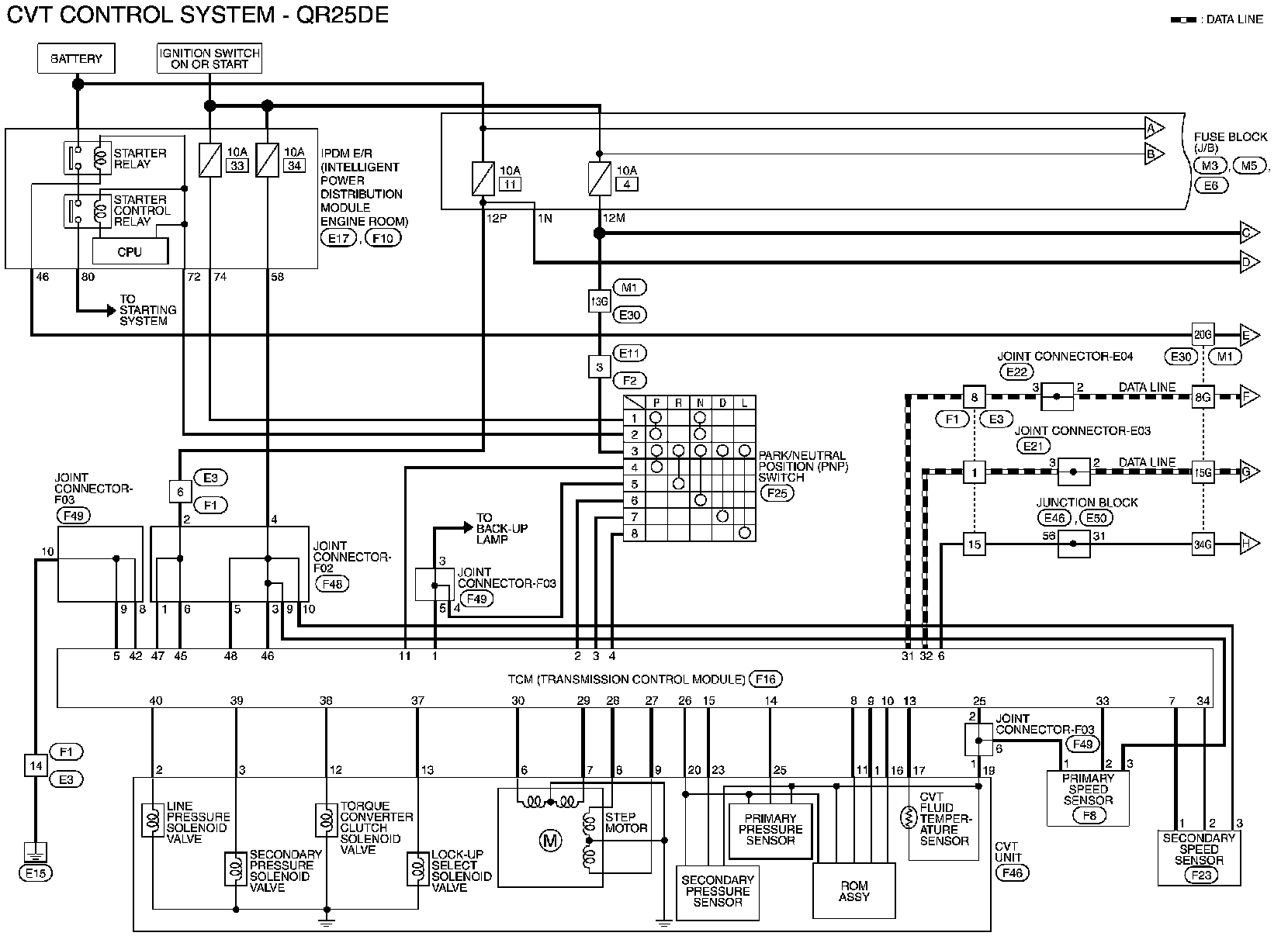

Wiring Diagram - CVT Control System - Sedan

CVT Control System - Part 1:

CVT Control System - Part 2:

CVT Control System - Part 3:

CVT Control System - Part 4:

CVT Control System - Part 5:

CVT Control System - Part 6:

CVT Control System - Part 7:

CVT Control System - Part 8:

CVT Control System - Part 9:
