Front Wiper And Washer System-Coupe





FRONT WIPER AND WASHER SYSTEM

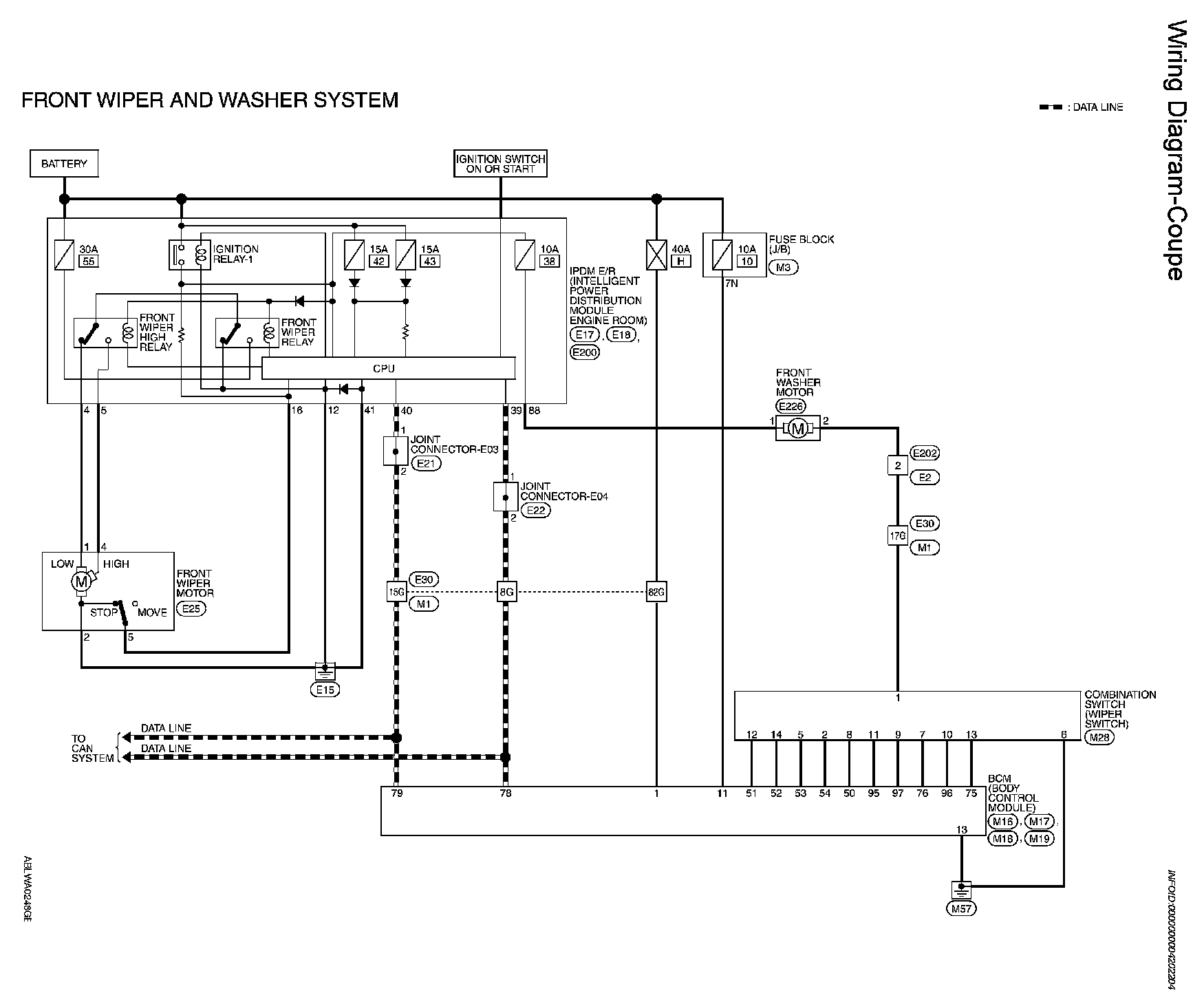

Wiring Diagram-Coupe

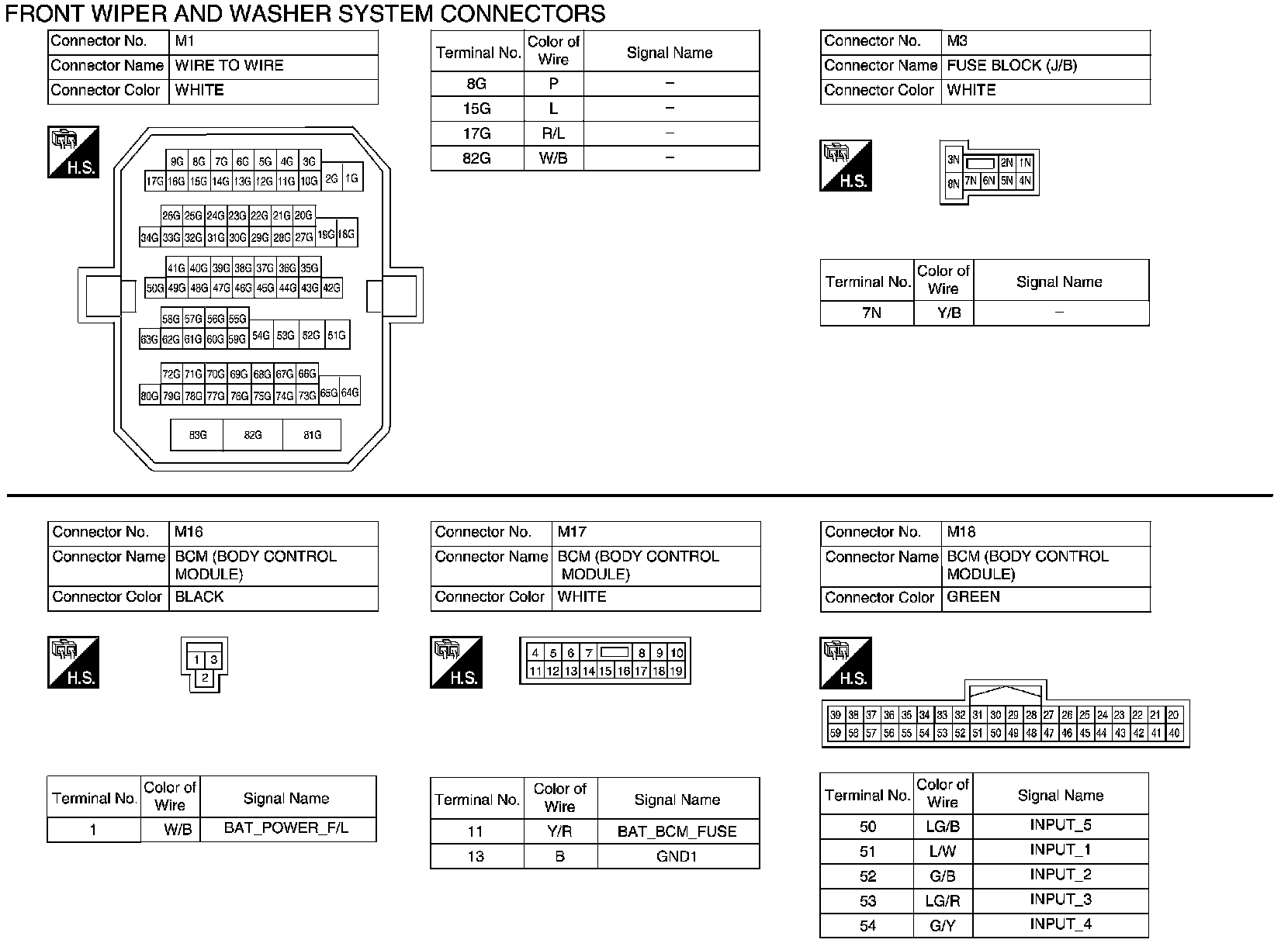

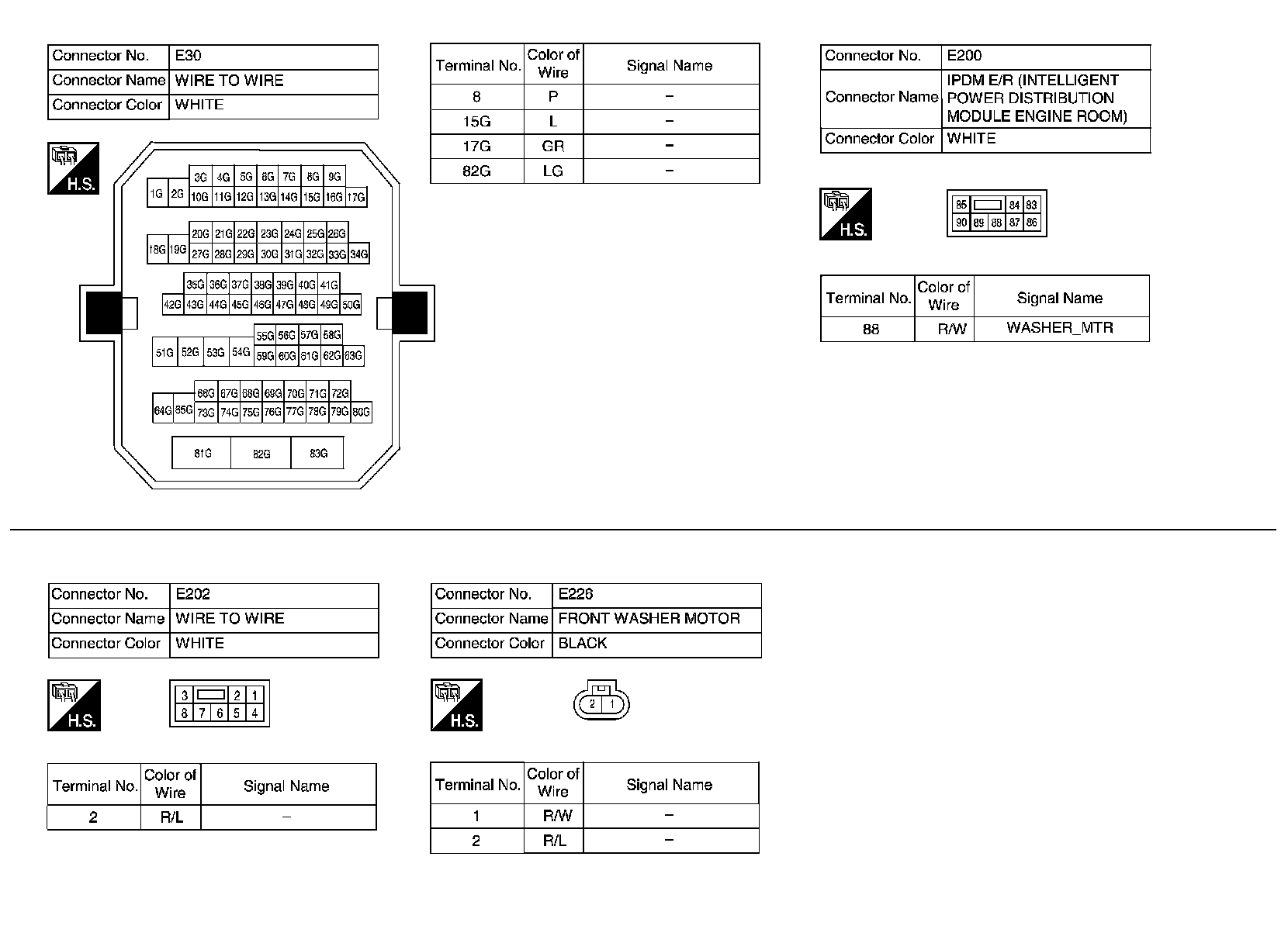

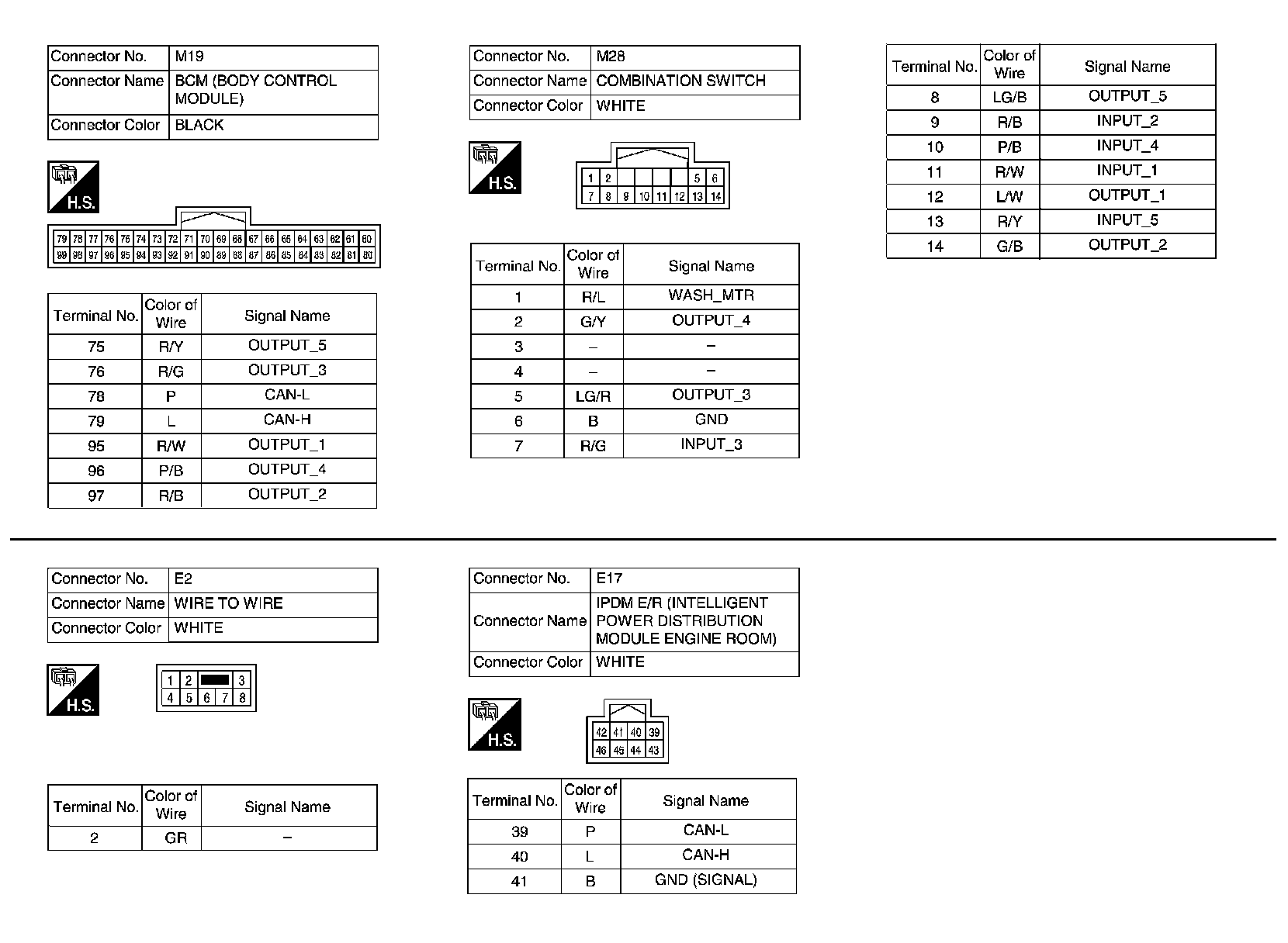

Front Wiper And Washer System - Part 1:






Front Wiper And Washer System - Part 2:






Front Wiper And Washer System - Part 3:






Front Wiper And Washer System - Part 4:






Front Wiper And Washer System - Part 5:
