Cylinder Head Assembly: Specifications

CYLINDER HEAD






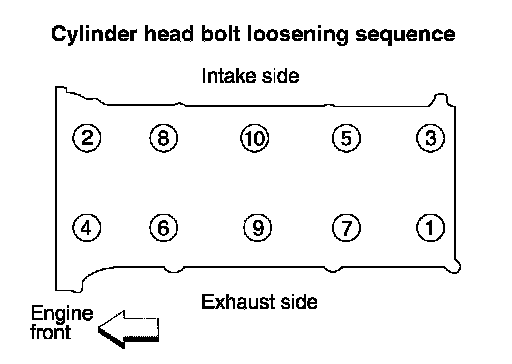

Cylinder Head

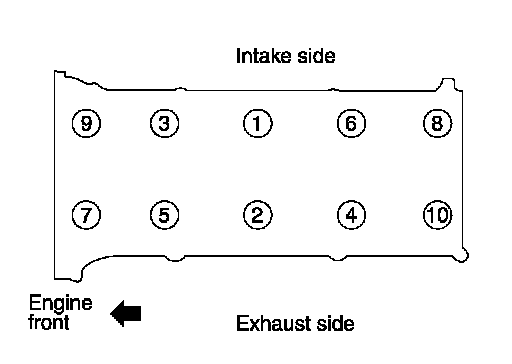

Follow the steps below to tighten the cylinder head bolts in the numerical order as shown.

- Apply new engine oil to the threads and the seating surfaces of bolts.

CAUTION:
- If cylinder head bolts are re-used, check their outer diameters before installation. Follow the Outer Diameter of Cylinder Head Bolts measurement procedure.
- Check and confirm the tightening angle by using angle wrench or protractor. Avoid judgment by visual Inspection without the tool.





Tool number : KV10112100 (BT-8653-A)















Head Bolt Reuse/Replace

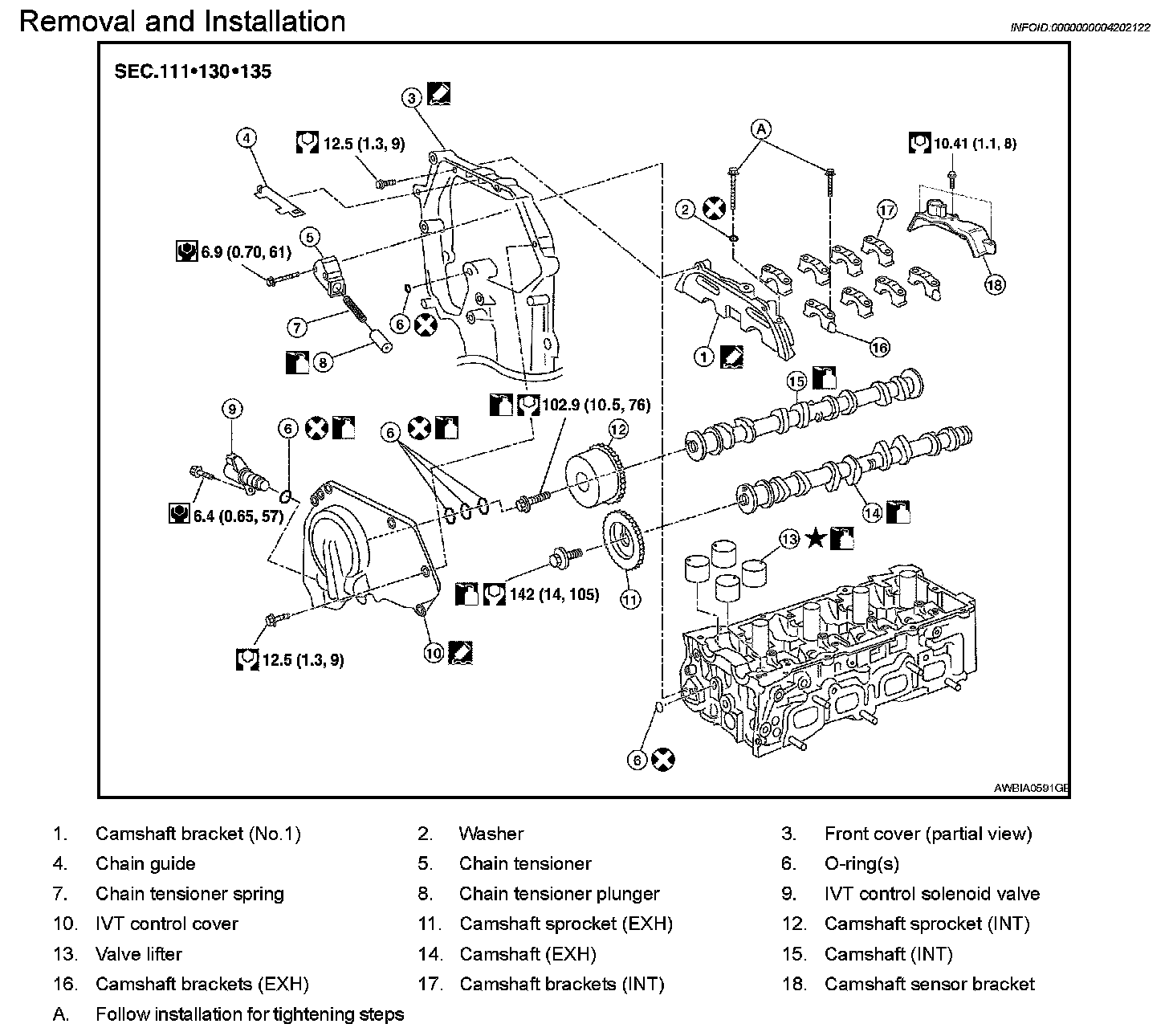

Removal and Replacement


Intake Manifold










Tighten in numerical order as shown.

Camshaft Bearing Cap

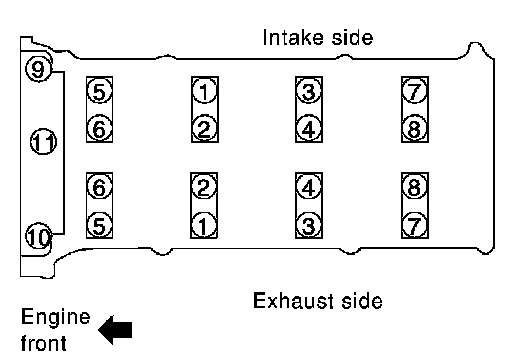

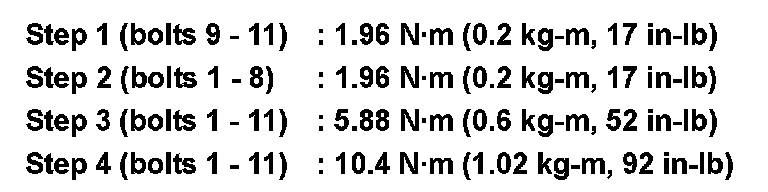

Tighten camshaft bracket bolts in four steps in the order as shown.






Camshaft Gear/Sprocket





Exhaust Manifold










Tighten the nuts to specification in the numerical order shown, on the exhaust manifold and three way catalyst assembly.
