CVT - Whine/Grind Noise On Accelereation/Highway Speeds: Overview
Classification: AT10-003AReference: NTB10-143A
Date: April 28, 2011
2007-2009 ALTIMA; WHINE NOISE FROM CVT AT HIGHWAY SPEEDS
APPLIED VEHICLES:
2007-2009 Altima Sedan (L32) with 4-cyl engine only
2008-2009 Altima Coupe (CL32) with 4-cyl engine only
APPLIED TRANSMISSION: CVT only
NOTE:
This bulletin does not apply to Altima Hybrid
This bulletin has been amended. ACTION, PARTS INFORMATION, essential tools, and the SERVICE PROCEDURE have been amended. Please discard all previous copies.
IF YOU CONFIRM:
A whine or grind type noise heard during acceleration and / or constant highway speeds.
^ The level of noise may increase as vehicle speed increases.
AND
There are no other drivability issues or stored DTCs related to the CVT.
ACTION:

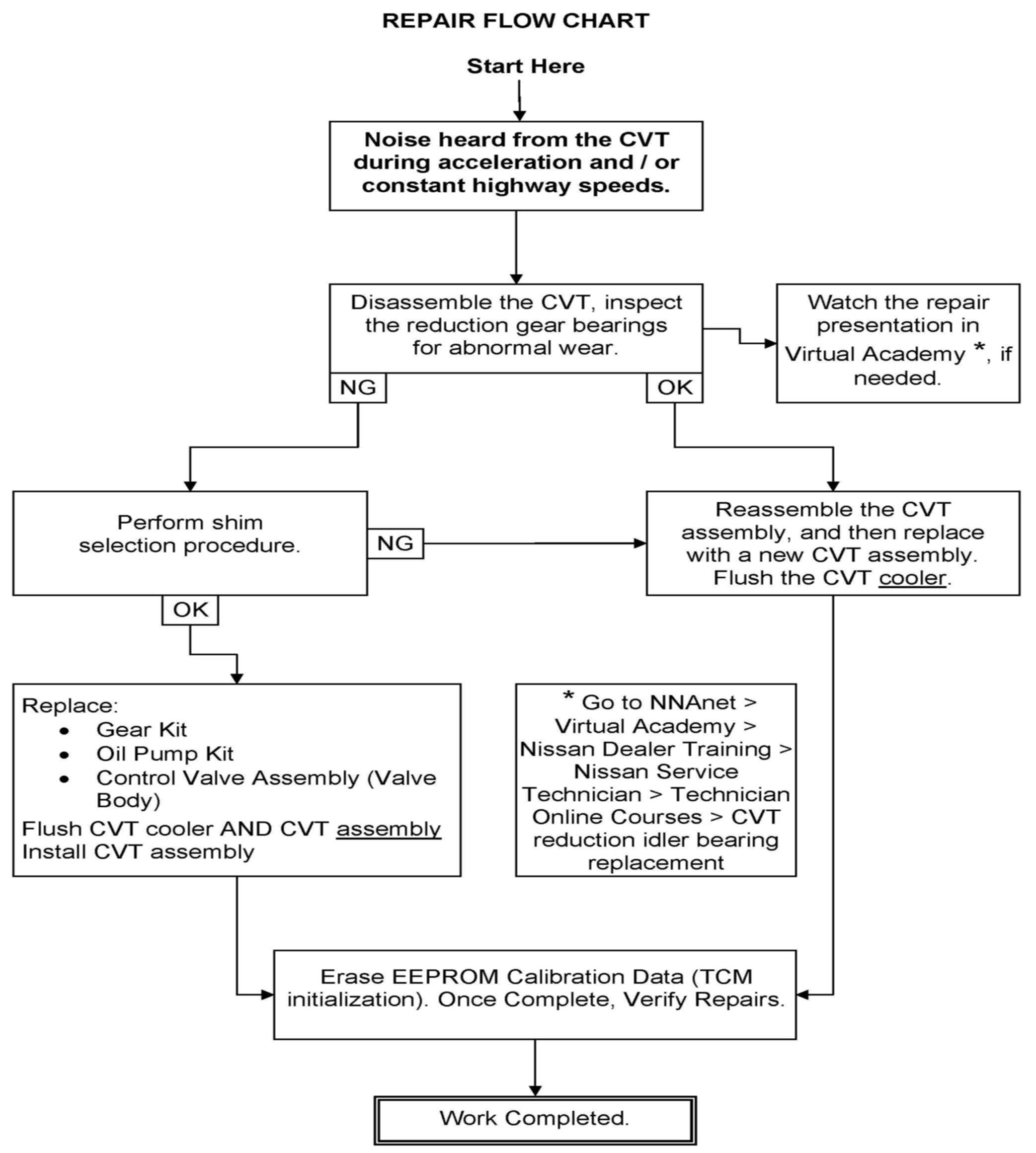

Refer to the REPAIR FLOW CHART above for repair procedure.

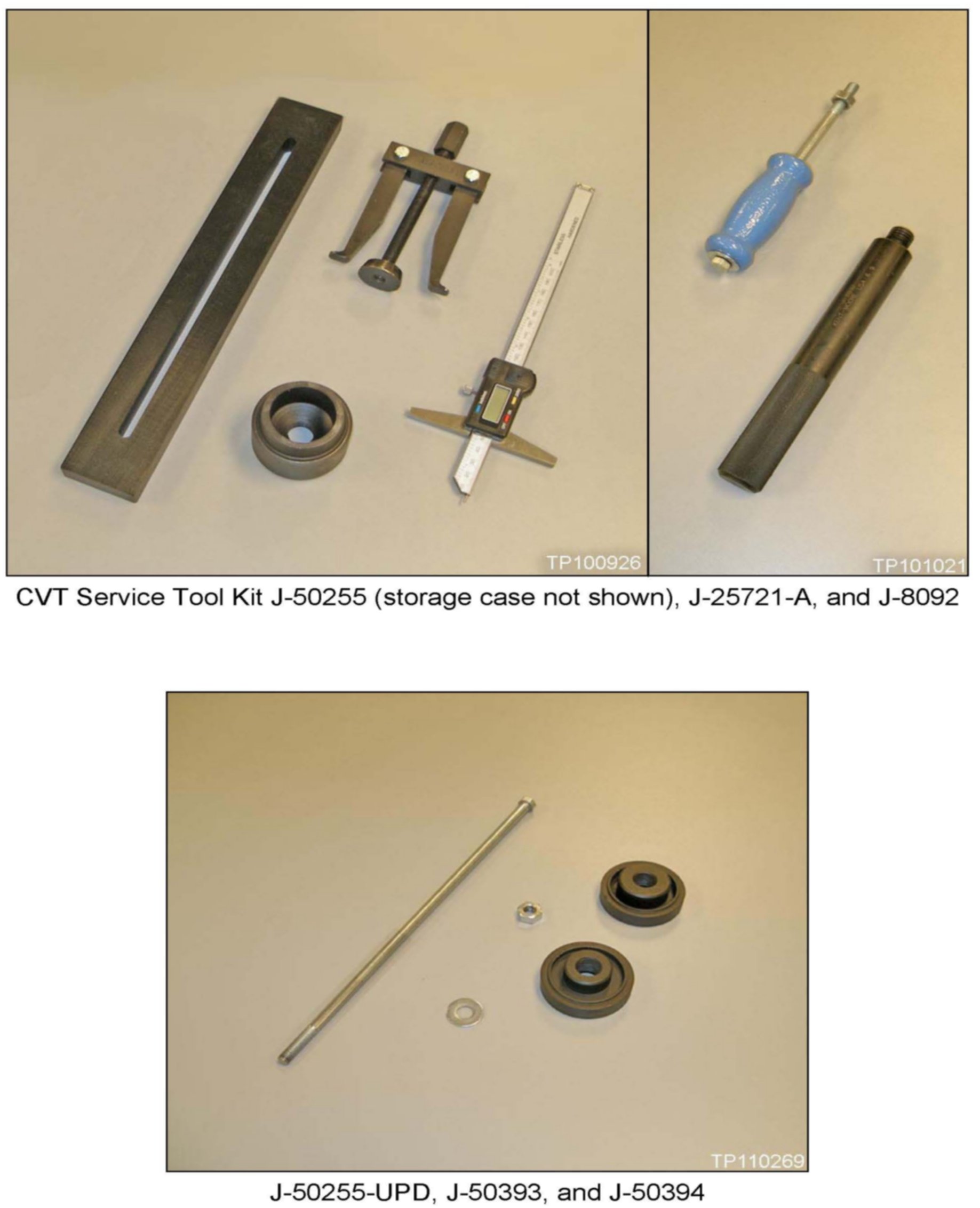

^ Use CVT Service Tool Kit J-50255, Seal Installers J-50393 and J-50394, Slide Hammer Bolt J-50255-UPD, Slide Hammer J-25721-A, and Driver Handle J-8092. J-50255, J-50255-UPD, J-50393, and J-50394 are considered "Essential" and have been sent to each dealer on Dec 1, 2010, January 14, 2011, and March 15, 2011, respectively. Your Non-Vehicle account was charged $397.95, $17.03, and $55.67 (plus applicable taxes and freight). Tool J-25721-A and J-8092, both considered "Essential" for other specific repairs, were previously sent to each dealer.
^ Additional tools and / or replacement parts can be ordered from TECH-MATE. Prices are subject to change.
NOTE:

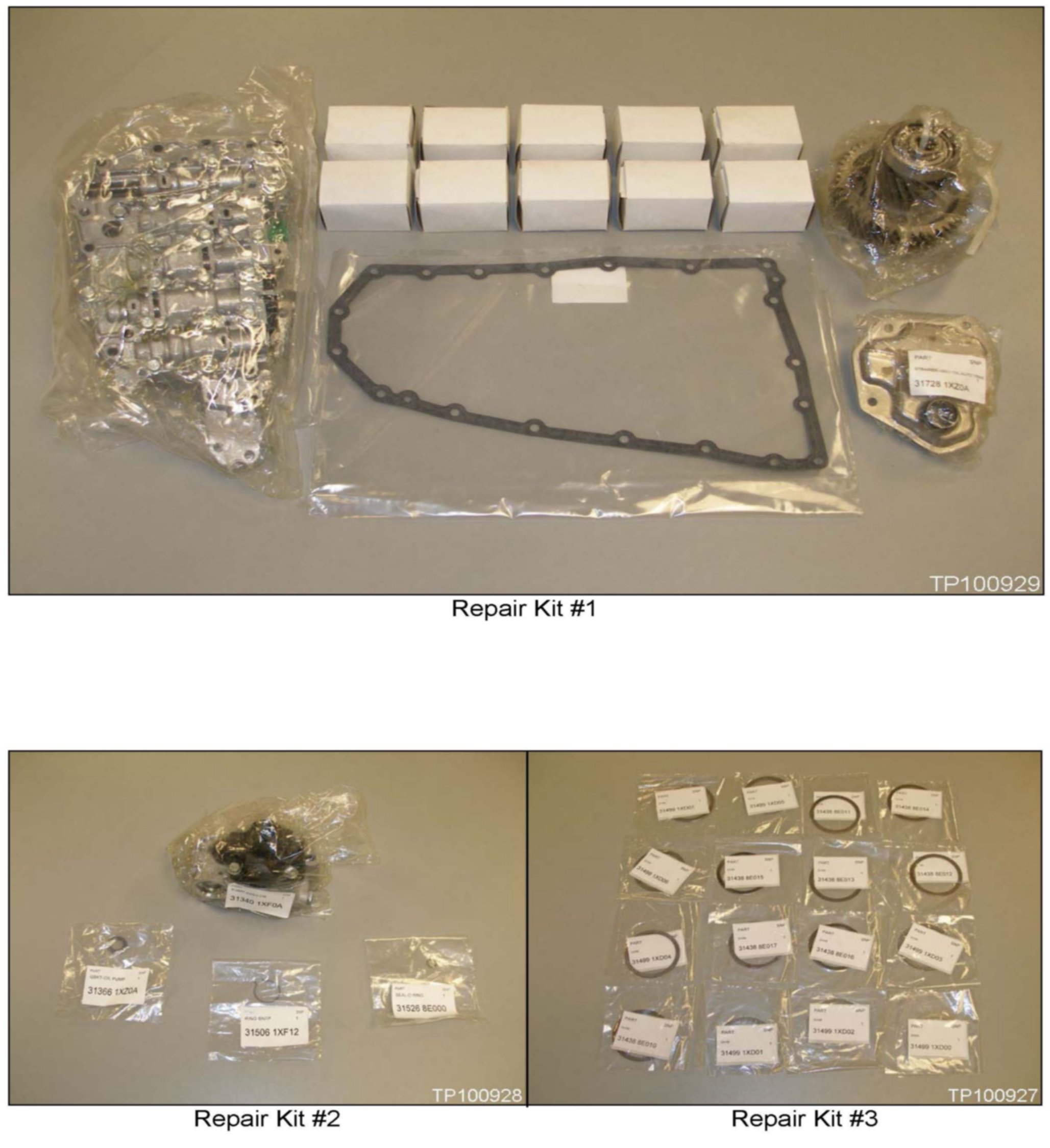

Parts Kit #1 (see PARTS INFORMATION) must be available at the time the reduction gear bearing shim selection procedure is to be performed.
IMPORTANT:
The purpose of ACTION (above) is to give you a quick idea of the work you will be performing. You MUST closely follow the REPAIR FLOW CHART as it contains information that is essential to successfully completing the repair.

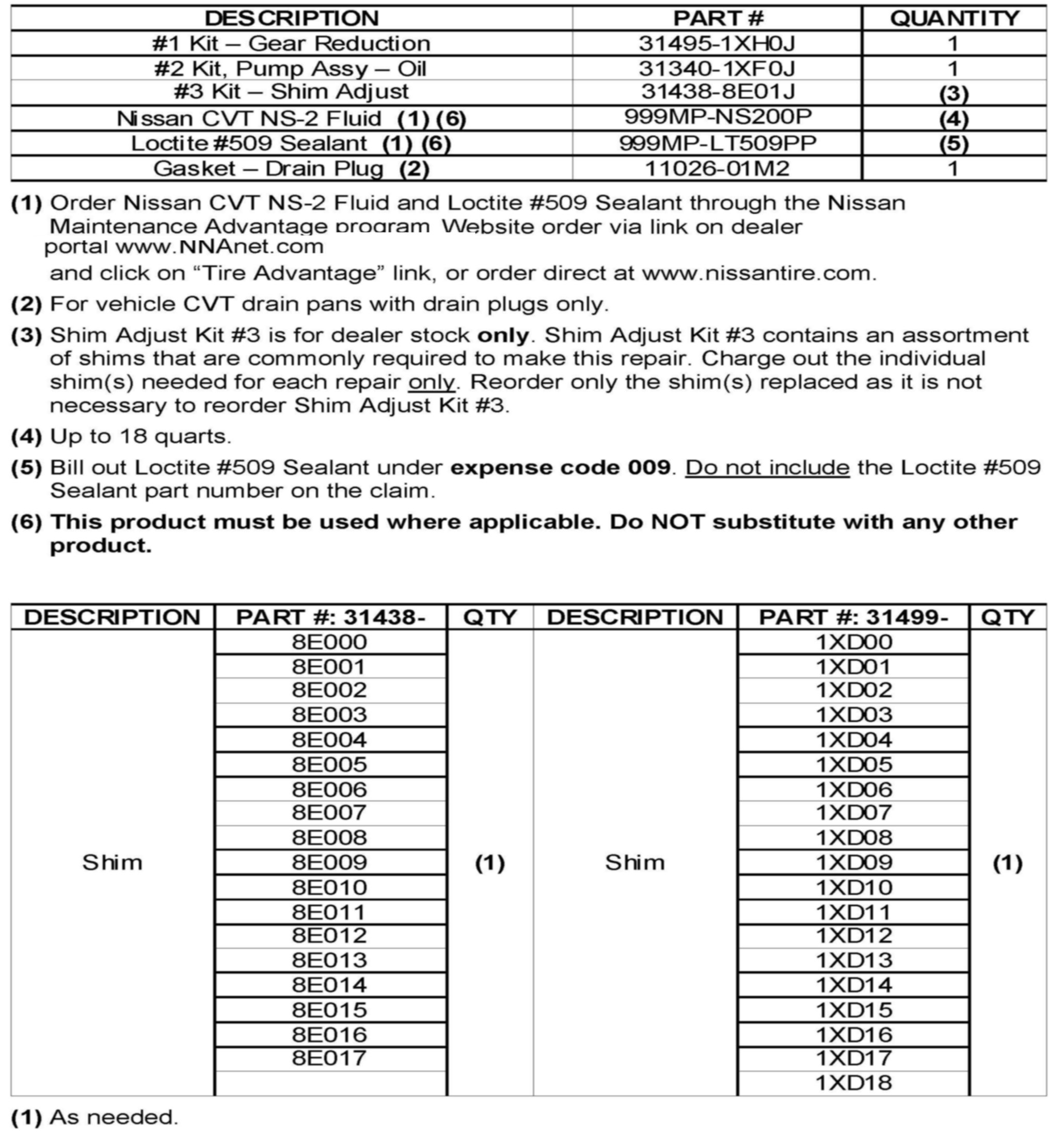

PARTS INFORMATION

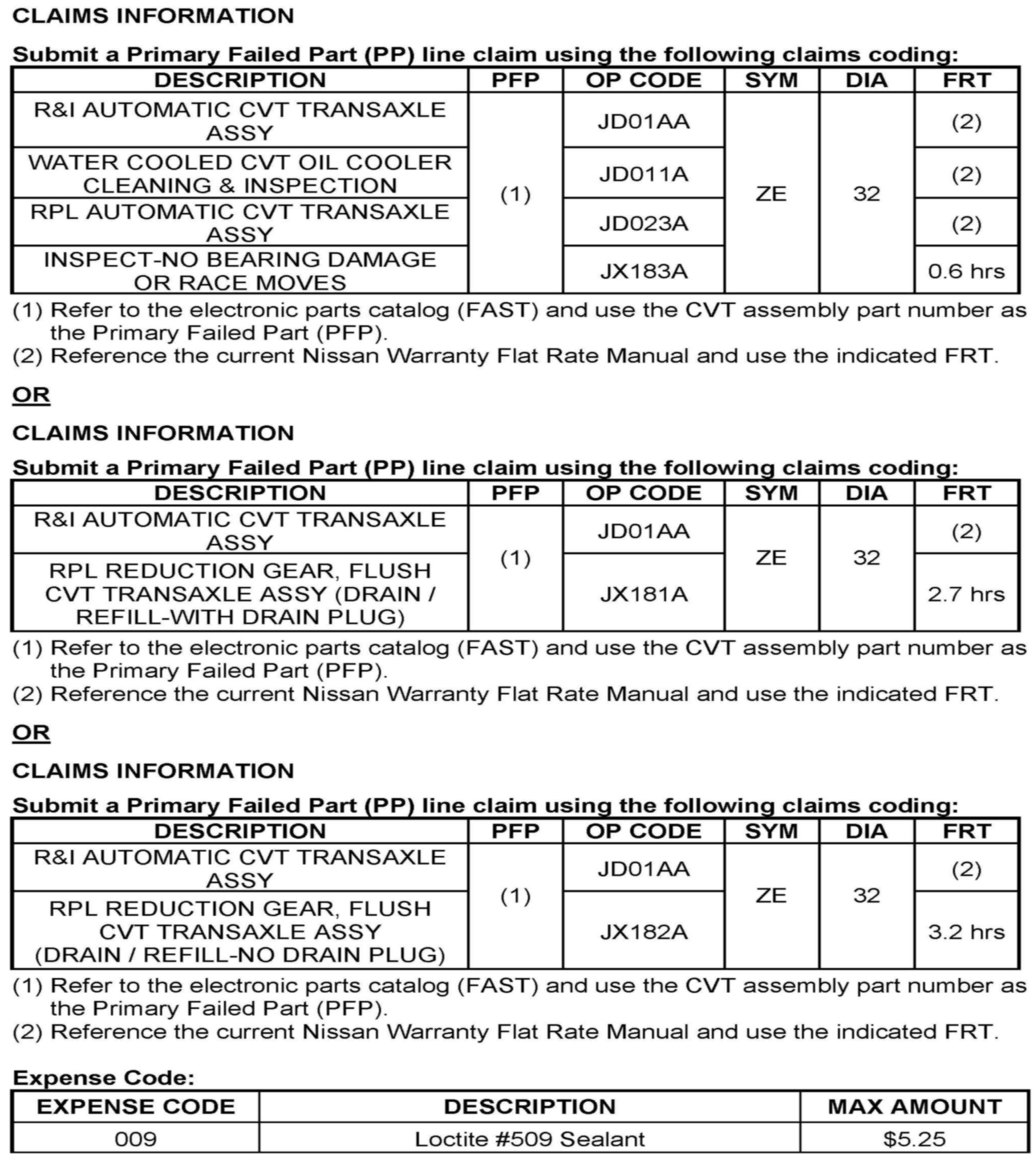

CLAIMS INFORMATION
