Lever Type





PARKING BRAKE SYSTEM


LEVER TYPE : Adjustment

1. Fully engage the control lever.





2. Loosen the parking brake cable adjusting nut and fully release the control lever.
3. Adjust clearance of the rear parking brake shoes. Refer to Removal and Installation.
4. Depress the brake pedal fully more than five times.
5. Make sure that no drag exists while rotating the rear wheel and tires.
6. Operate control lever 10 times or more with a full stroke of 99.5 mm (3.9 in).

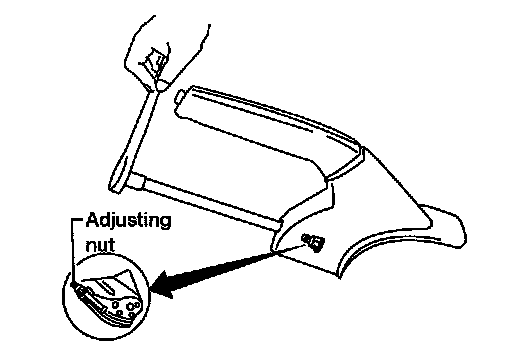

7. Adjust control lever by turning adjusting nut.
8. Pull control lever with a force of 294 N (30 kg-f, 66 lb-f). Check control lever stroke and ensure smooth operation.

Lever stroke (number of notches) : Refer to Parking Brake Control.

9. After adjustment, check that there is no drag while the control lever is being released. If drag exists, perform the following:

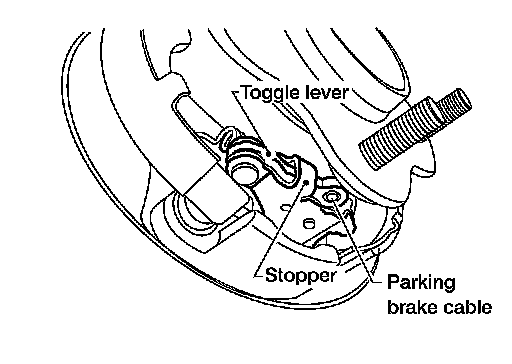

- Remove the rear disc rotor. Refer to Removal And Installation. Verify the toggle lever returns to stopper when the parking brake lever is released.
- If toggle lever does not return to stopper, loosen adjusting nut.





- Install rear disc rotor and adjust shoe clearance. Refer to Removal and Installation.
