Wiring Diagram--CVT Control System--Sedan

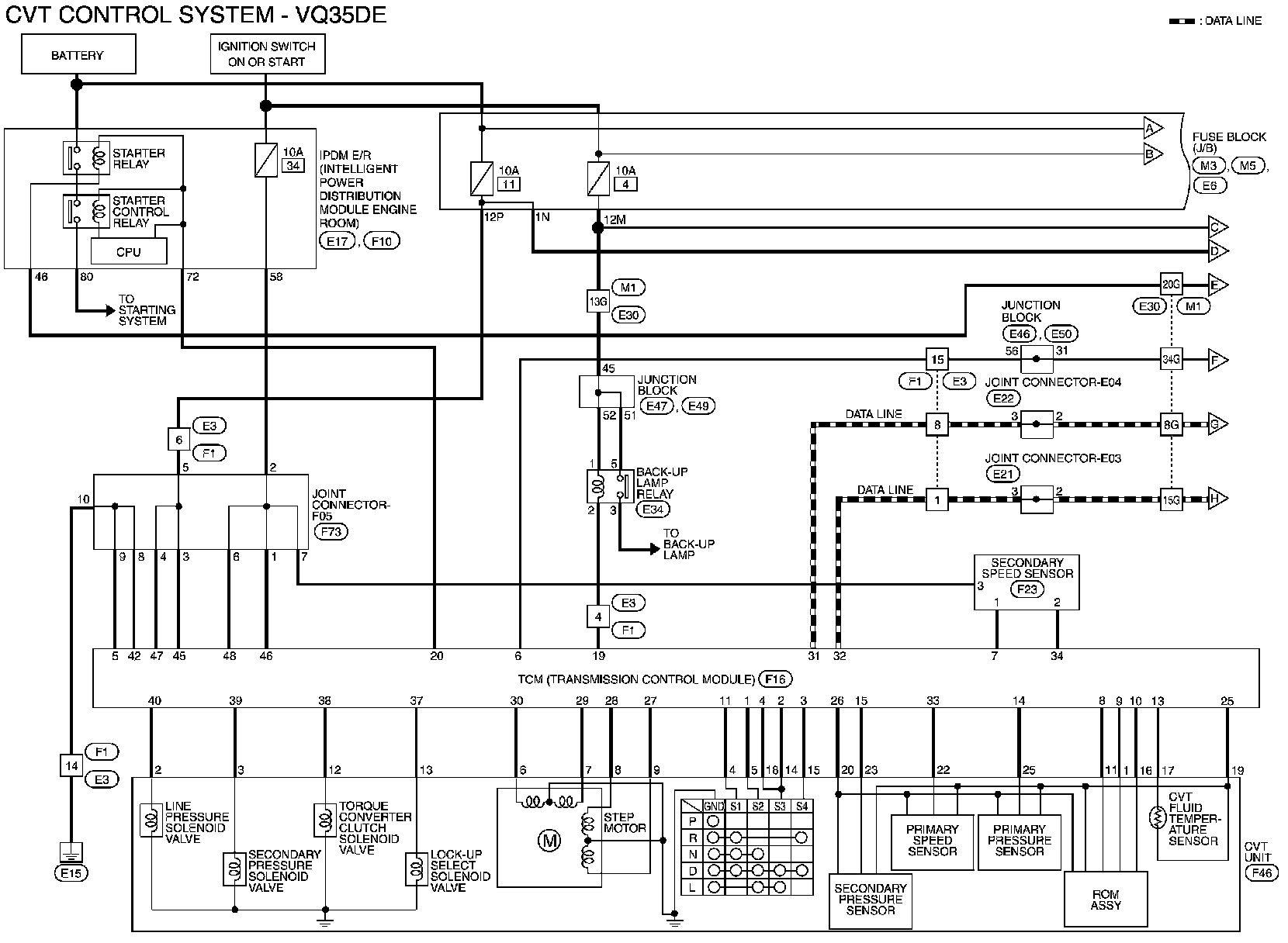

CVT Control System - Part 1:

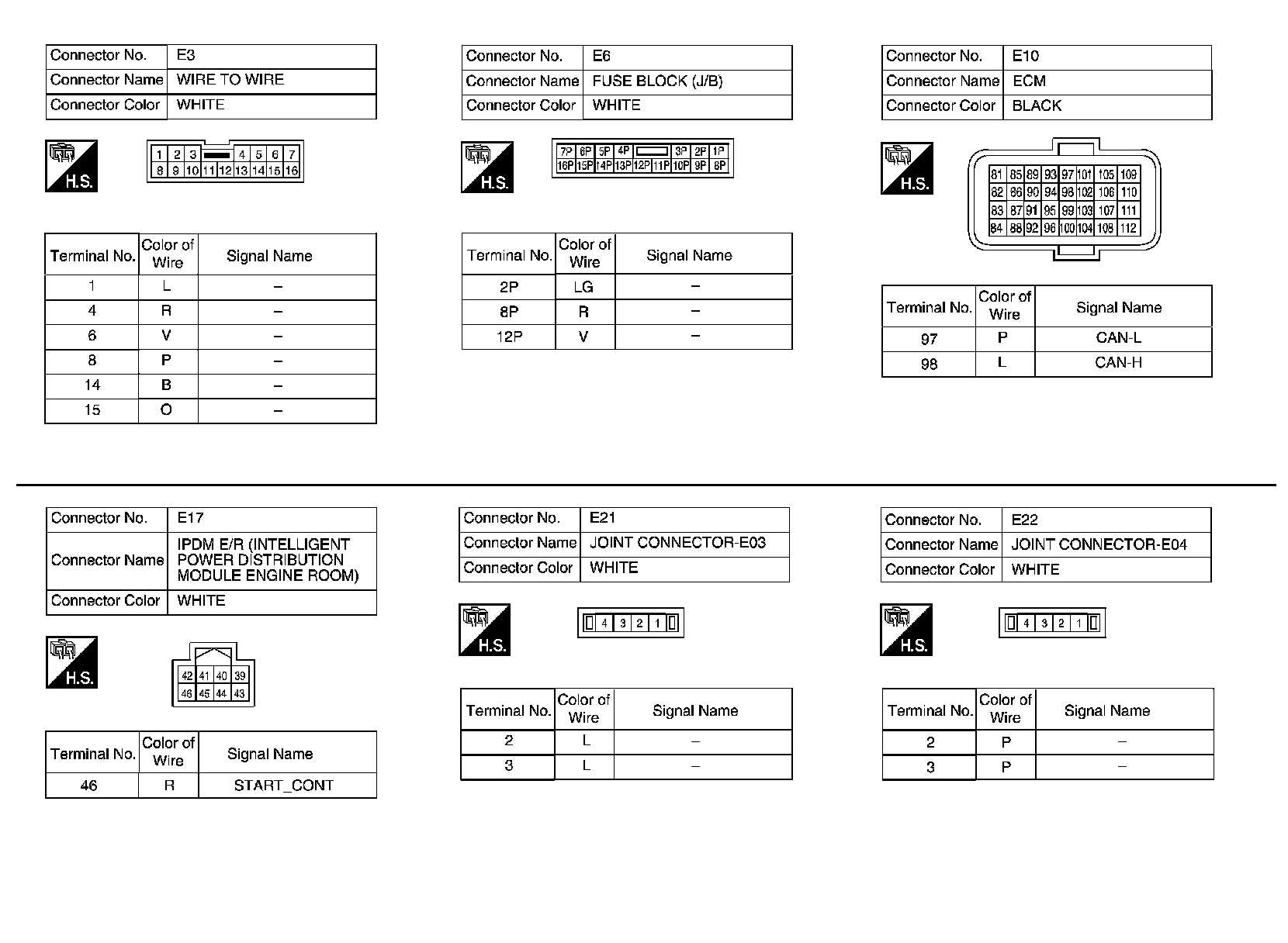

CVT Control System - Part 2:

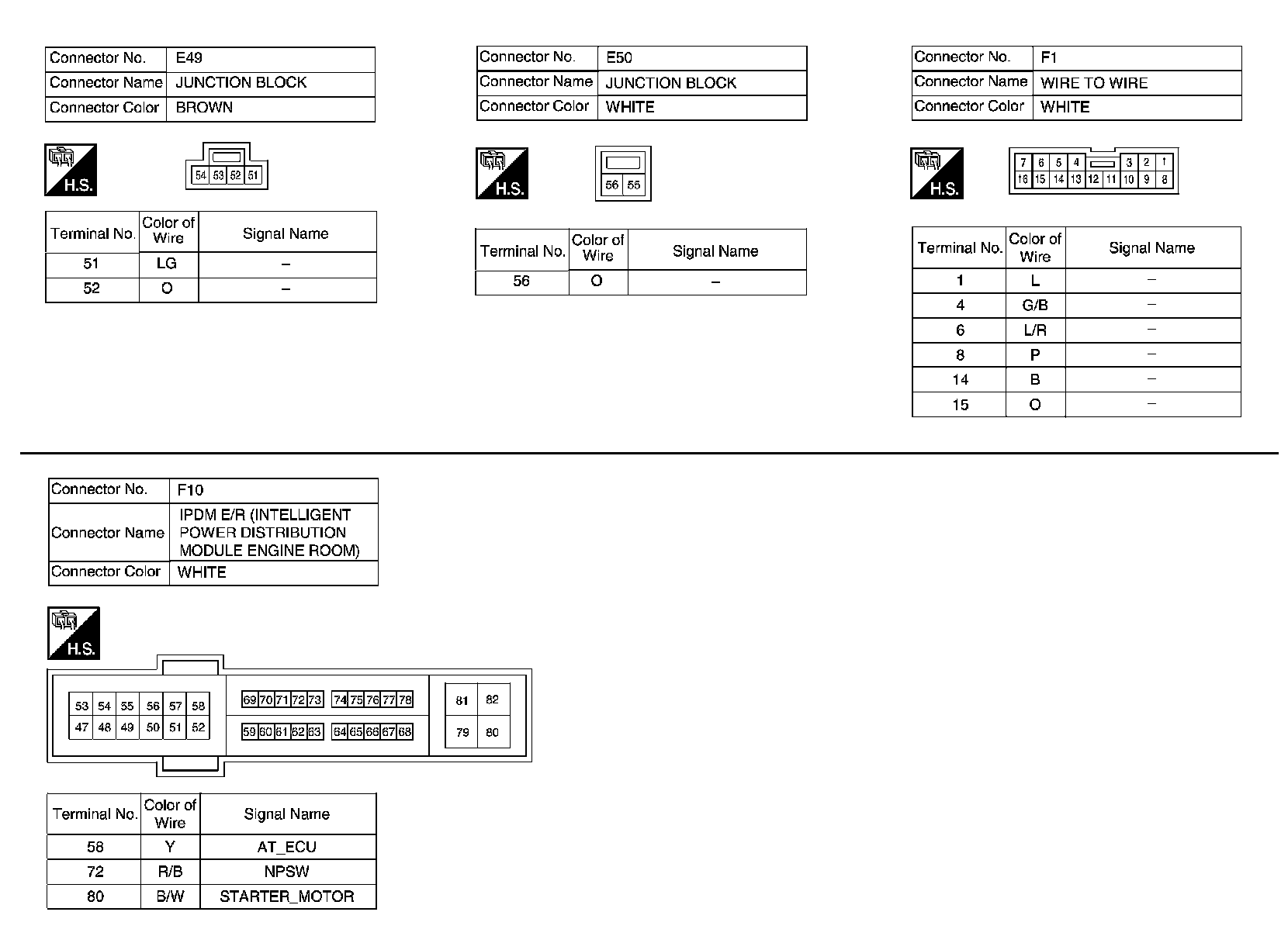

CVT Control System - Part 3:

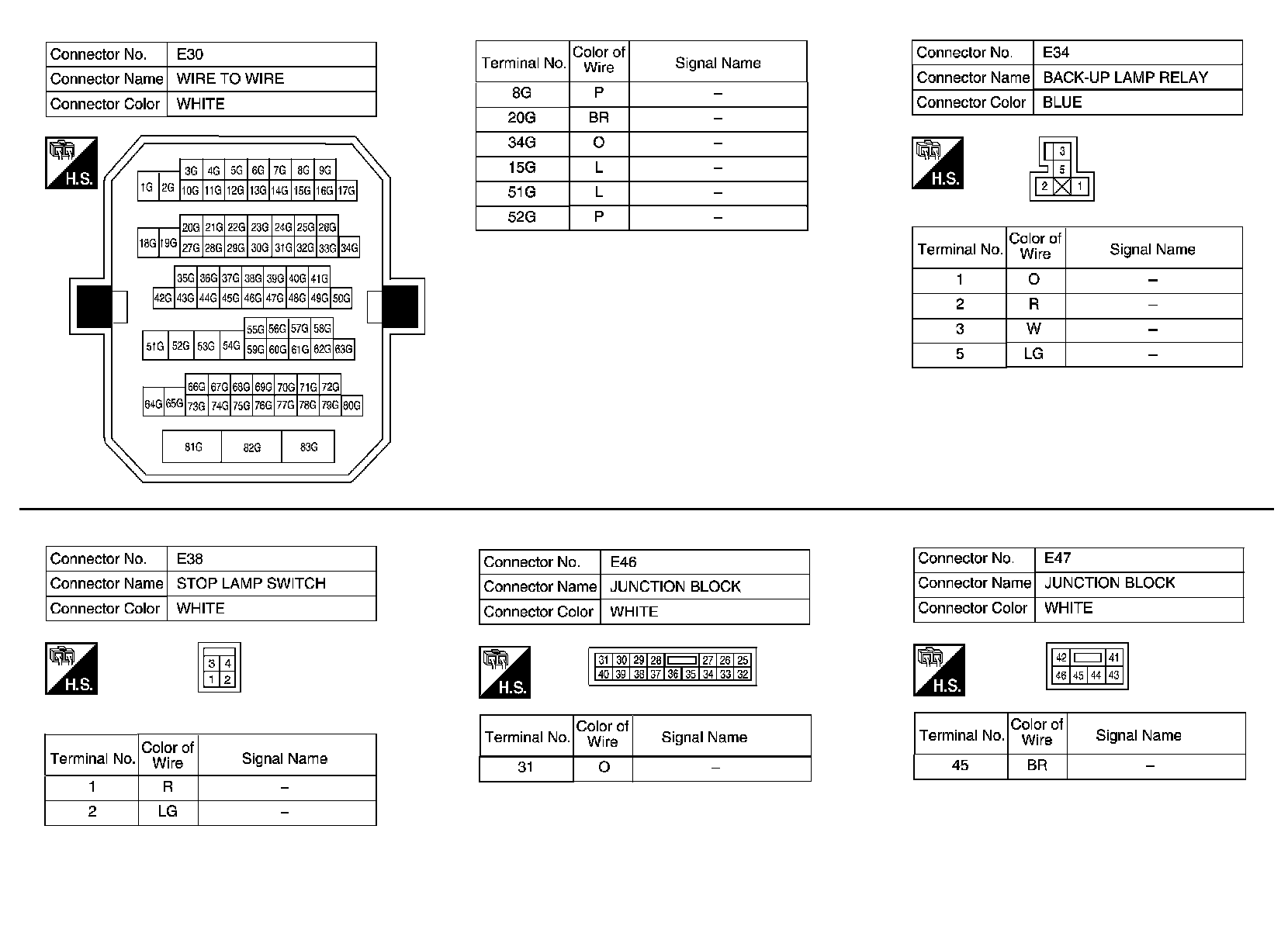

CVT Control System - Part 4:

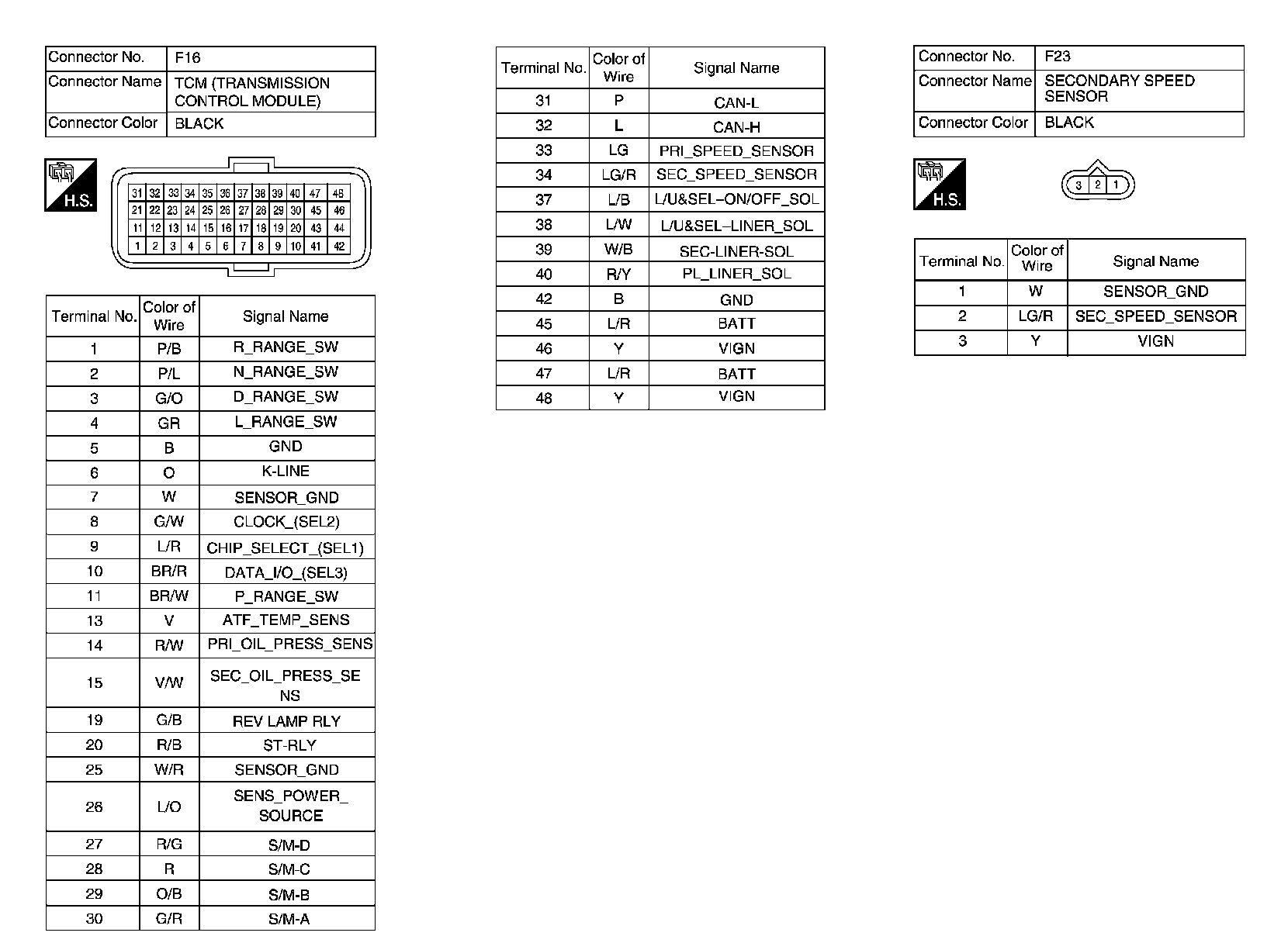

CVT Control System - Part 5:

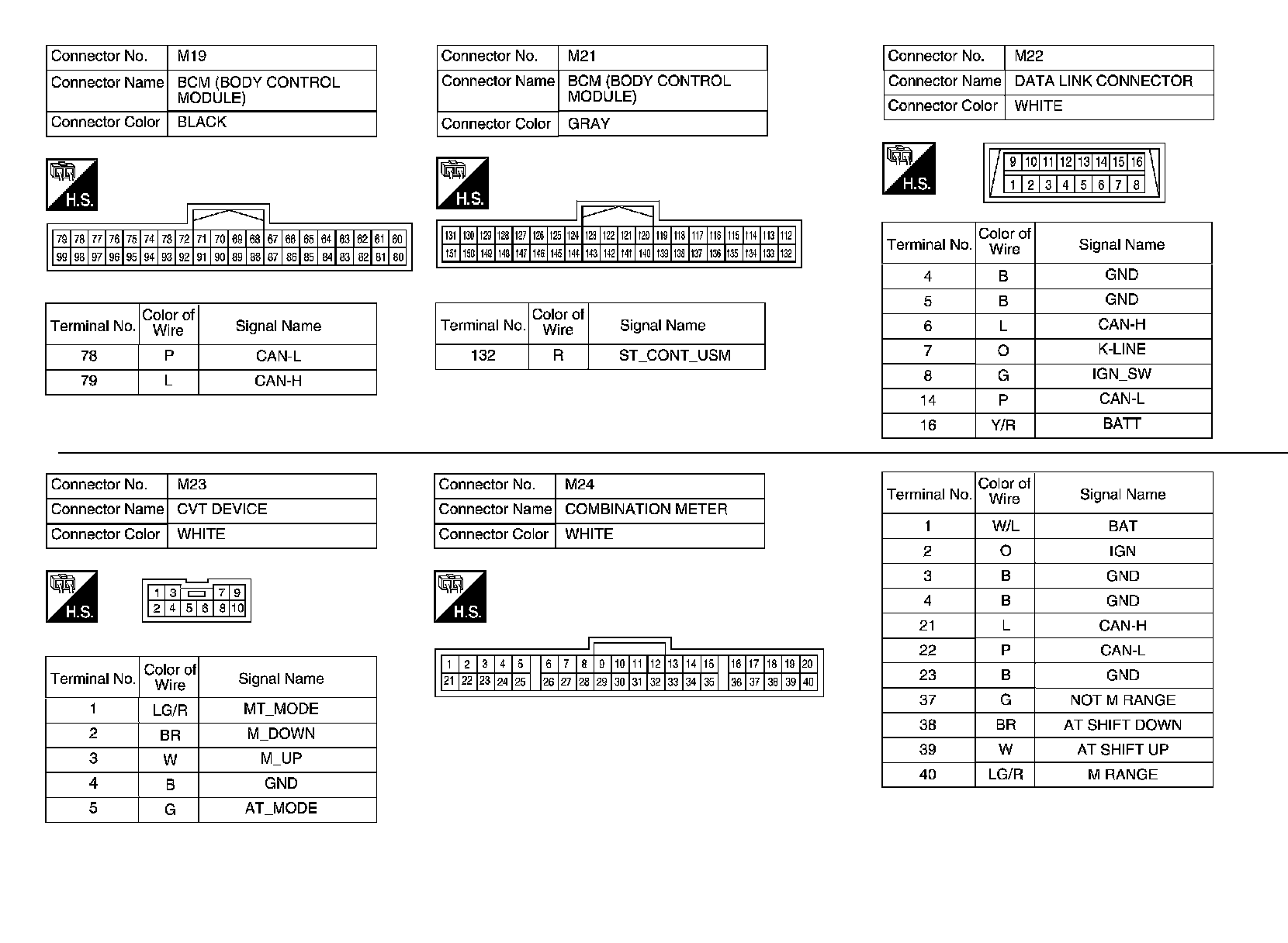

CVT Control System - Part 6:

CVT Control System - Part 7:

CVT Control System - Part 8:

CVT Control System - Part 9:
