Cylinder Head Assembly: Specifications

Cylinder Head






Cylinder Head






Install the cylinder heads on the cylinder block. Tighten the cylinder head bolts in the five steps in the numerical order as shown using Tool.

Tool Number : KV10112100 (BT-8653-A)

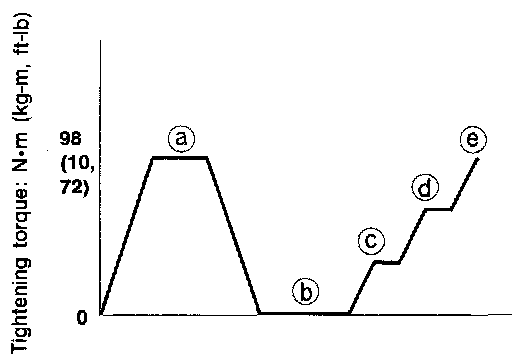

- Tightening procedure:















Head Bolt Reuse/Replace

Removal and Replacement


Intake Manifold





Install intake manifold bolts in two steps in the numerical order as shown.






Intake Manifold Collector











Camshaft Bearing Cap

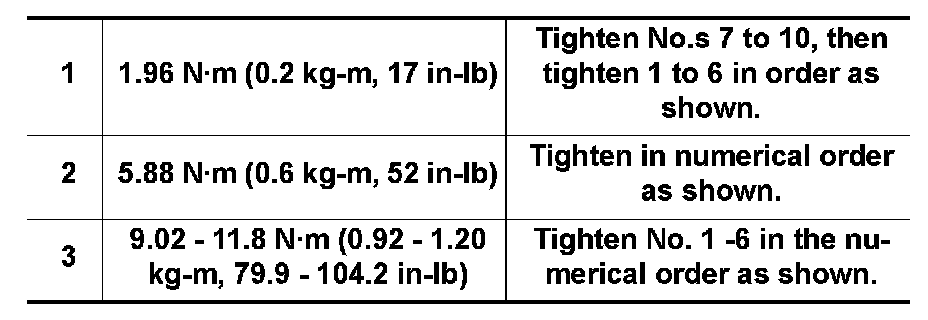

Tighten the camshaft brackets in the three steps, in numerical order as shown.














Exhaust Manifold

Left:

Install the exhaust manifold nuts in the order as shown RH (A) and LH (B).

Right:

Arrow Indicates Front.
