Main Bearing Cap

Main Bearing Cap

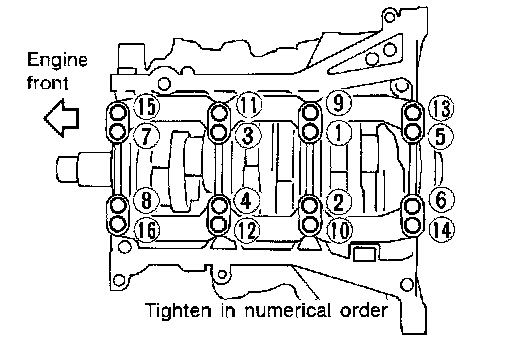

Tighten the bearing cap bolts in the numerical order as shown.

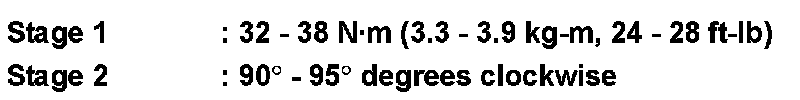

Tighten the bolts in two stages:

CAUTION: Measure the tightening angle in stage 2 using Tool. Do not measure visually.
