Fluid Pan, CVT

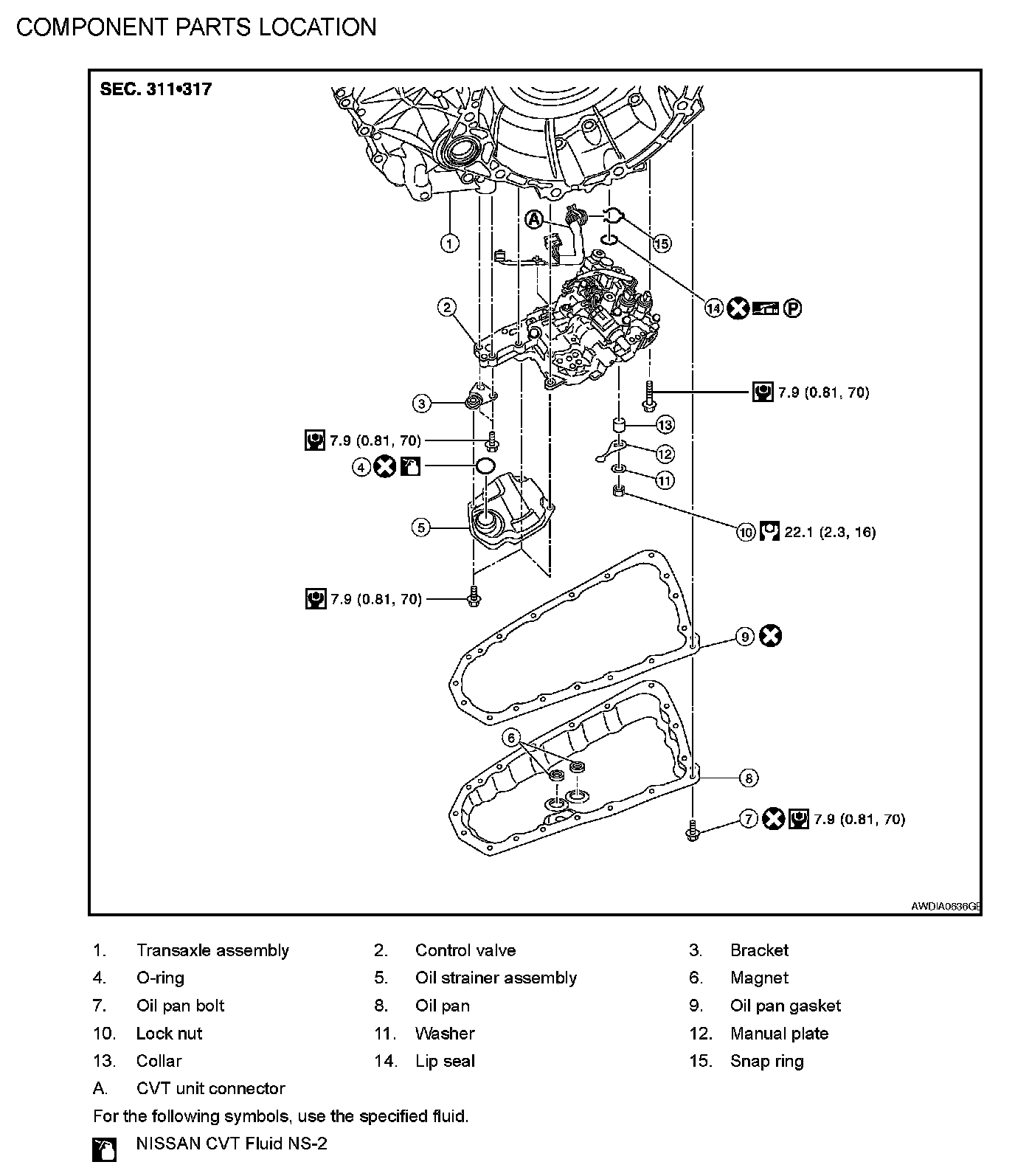

Transmission Pan

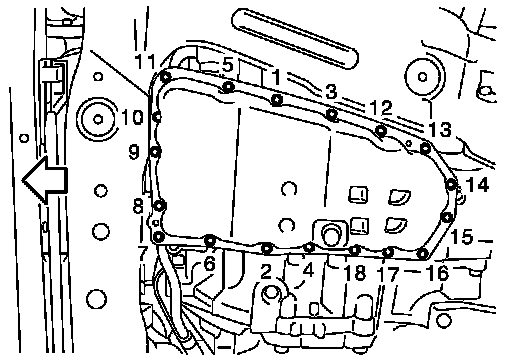

Tighten the oil pan bolts again clockwise from (1) shown the specified torque.
