Oil Pan, Engine

Oil Pan

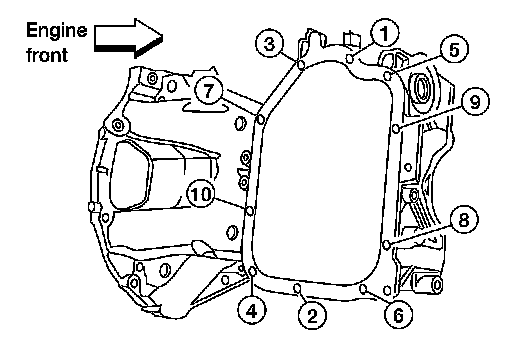

Tighten upper oil pan bolts in the order as shown.






Tighten the lower oil pan bolts in order as shown.
