LH & RH Front Anti-Pinch-Coupe

DOOR KEY CYLINDER SWITCH


Component Inspection


COMPONENT Inspection

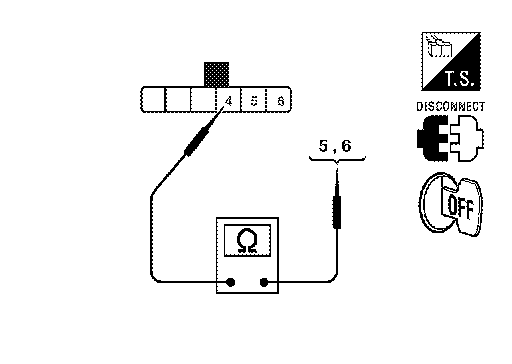

1. CHECK DOOR KEY CYLINDER SWITCH

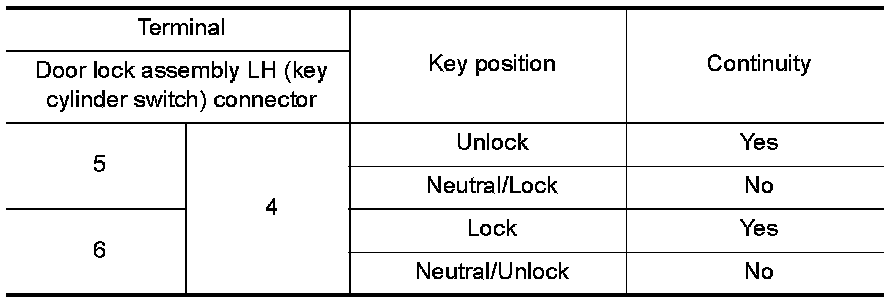

Check door lock assembly LH (key cylinder switch).





Is the Inspection result normal?
YES >> Key cylinder switch is OK.
NO >> Replace door lock assembly LH (key cylinder switch). After that, refer to LH & RH Front Anti-Pinch-Coupe.
