Windshield Washer Spray Nozzle: Adjustments

FRONT WASHER


FRONT WASHER NOZZLE : Adjustment

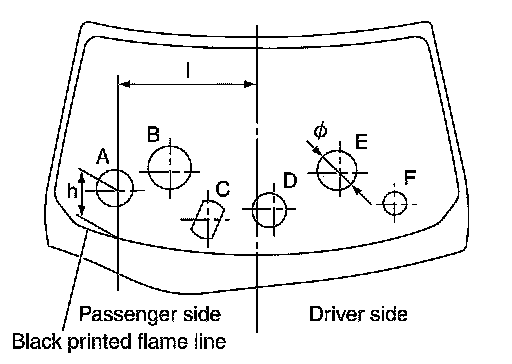

Adjust spray positions to match the positions as shown.

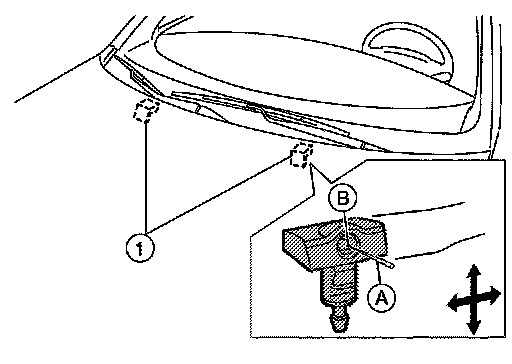

Insert a suitable tool (A) into the nozzle hole (B) and move up/down and left/right to adjust the spray position of the nozzle (1).
