Windshield Washer Spray Nozzle: Service and Repair

FRONT WASHER


FRONT WASHER NOZZLE : Removal and Installation


REMOVAL
1. Remove the cowl top cover For Sedan Refer to Sedan. For Coupe Refer to Coupe

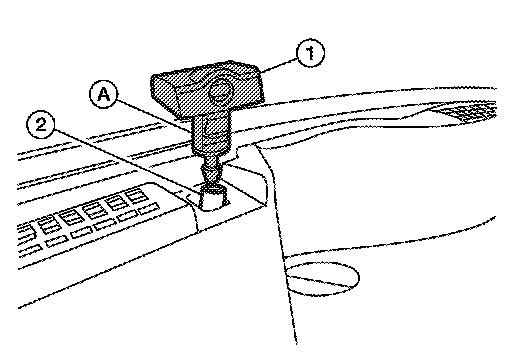

2. Push washer nozzle tab (A), to release the washer nozzle (1) from the cowl top cover, then disconnect the washer nozzle hose (2).

INSTALLATION
1. Installation is in the reverse order of removal.
2. Adjust nozzle spray location. Refer to Adjustments.
