Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2009
>>
Cube L4-1.8L (MR18DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
Body Harness
Body Harness
Body Harness (LH Side)

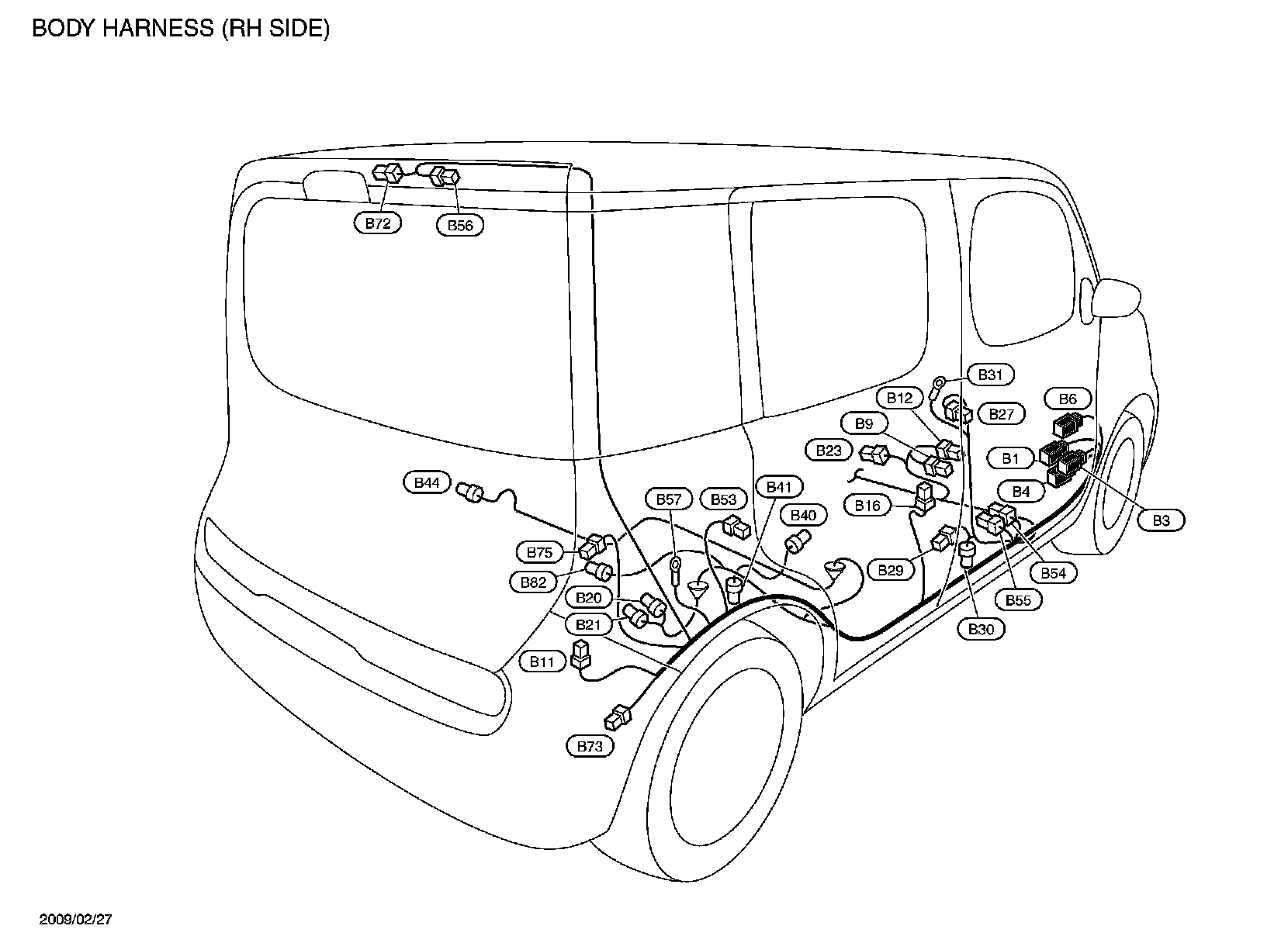

Body Harness (RH Side)
