Continuously Variable Transmission/Transaxle, CVT
Continuously Variable Transmission/Transaxle, CVT
SHIFT LOCK SYSTEM

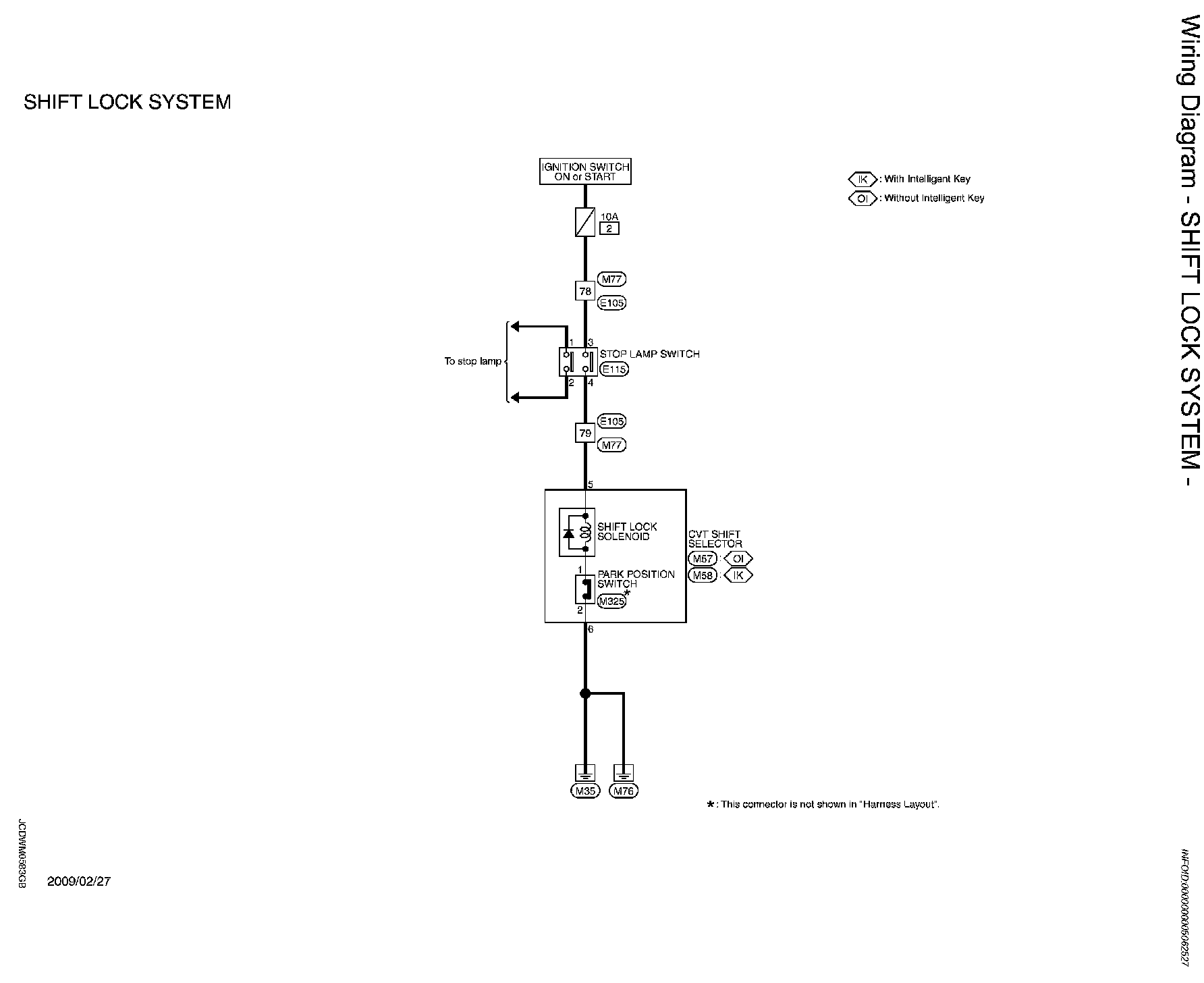

Wiring Diagram - SHIFT LOCK SYSTEM -
Shift Interlock System - Part 1:
Shift Interlock System - Part 2:
