B2608

B2608 STARTER RELAY





Description
Located in IPDM E/R, it runs the starter motor. The starter relay is turned ON by the BCM when the ignition switch is in START position. IPDM E/R transmits the starter relay ON signal to BCM via CAN communication.




DTC Logic

DTC DETECTION LOGIC

NOTE:
- If DTC B2608 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to Vehicle Security System.
- If DTC B2608 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to Vehicle Security System.






DTC CONFIRMATION PROCEDURE
1. PERFORM DTC CONFIRMATION PROCEDURE
1. Press the push-button ignition switch under the following conditions.
- CVT selector lever is in the P or N position.
- Depress the brake pedal.
2. Check "Self diagnostic result" with CONSULT-III.
Is DTC detected?
YES - Refer to "Diagnosis Procedure".
NO - Inspection End.




Diagnosis Procedure
1. CHECK STARTER RELAY
1. Turn ignition switch ON.





2. Check voltage between BCM harness connector and ground under the following condition.





Is the measurement value within the specification?
YES - GO TO 3.
NO - GO TO 2.
2. CHECK STARTER RELAY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM harness connector M21 and IPDM E/R harness connector E17.





3. Check continuity between IPDM E/R harness connector and
BCM harness connector.

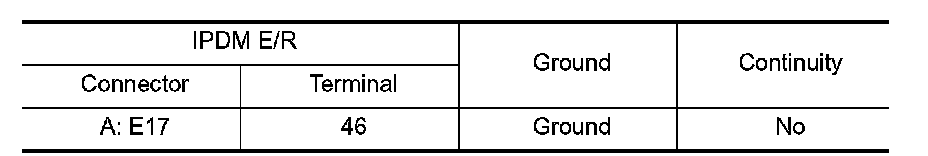

4. Check continuity between IPDM E/R harness connector and ground.





Is the inspection result normal?
YES - Replace IPDM E/R. Refer to IPDM E/R (Intelligent Power Distribution Module Engine Room).
NO - Repair harness or connector.
3. CHECK INTERMITTENT INCIDENT
Refer to Intermittent Incident.
Inspection End.
