P0778

P0778 PRESSURE CONTROL SOLENOID B ELECTRICAL (SEC PRESSURE SOLENOID VALVE)





Description
The pressure control solenoid valve B (secondary pressure solenoid valve) regulates the oil pump discharge pressure to suit the driving condition in response to a signal sent from the TCM.




DTC Logic

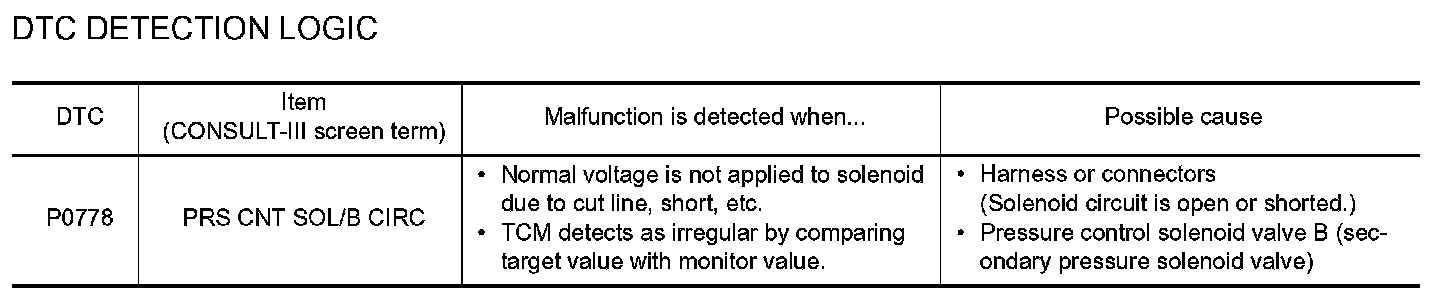

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE

CAUTION:
Always drive vehicle at a safe speed.

NOTE:
Immediately after performing any "DTC CONFIRMATION PROCEDURE", always turn ignition switch OFF.
Then wait at least 10 seconds before performing the next test.
1. CHECK DTC DETECTION
With CONSULT-III
1. Start engine.
2. Drive vehicle and maintain the following conditions for at least 5 consecutive seconds.
3. Perform "Self Diagnostic Results" in "TRANSMISSION".
With GST
Follow the procedure "With CONSULT-III".
Is "P0778 PRS CNT SOL/B CIRC" detected?
YES - Go to "Diagnosis Procedure".
NO - Check intermittent incident. Refer to Intermittent Incident.




Diagnosis Procedure
1. CHECK PRESSURE CONTROL SOLENOID VALVE B (SECONDARY PRESSURE SOLENOID VALVE)
CIRCUIT





1. Turn ignition switch OFF.
2. Disconnect TCM connector.

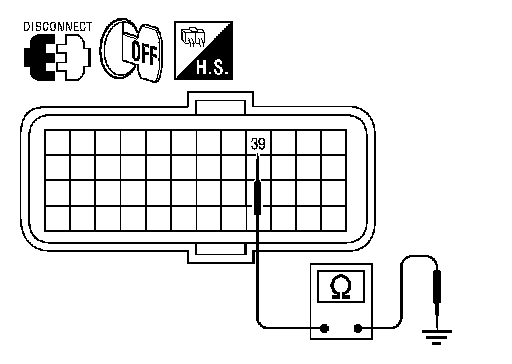

3. Check resistance between TCM vehicle side harness connector terminal and ground.





Is the inspection result normal?
YES - GO TO 5.
NO - GO TO 2.
2. CHECK HARNESS BETWEEN TCM AND PRESSURE CONTROL SOLENOID VALVE B (SECONDARY
PRESSURE SOLENOID VALVE) (PART 1)





1. Disconnect CVT unit connector.

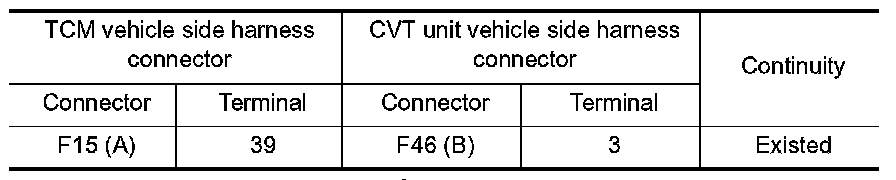

2. Check continuity between TCM vehicle side harness connector terminal and CVT unit vehicle side harness connector terminal.





Is the inspection result normal?
YES - GO TO 3.
NO - Repair or replace damaged parts.
3. CHECK HARNESS BETWEEN TCM AND PRESSURE CONTROL SOLENOID VALVE B (SECONDARY
PRESSURE SOLENOID VALVE) (PART 2)

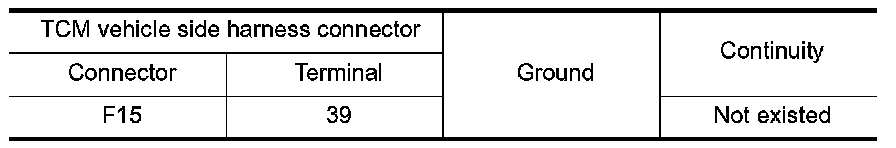

Check continuity between TCM vehicle side harness connector terminal and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace damaged parts.
4. CHECK PRESSURE CONTROL SOLENOID VALVE B (SECONDARY PRESSURE SOLENOID VALVE)
Check pressure control solenoid valve B (secondary pressure solenoid valve). Refer to "Component Inspection [Pressure Control Solenoid Valve B (Secondary Pressure Solenoid Valve)]".
Is the inspection result normal?
YES - GO TO 5.
NO - Replace transaxle assembly. Refer to Exploded View.
5. DETECT MALFUNCTIONING ITEMS
Check TCM connector pin terminals for damage or loose connection with harness connector.
Is the inspection result normal?
YES - Replace TCM. Refer to Exploded View.
NO - Repair or replace damaged parts.




Component Inspection [Pressure Control Solenoid Valve B (Secondary Pressure Solenoid Valve)]
1. CHECK PRESSURE CONTROL SOLENOID VALVE B (SECONDARY PRESSURE SOLENOID VALVE)

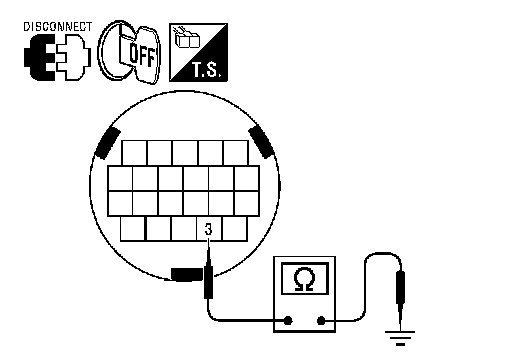

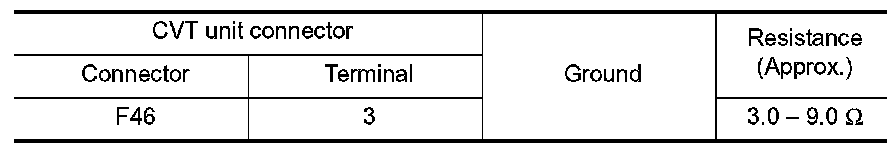

Check resistance between CVT unit connector terminal and ground.





Is the inspection result normal?
YES - INSPECTION END
NO - Replace transaxle assembly. Refer to Exploded View.
