P1745

P1745 LINE PRESSURE CONTROL





Description
The pressure control solenoid valve A (line pressure solenoid valve) regulates the oil pump discharge pressure to suit the driving condition in response to a signal sent from the TCM.




DTC Logic

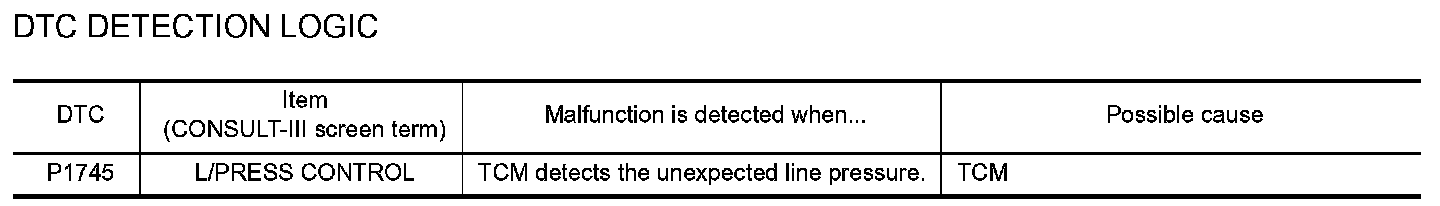

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE

NOTE:
Immediately after performing any "DTC CONFIRMATION PROCEDURE", always turn ignition switch OFF.
Then wait at least 10 seconds before performing the next test.
1. CHECK DTC DETECTION
With CONSULT-III
1. Turn ignition switch ON
2. Select "Data Monitor" in "TRANSMISSION".
3. Check that output voltage of CVT fluid temperature sensor is within the range below.

ATF TEMP SEN : 1.0 - 2.0 V
If out of range, drive the vehicle to decrease the voltage (warm up the fluid) or stop engine to increase the voltage (cool down the fluid)


Is "P1745 L/PRESS CONTROL" detected?
YES - Go to "Diagnosis Procedure".
NO - Check intermittent incident. Refer to Intermittent Incident.




Diagnosis Procedure
1. CHECK DTC
With CONSULT-III
1. Start engine.
2. Perform "Self Diagnostic Results" in "TRANSMISSION".
Is "P1745 L/PRESS CONTROL" detected?
YES - Replace TCM. Refer to Exploded View.
NO - Check intermittent incident. Refer to Intermittent Incident.
