Procedures

BRAKE FLUID


Inspection


LEVEL CHECK

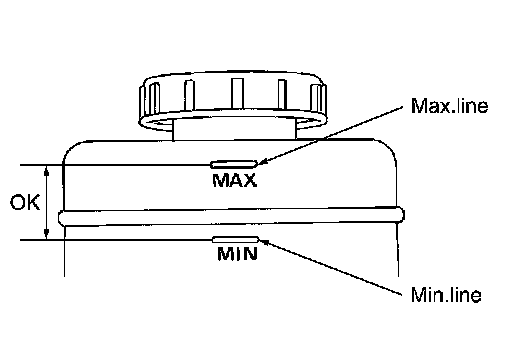

- Make sure that a brake fluid level in reservoir tank is between MAX and MIN lines as shown.





- Visually check around reservoir tank for fluid leakage.
- If the level is excessively low, check brake system for leaks.
- If brake warning lamp remains illuminated after parking brake pedal is released, check brake system for fluid leaks.
