Connectors





HARNESS


Harness Layout


HOW TO READ HARNESS LAYOUT
The following Harness Layouts use a map style grid to help locate connectors on the drawings:





- Main Harness, Console Sub-harness and Console Switch Subharness
- Engine Room Harness and Front End Module Harness
- Engine Room Harness (Passenger Compartment)
- Engine Control Harness and Knock Sensor Sub-harness
- Body Harness,LH Front Seat Harness,Tail Harness and Chassis
Harness
- Body No. 2 Harness,RH Front Seat Harness,Rear Seat Harness,Rear Parcel Shelf Harness and Tail Sub-harness
- Room Lamp Harness and Sunroof Sub-harness

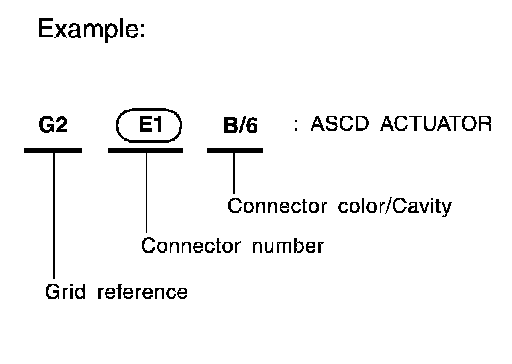

To use the grid reference

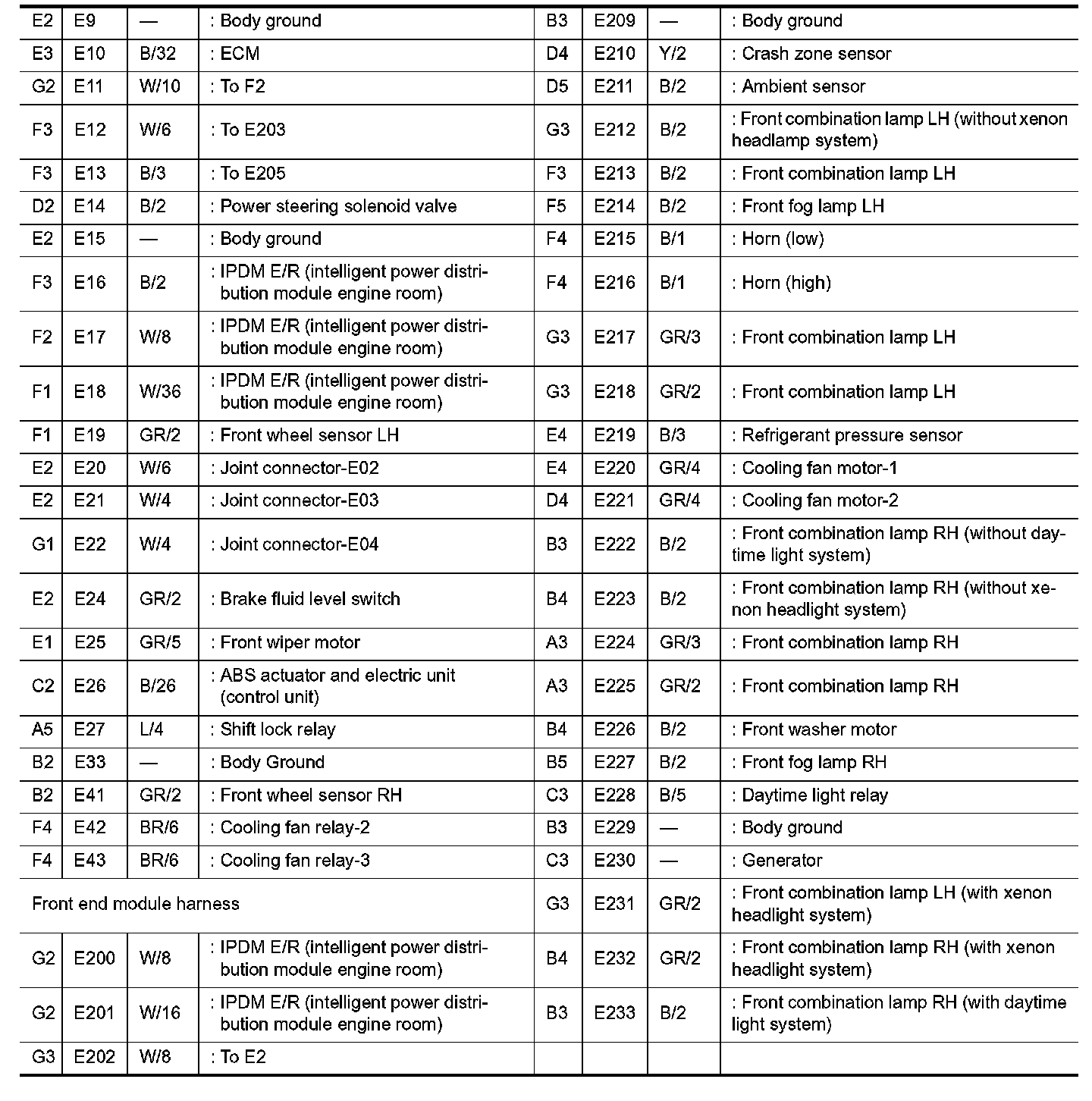

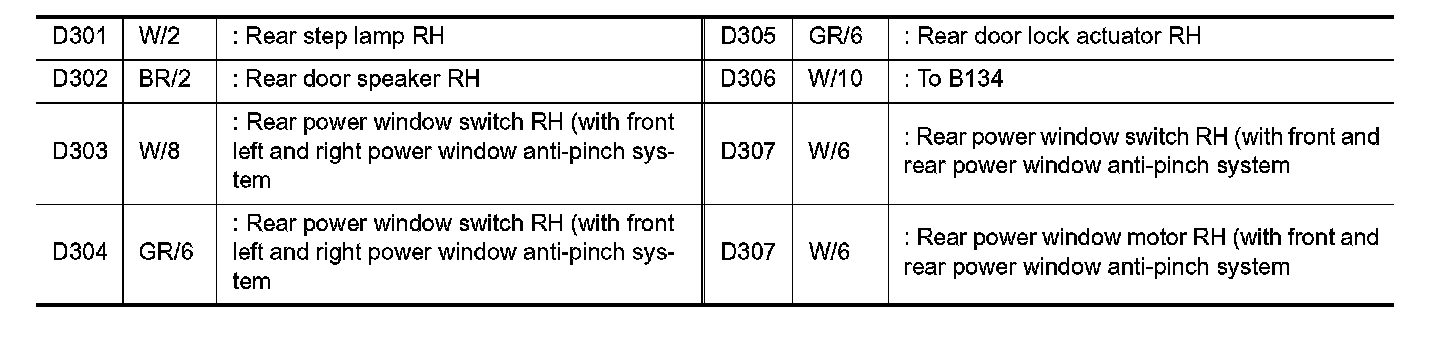

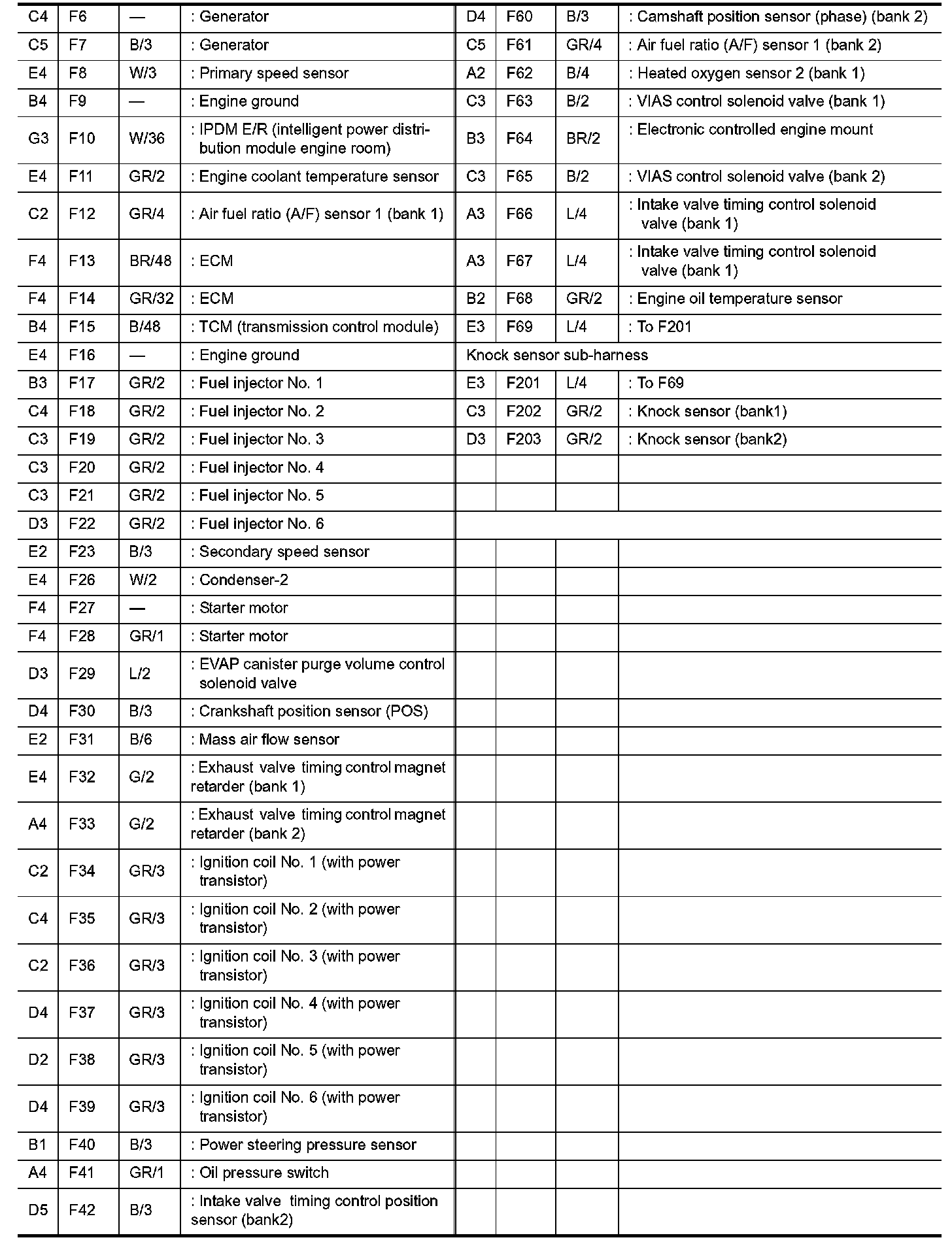

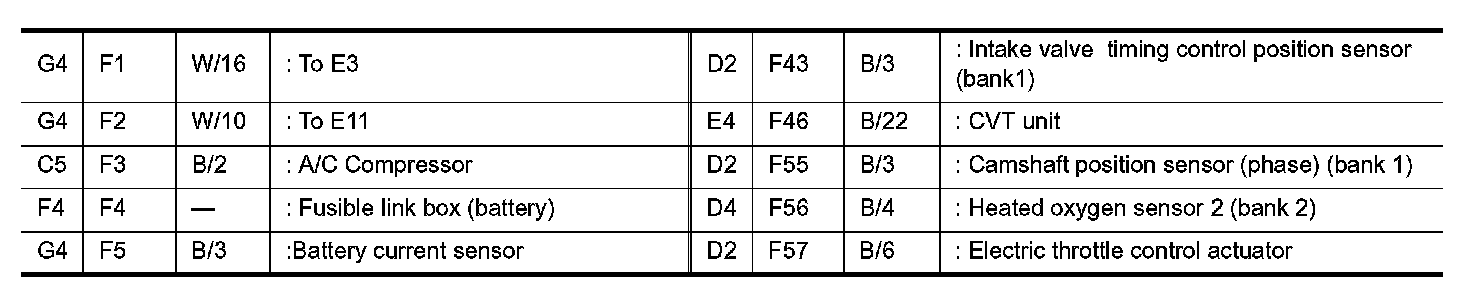

1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.

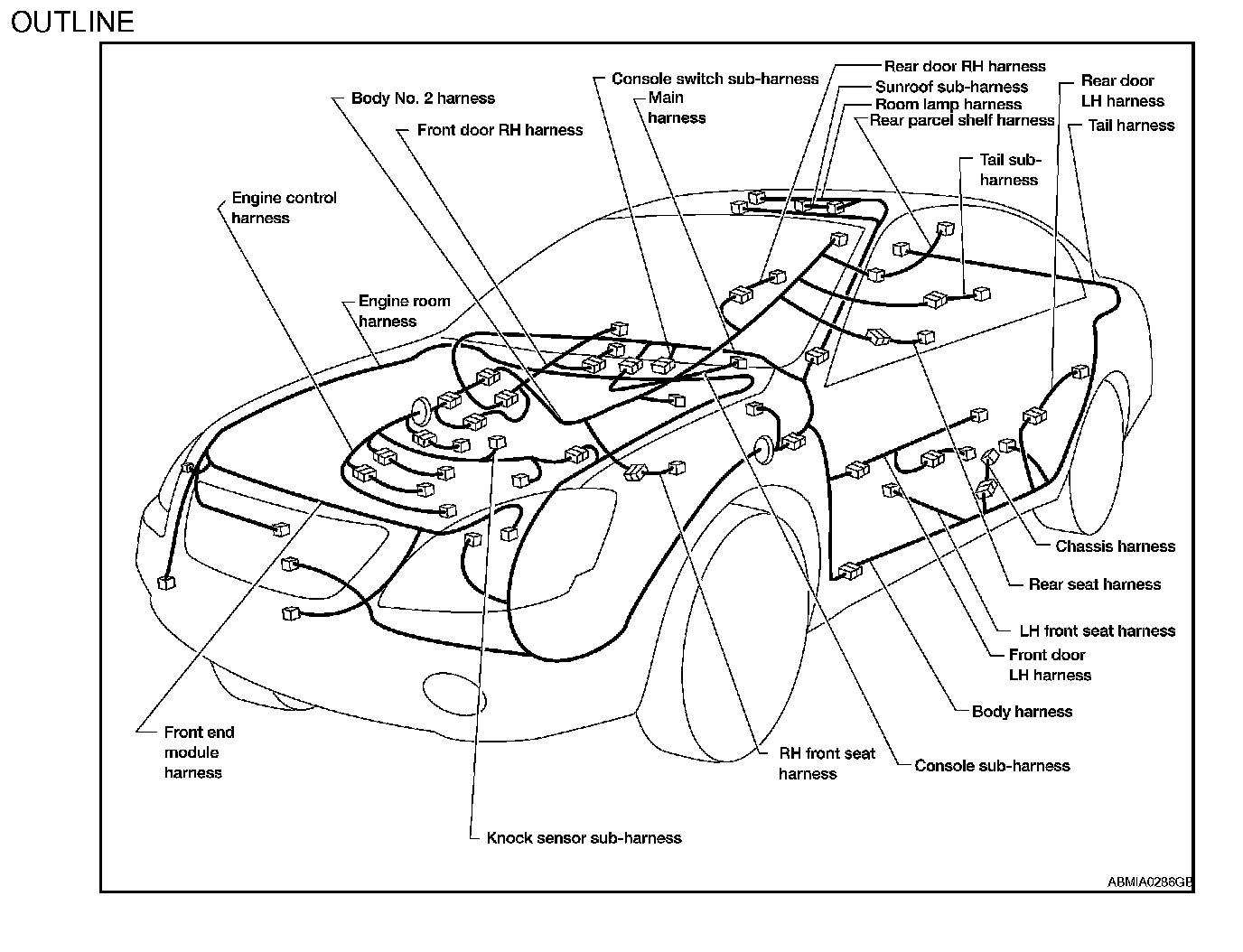

OUTLINE

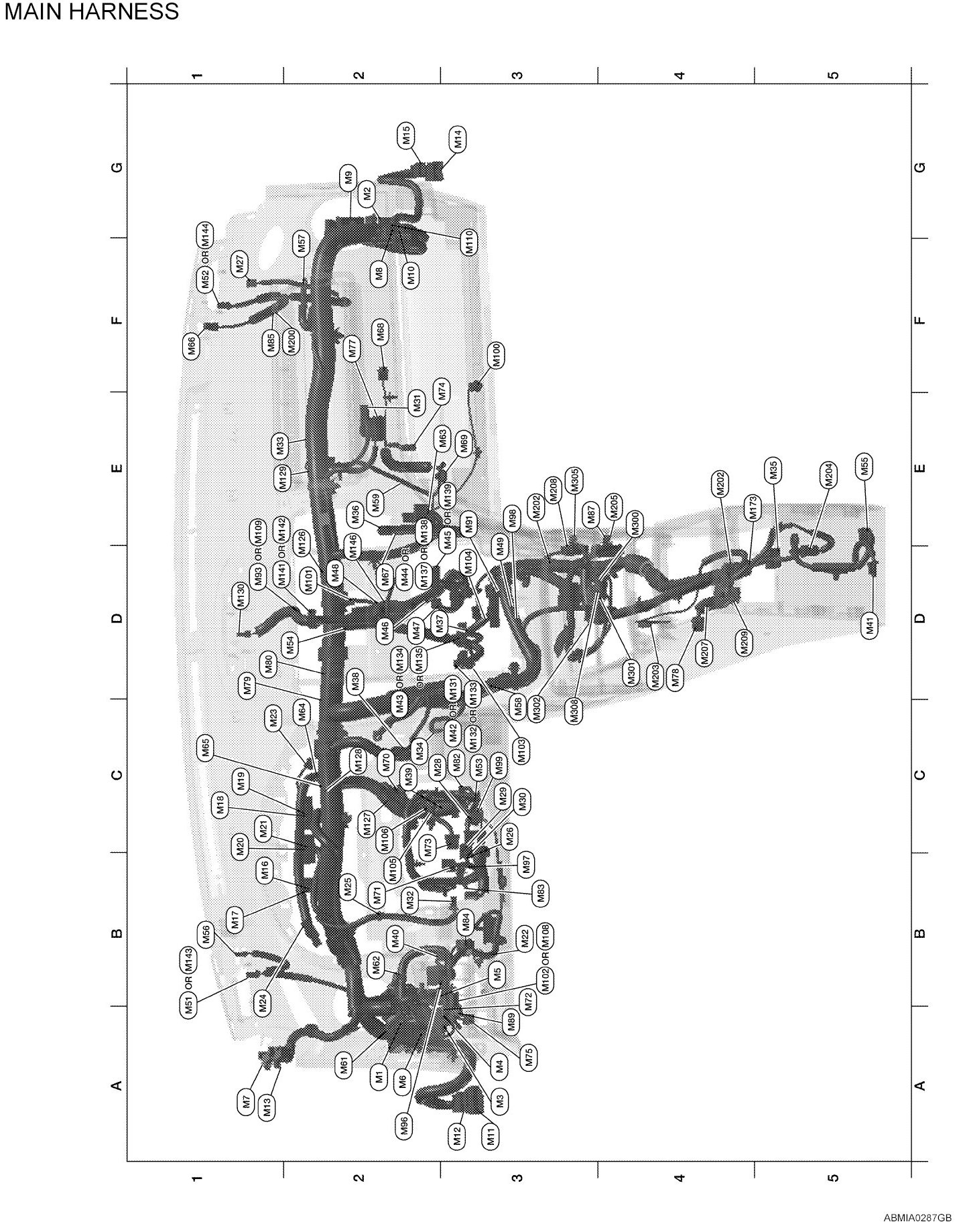

MAIN HARNESS

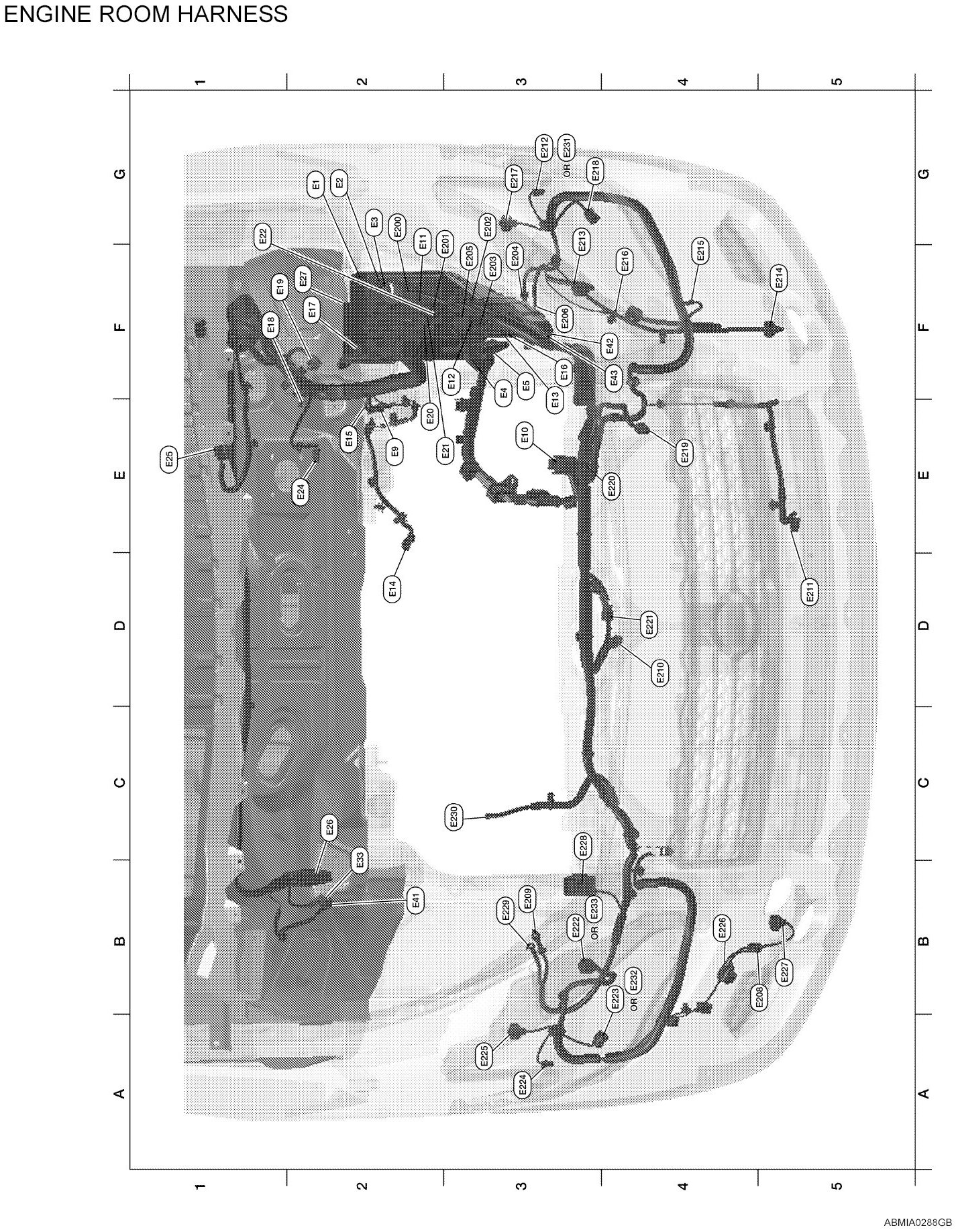

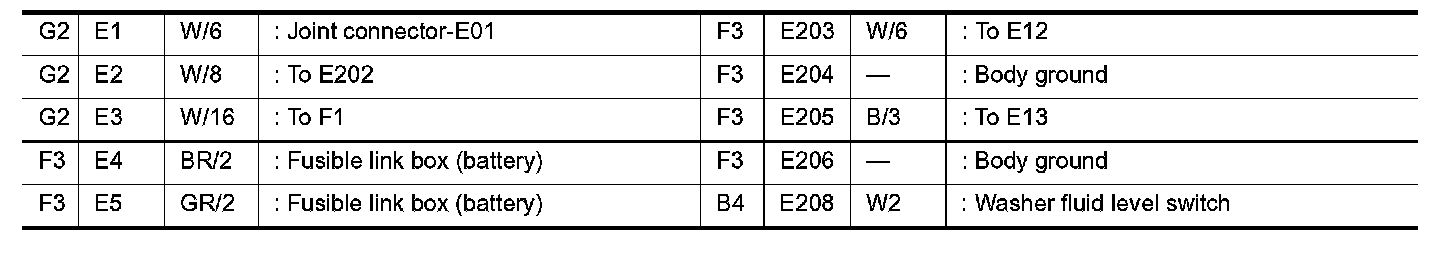

ENGINE ROOM HARNESS

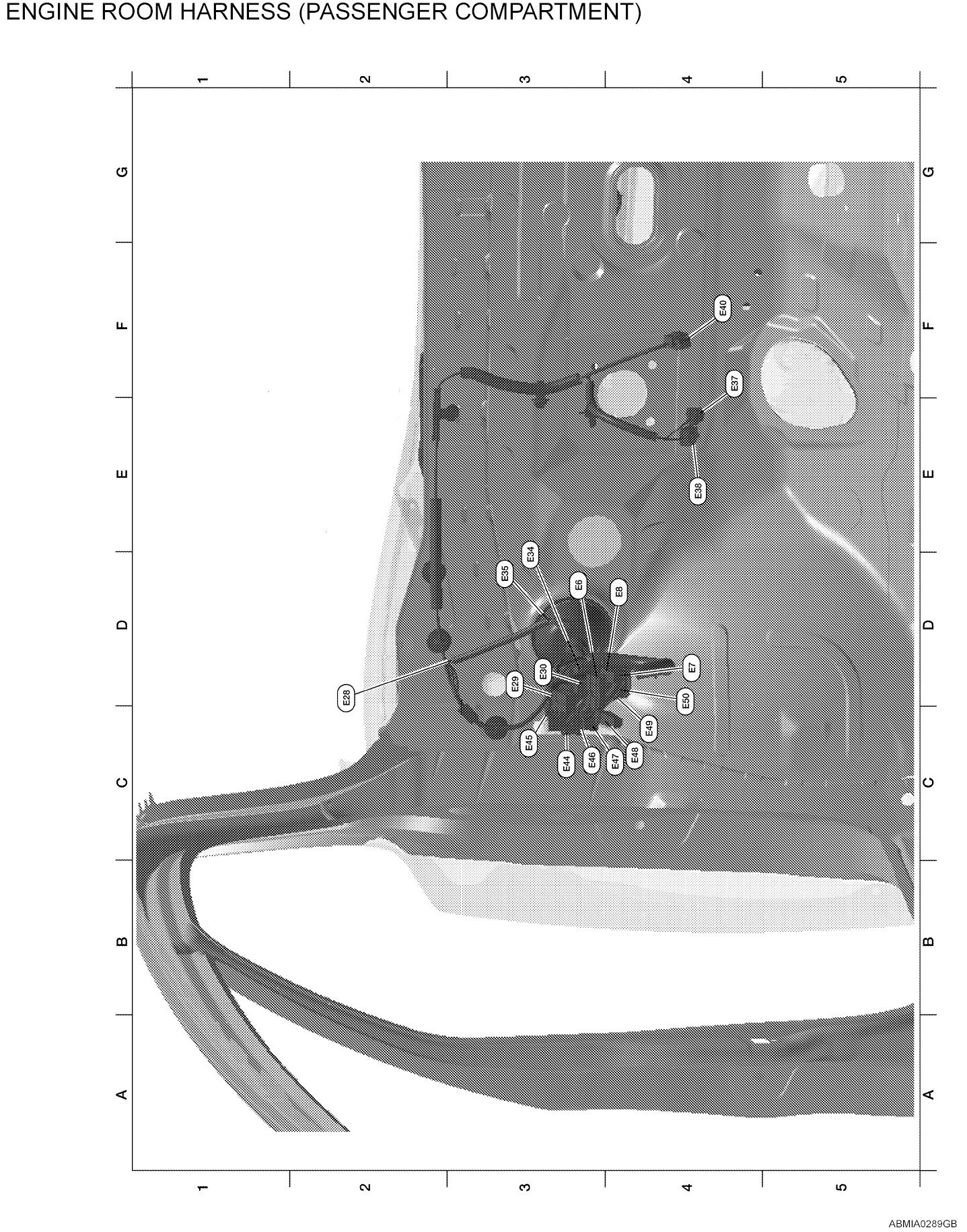

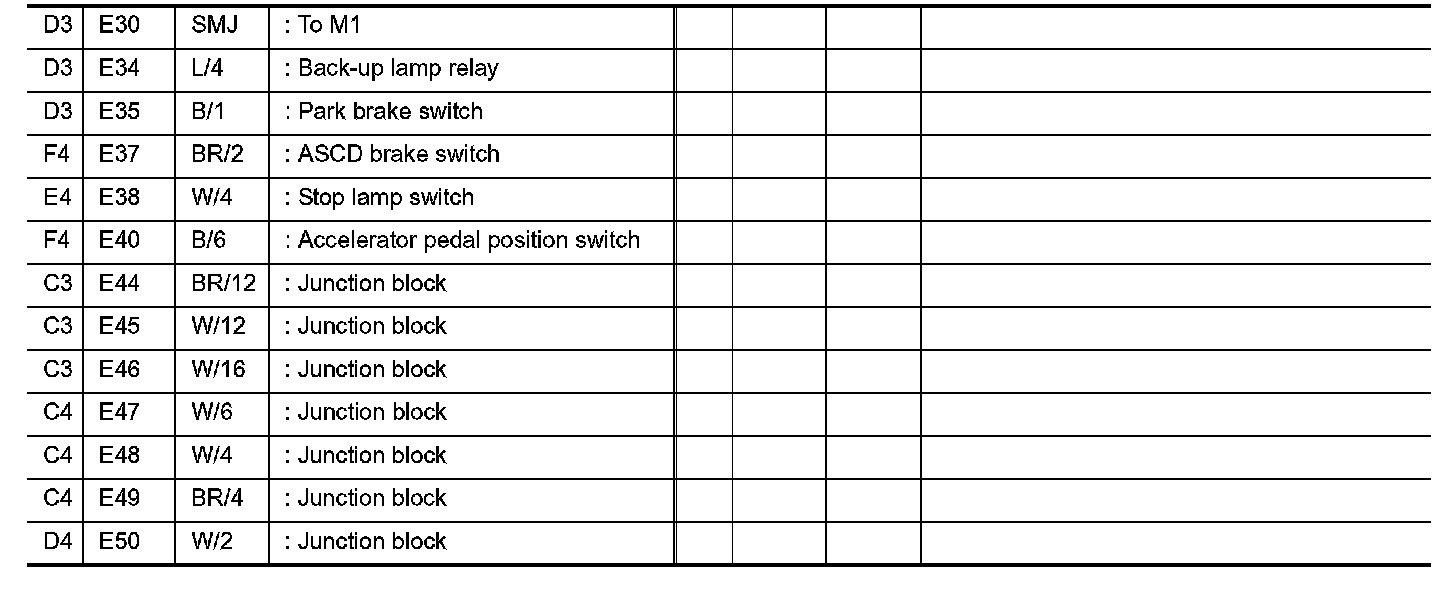

ENGINE ROOM HARNESS (PASSENGER COMPARTMENT)

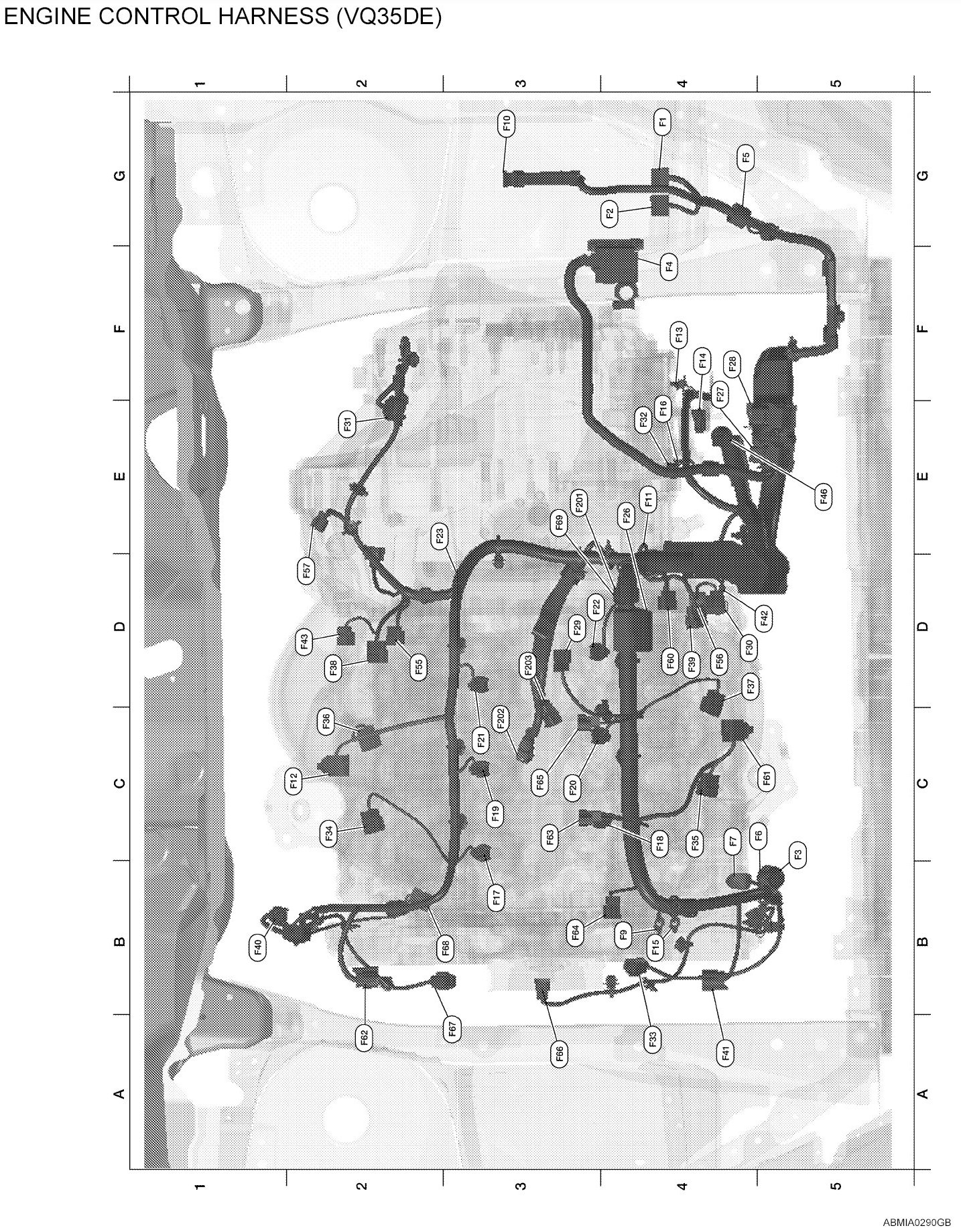

ENGINE CONTROL HARNESS (VQ35DE)
















BODY HARNESS

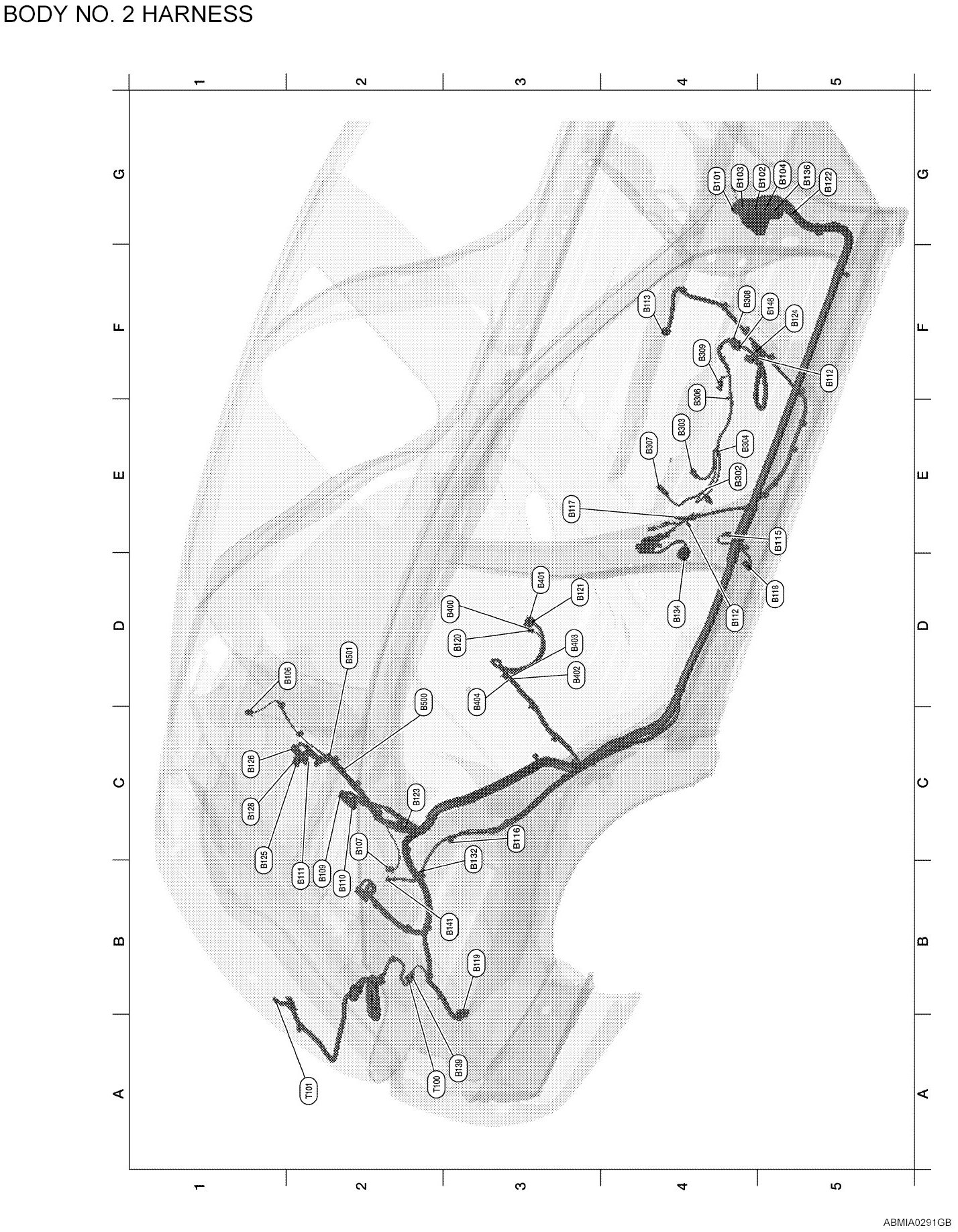

BODY NO. 2 HARNESS
















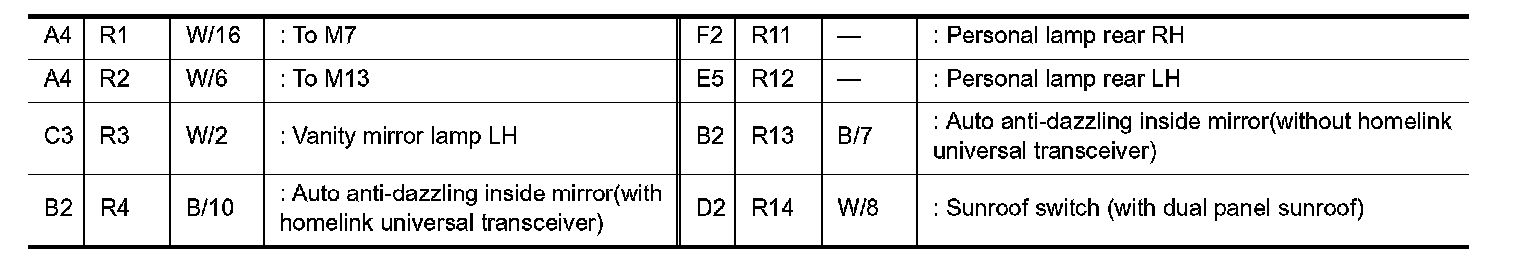

ROOM LAMP HARNESS
















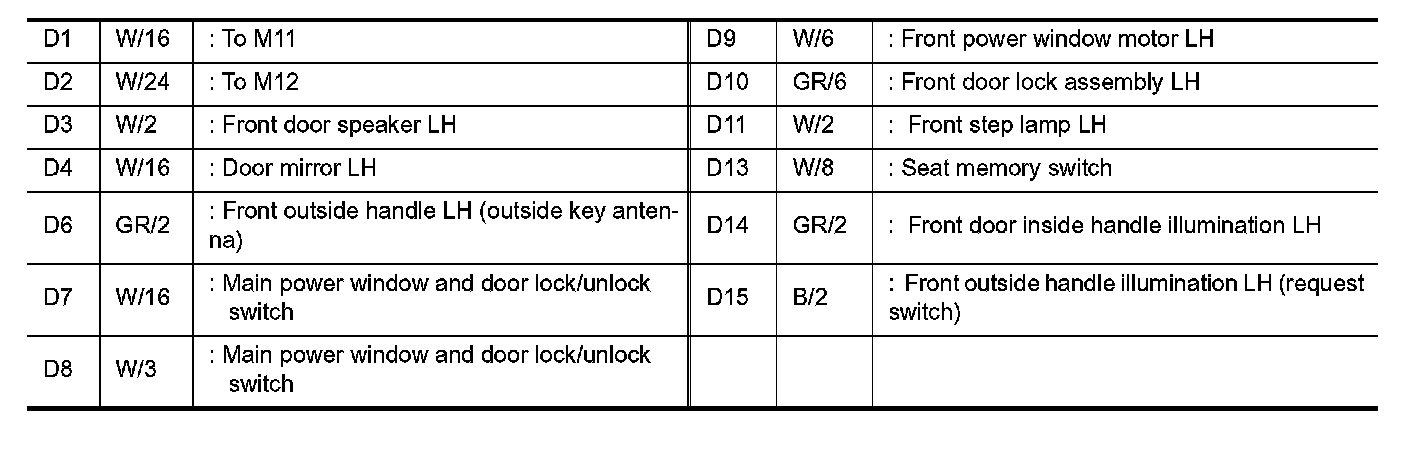

FRONT DOOR LH HARNESS

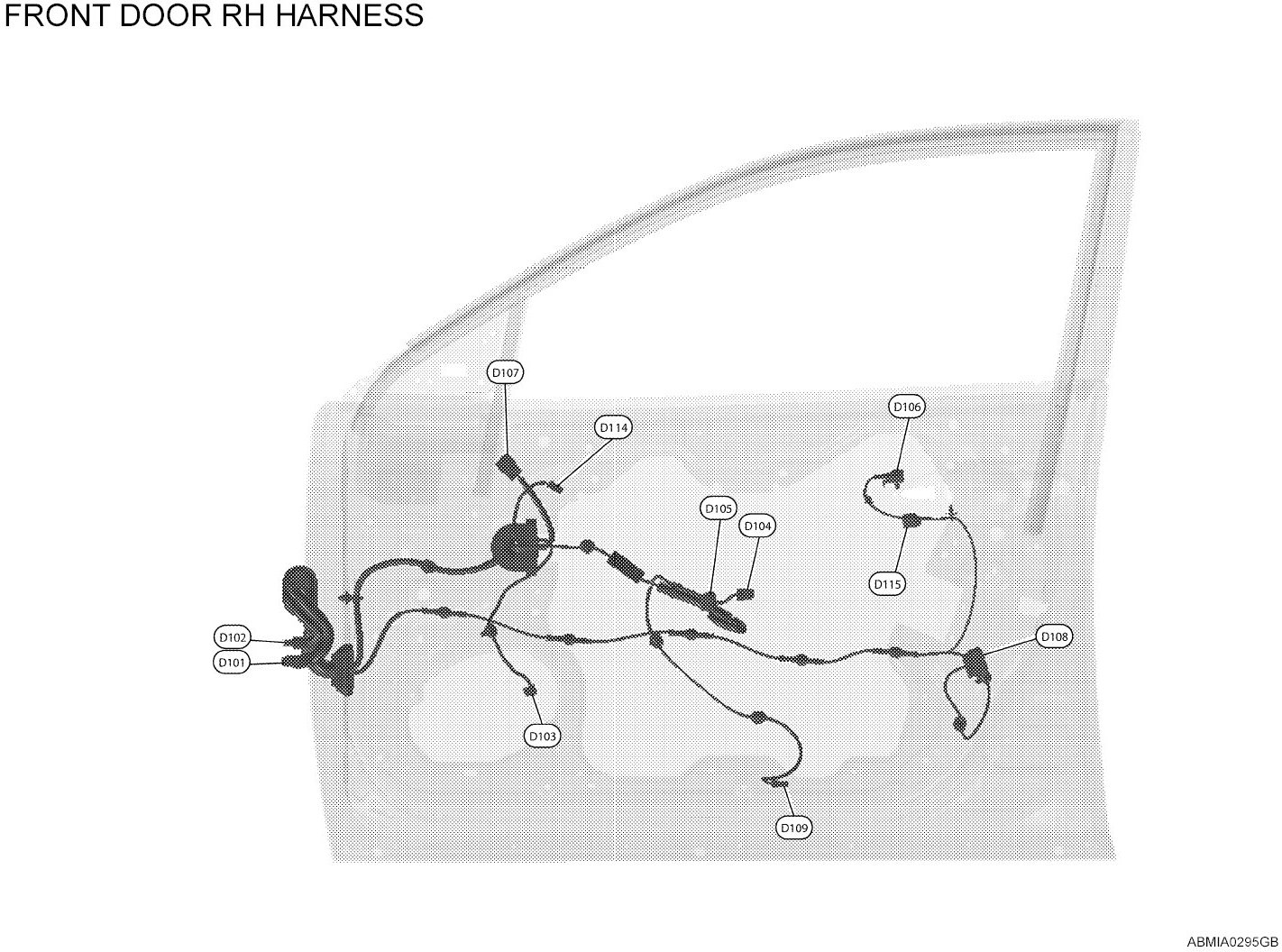

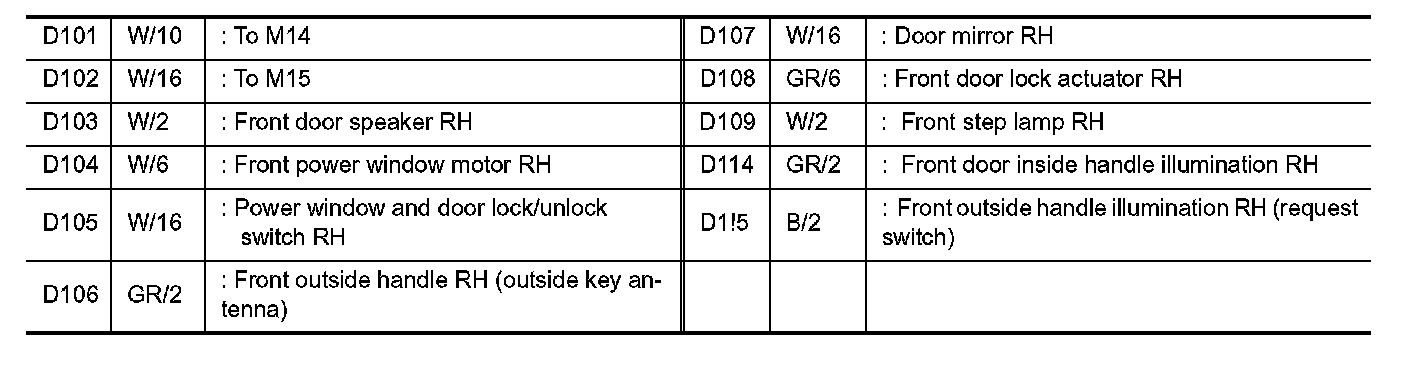

FRONT DOOR RH HARNESS











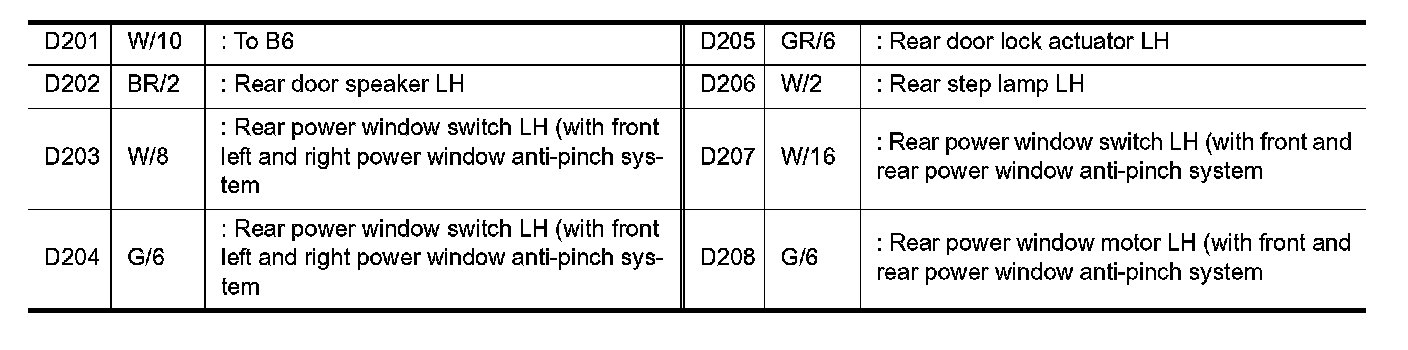

REAR DOOR LH HARNESS











REAR DOOR RH HARNESS
