WARNING CHIME SYSTEM

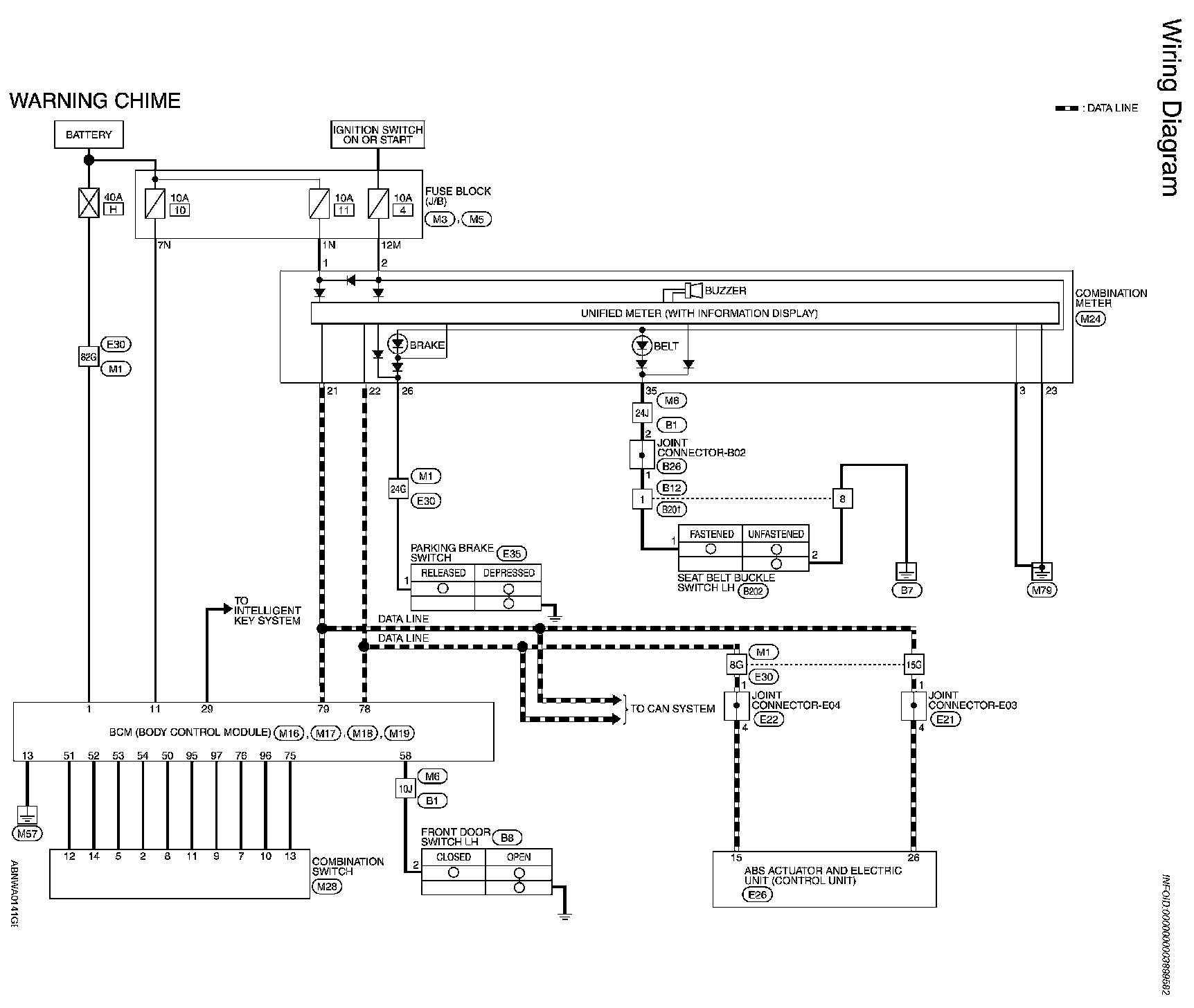

Wiring Diagram
Warning Chime - Part 1:
Warning Chime - Part 2:
Warning Chime - Part 3:
Warning Chime - Part 4:
Warning Chime - Part 5:
Warning Chime - Part 6:
