Climate Controlled Seat Control Unit
Climate Controlled Seat Control Unit
CLIMATE CONTROLLED SEAT CONTROL UNIT

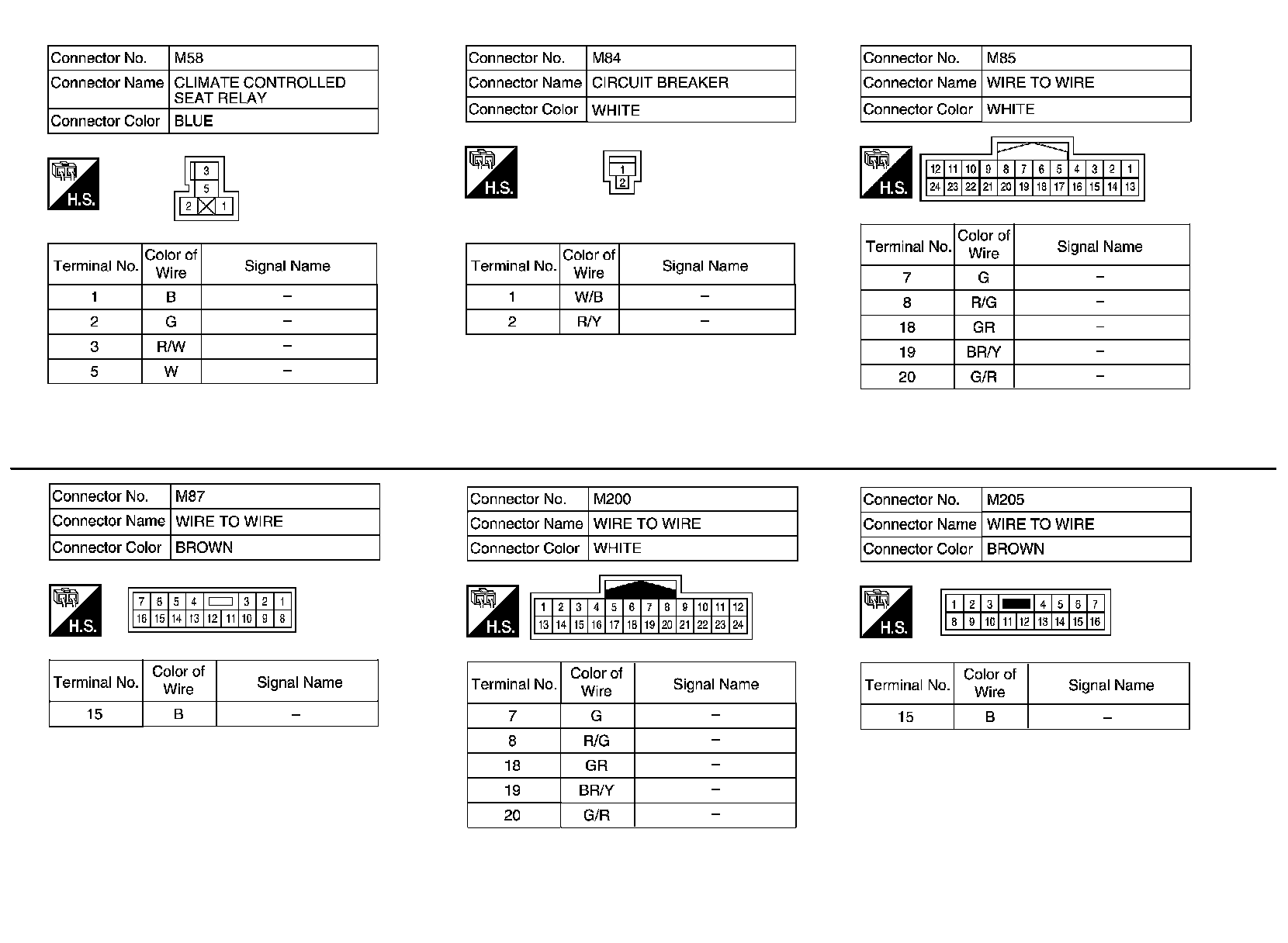

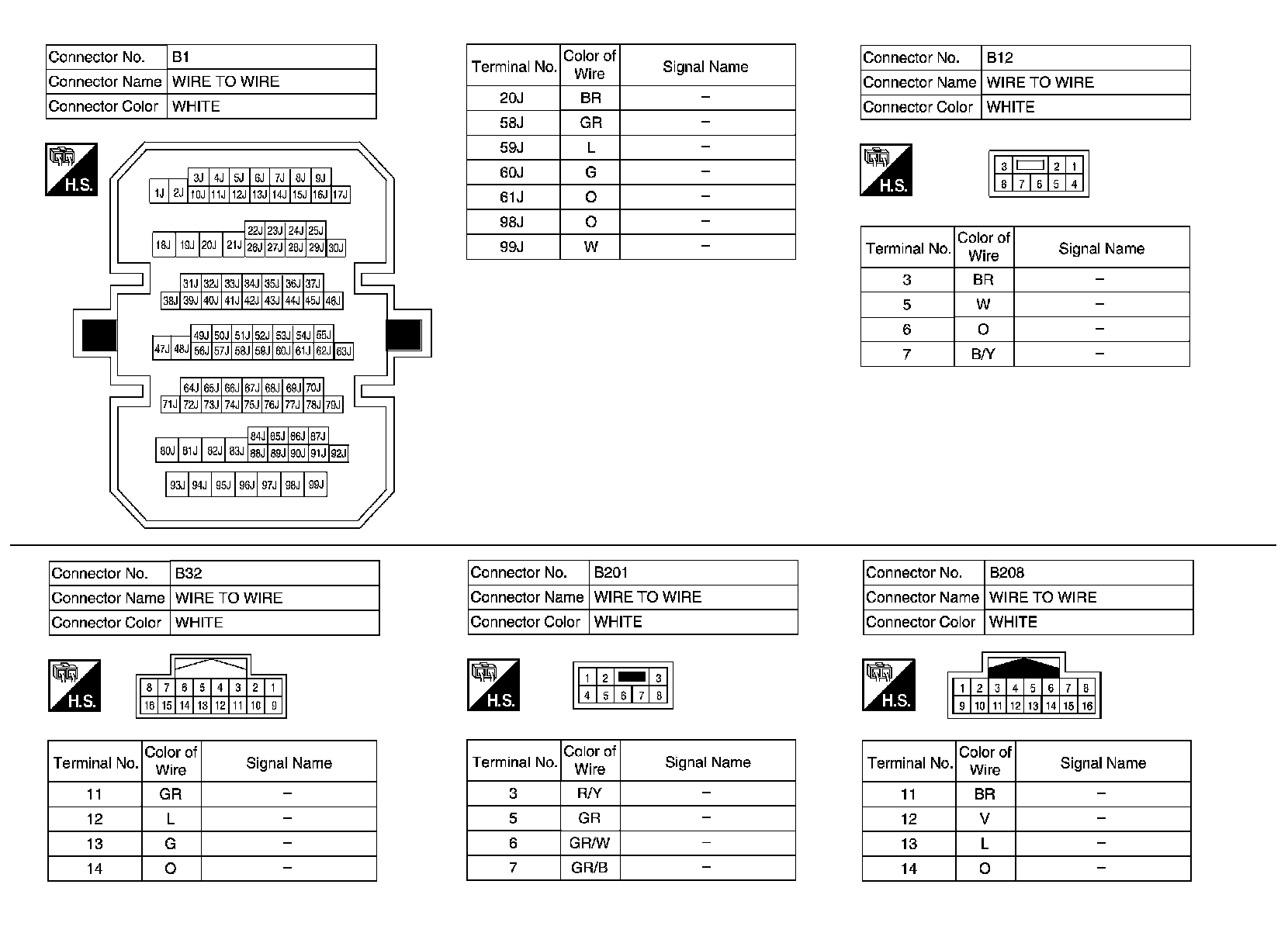

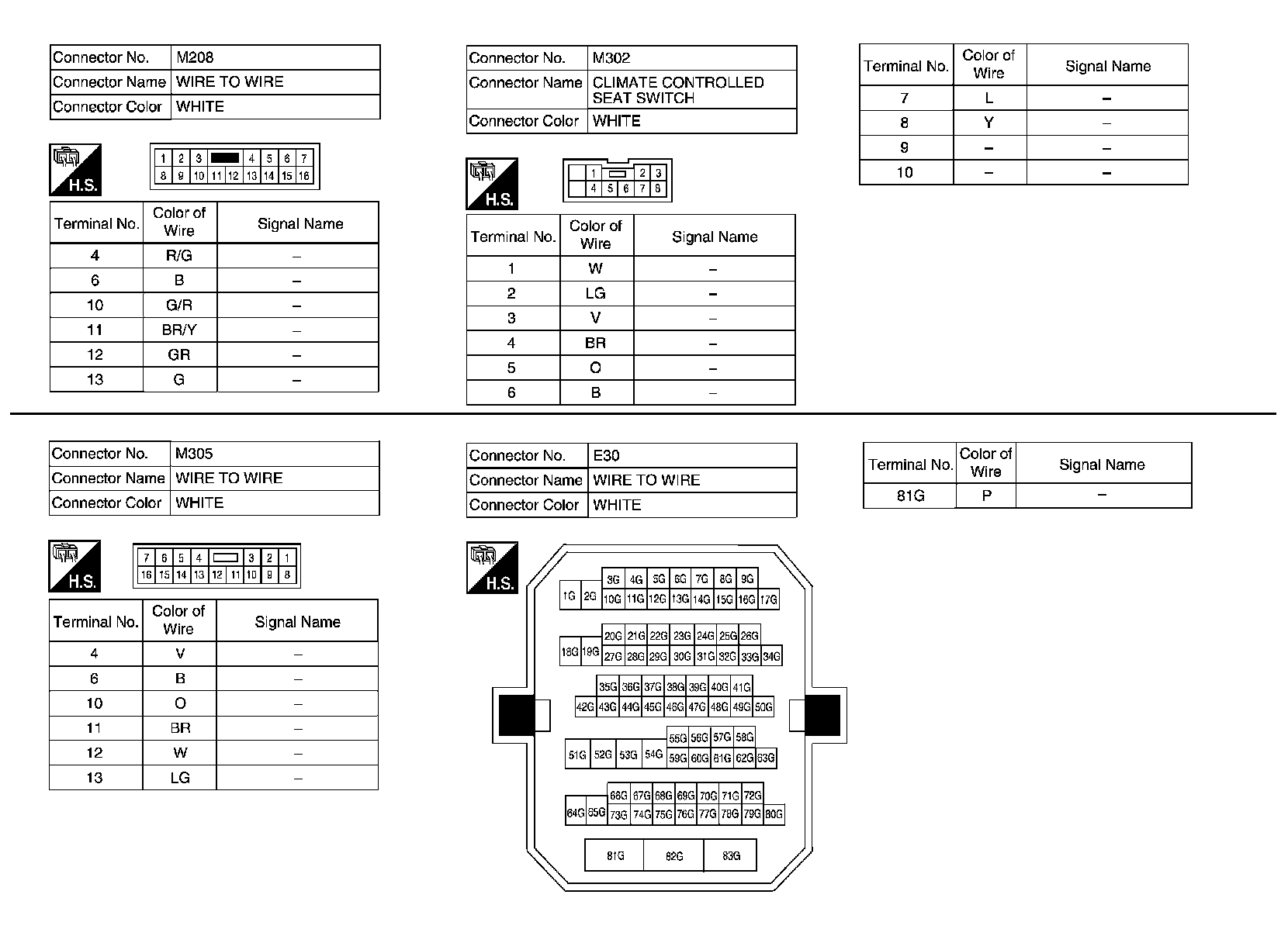

Wiring Diagram - CLIMATE CONTROLLED SEAT -
