System Diagram
POWER STEERING CONTROL UNIT

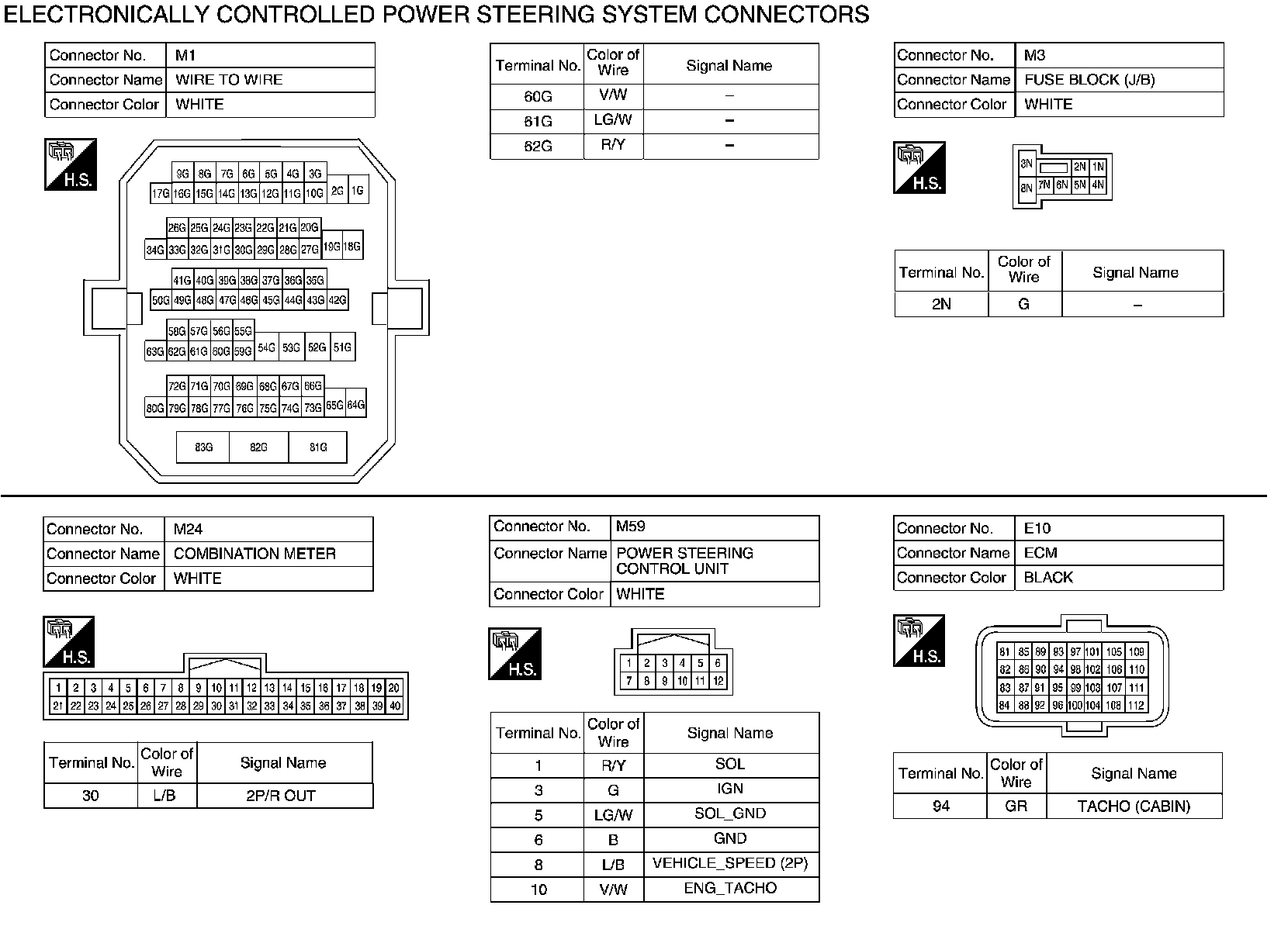

Wiring Diagram -- ELECTRONICALLY CONTROLLED POWER STEERING SYSTEM --
Electronically Controlled Steering System - Part 1:
Electronically Controlled Steering System - Part 2:
Electronically Controlled Steering System - Part 3:
