Exterior View Display Monitor: Service and Repair

REAR VIEW MONITOR


Removal and Installation


REMOVAL
1. Remove the license plate finisher. Refer to Xenon Type.
2. Remove trunk lid finisher. Refer to Exploded View.

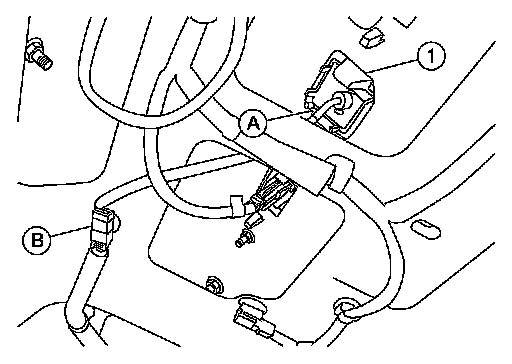

3. Disconnect the rear view monitor connector (B), press the rear view monitor tab (A) and remove the rear view monitor (1).

INSTALLATION
Installation is in the reverse order of removal.
