Instrument Panel, Gauges and Warning Indicators: Service and Repair

METER CONTROL SWITCH


Removal and Installation


REMOVAL
1. Disconnect the negative battery terminal.
2. Remove the cluster lid A. Refer to Removal And Installation.

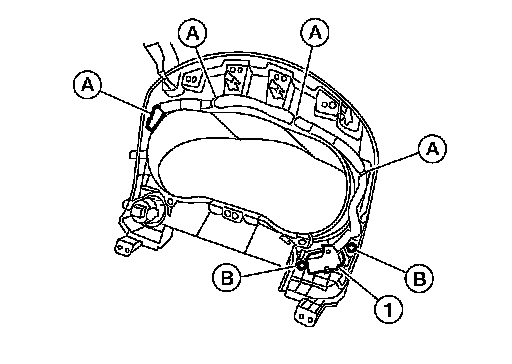

3. Detach the combination meter control switch harness clips (A), then remove the combination meter control switch screws (B) and remove the combination meter control switch (1).

INSTALLATION
Installation is in the reverse order of removal.
