Horn: Service and Repair

HORN


Removal and Installation


REMOVAL
1. Position aside the front fender protector LH. Refer to Removal And Installation.

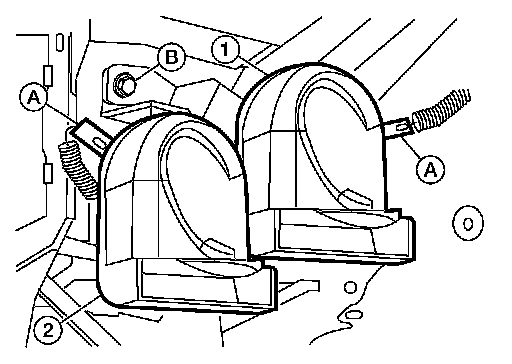

2. Disconnect the horn connectors (A).
3. Remove the horn bracket bolt (B), and remove horn (1) and horn (2).

INSTALLATION
Installation is in the reverse order of removal.
