Tail Lamp: Service and Repair

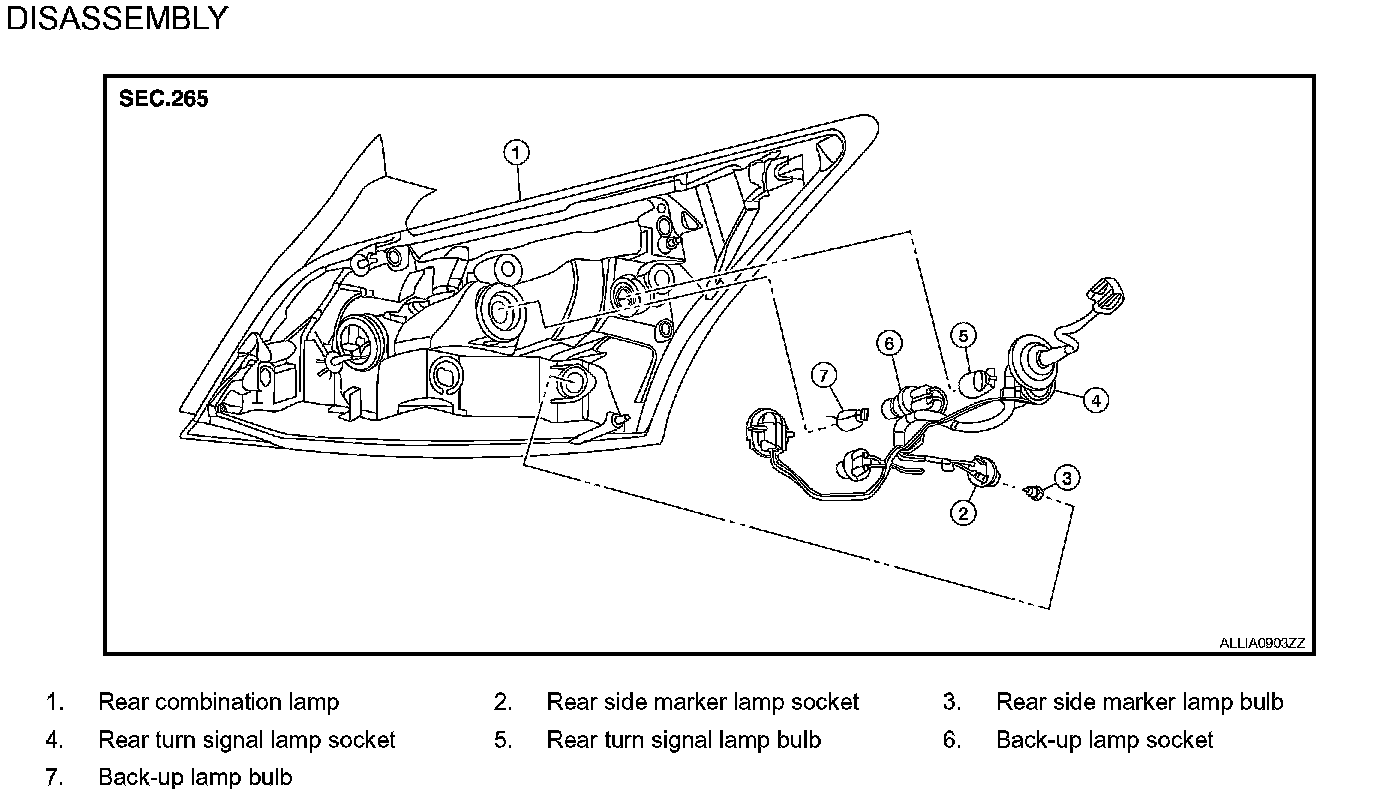

REAR COMBINATION LAMP

REMOVAL
1. Remove the trunk side finisher.
2. Remove the rear combination lamp nuts.
3. Pull the rear combination lamp toward the rear of the vehicle to remove it.
4. Disconnect the rear combination lamp harness connector

INSTALLATION
Installation is in the reverse order of removal.
