Camshaft Bearing

Camshaft Bearing Cap

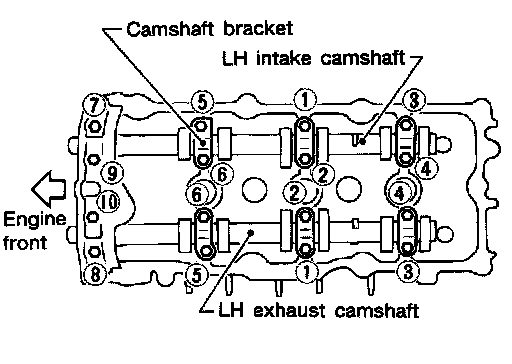

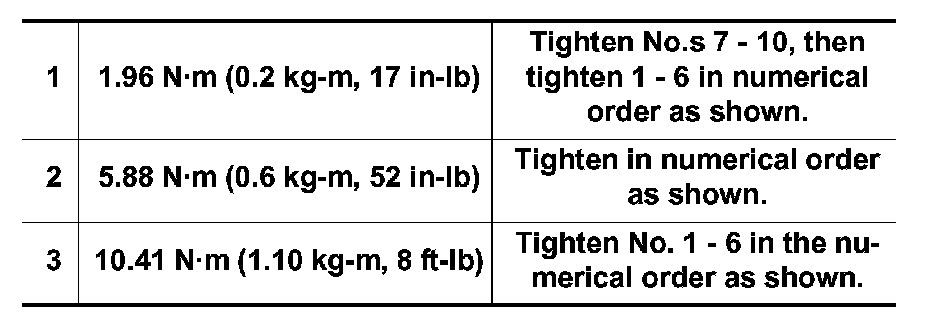

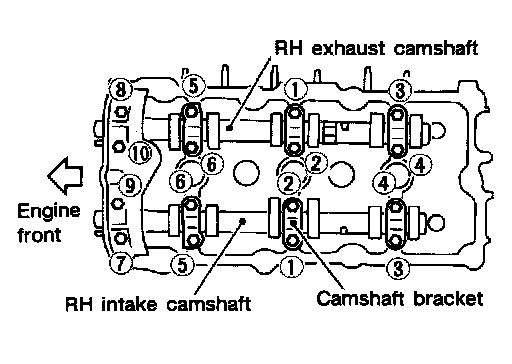

Tighten the camshaft brackets in the three steps, in numerical order as shown.
