Tilt Motor Replacement

Tilt motor replacement

NOTE:
Refer to "Telescope Motor Replacement" procedure for telescope motor replacement.

1. Disconnect the tilt motor electrical connector.

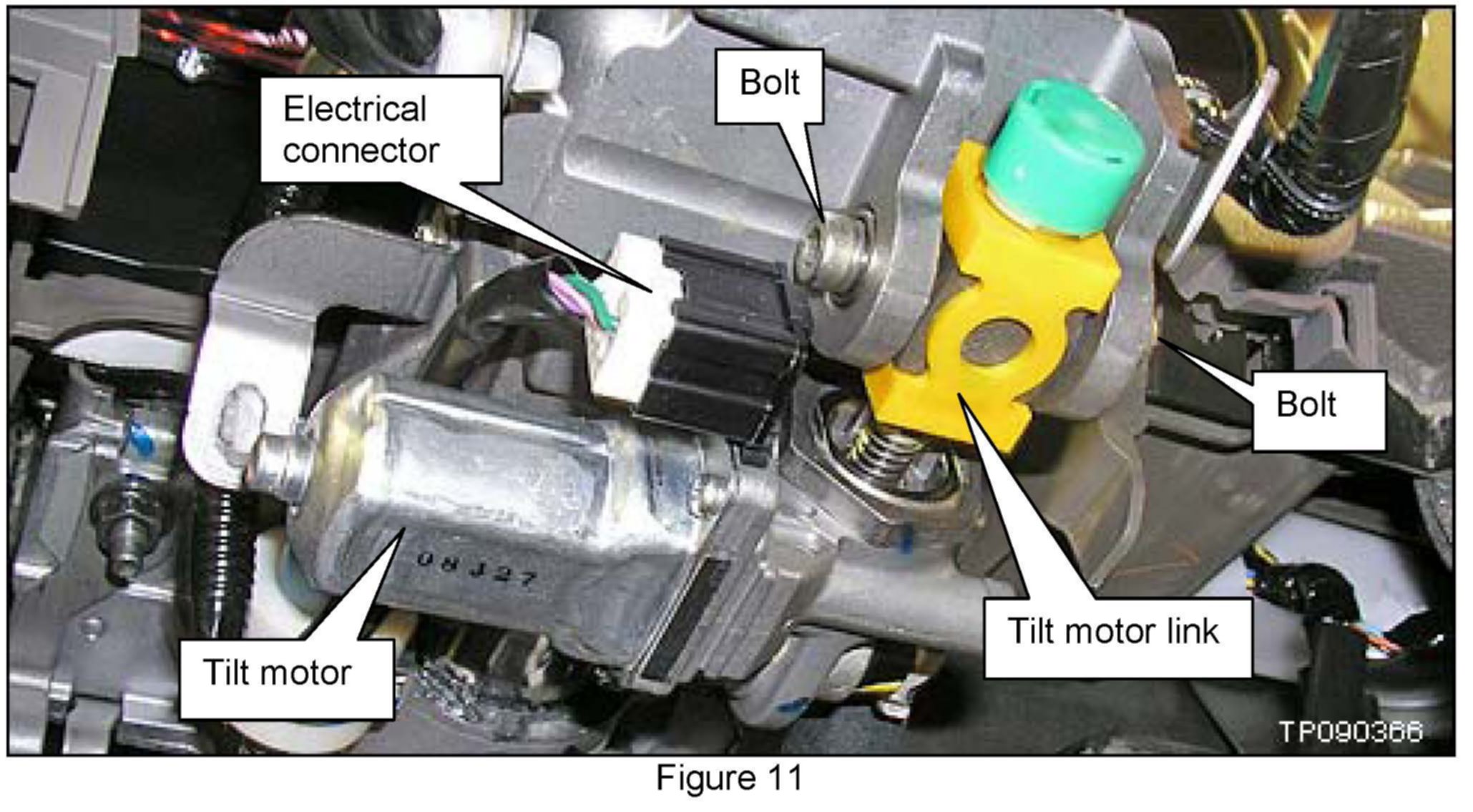

2. Remove the two bolts from the tilt motor link shown in Figure 11.

^ Torque for reassembly: 18.5 N.m (1.9 kg-m, 14 ft-lb).

NOTE:
Hold the weight of the steering wheel to relieve pressure from these bolts. This will make it easier to remove or install them.

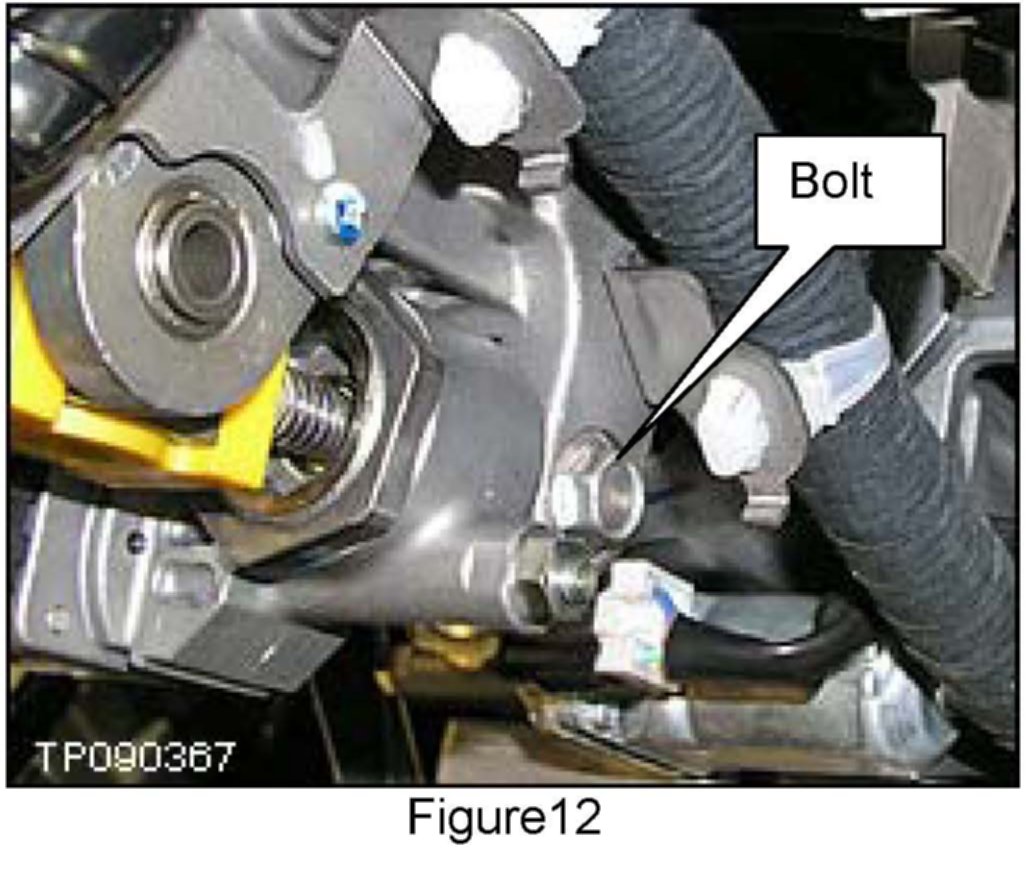

3. Remove the tilt motor mounting bolt - right side of the column.

NOTE:
Bolt is shown with cap removed.

^ Torque for reassembly:

^ 18.5 N.m (1.9 kg-m, 14 ft-lb).

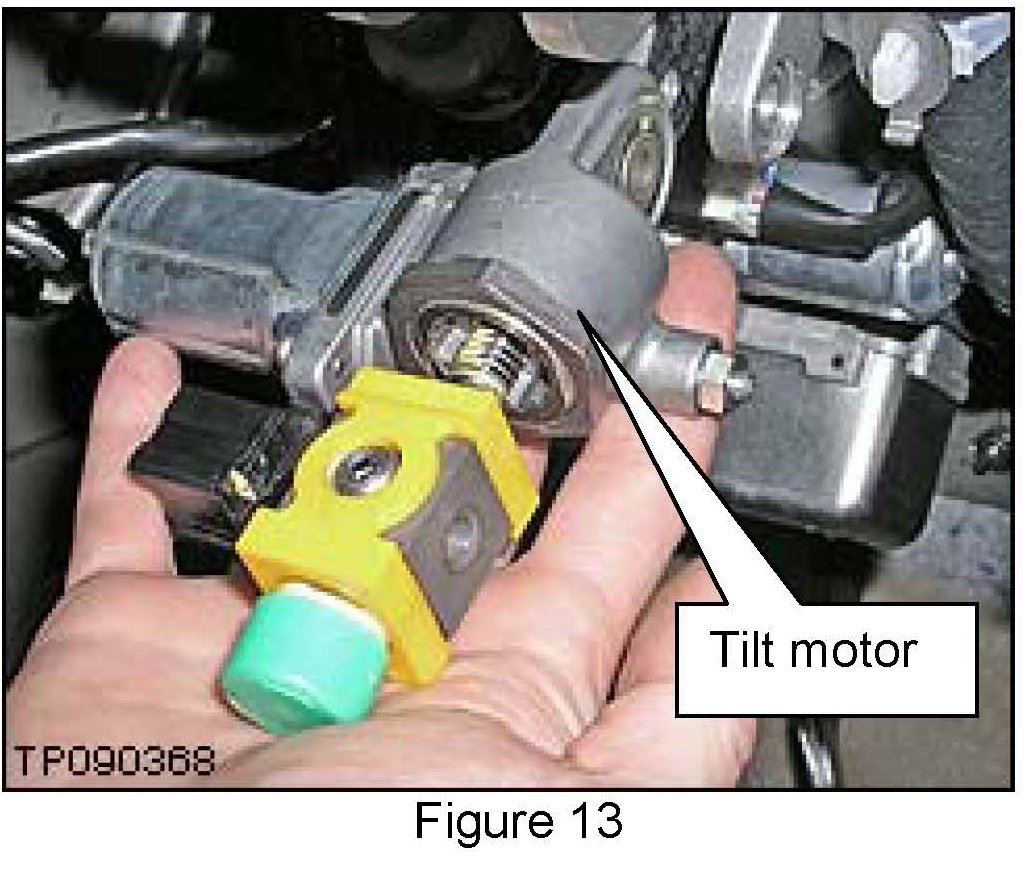

4. Remove the tilt motor.

5. Install the tilt motor in reverse of removal.

^ When installing the bolts for the link, hold the steering wheel and move it up or down to align the bolt holes.

6. If you need to replace the telescope motor, go to that procedure.

7. If repair is finished, reinstall all parts removed in reverse order.

8. Make sure tilt and telescope motors work correctly.

9. Inform the customer they will need to reset their Automatic Drive Positioner (ADP) settings.
