Windshield Washer Spray Nozzle: Adjustments

FRONT WASHER


FRONT WASHER NOZZLE : Adjustment

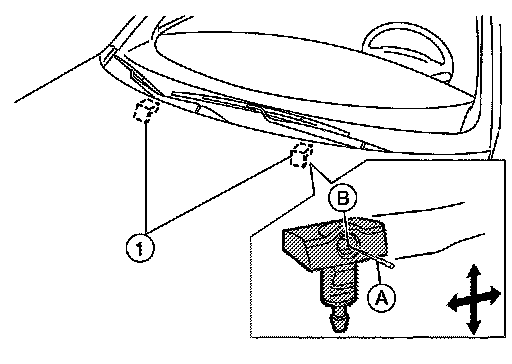

Adjust spray positions to match the target positions as shown.










- Front washer nozzles (1)
Insert a suitable tool (A) into the nozzle hole (B) and move up/down and left/right to adjust the spray position.
