Connectors

HARNESS

Harness Layout

HOW TO READ HARNESS LAYOUT

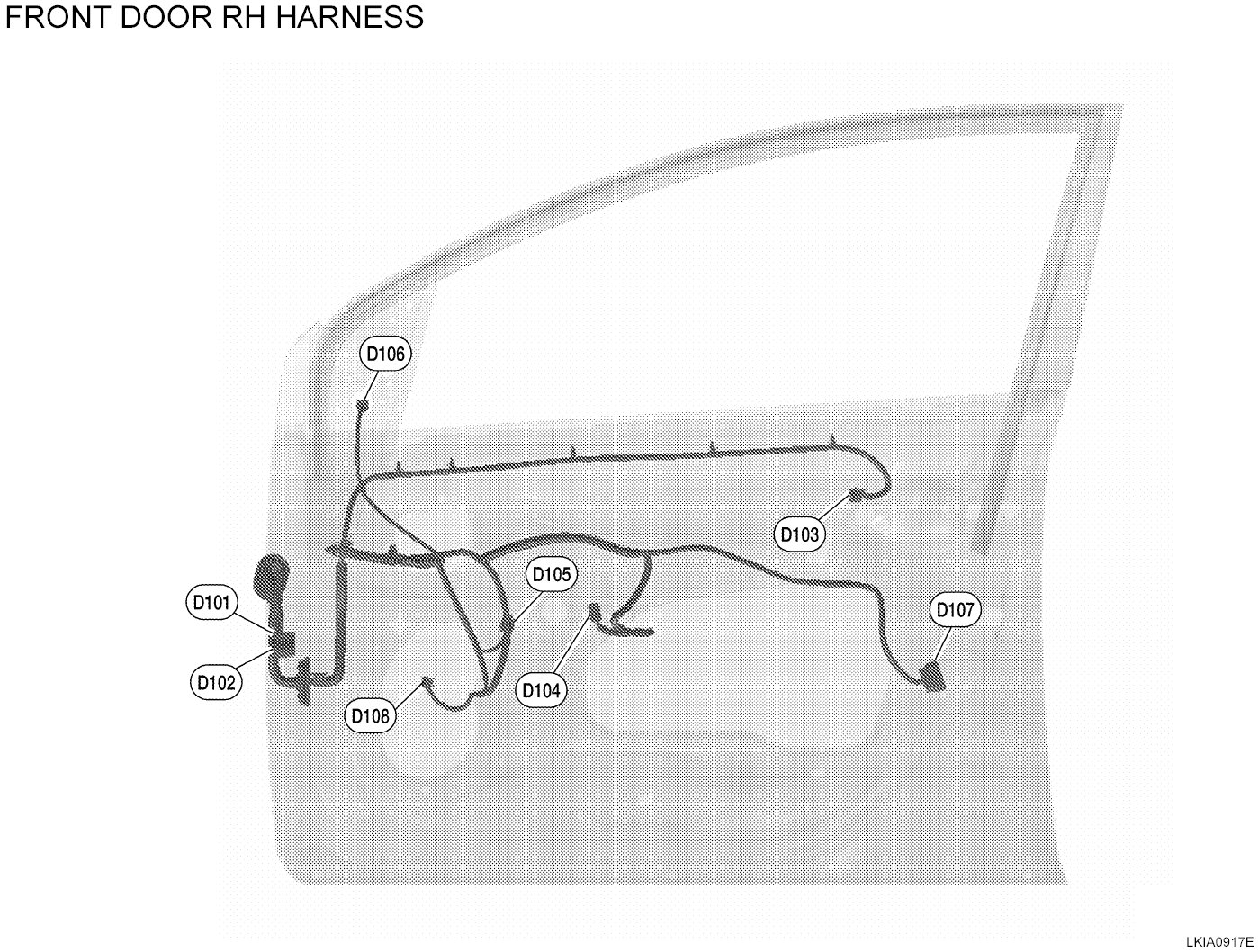

The following Harness Layouts use a map style grid to help locate connectors on the drawings:

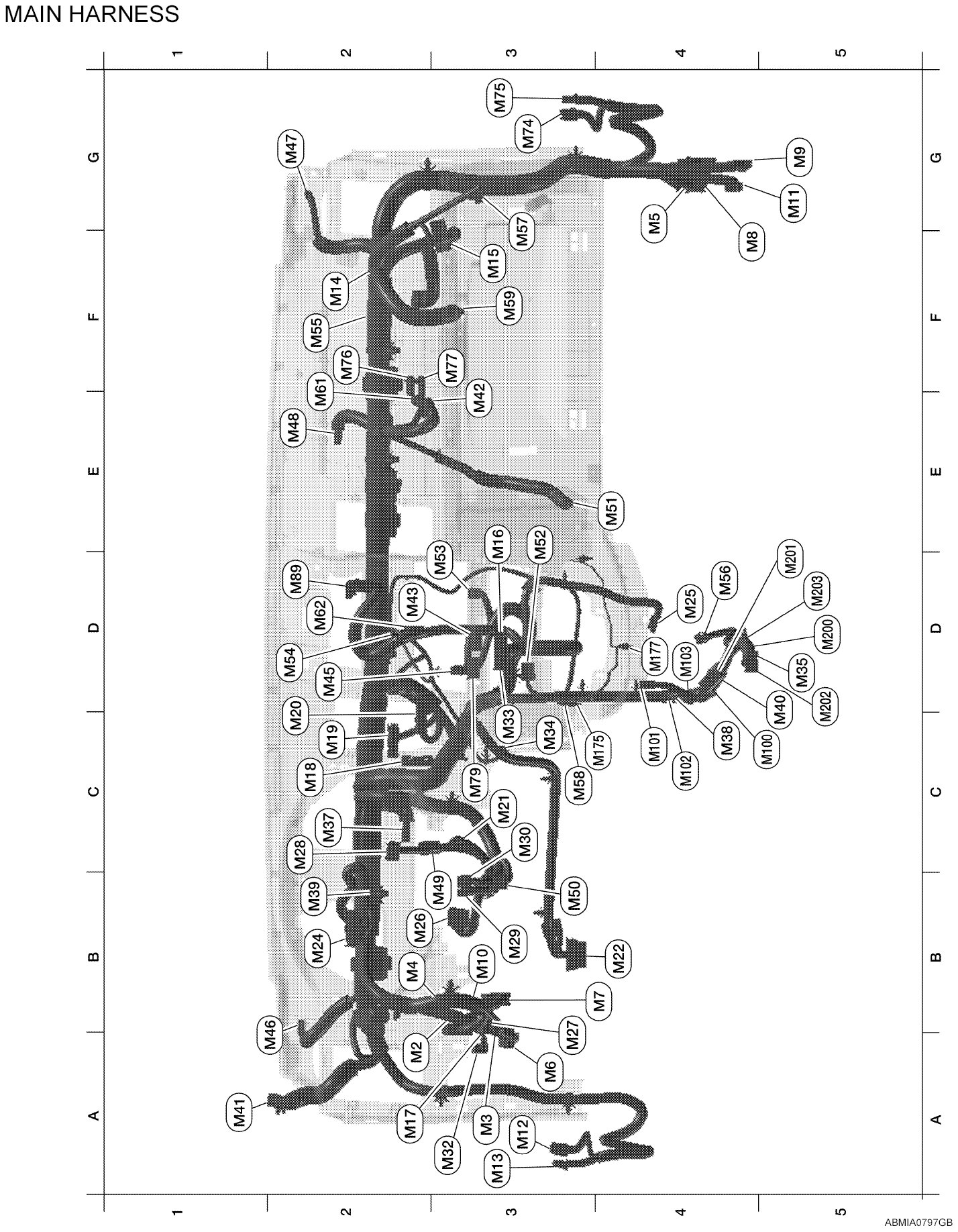

- Main Harness, Console Lamp Sub-harness, Hazard Switch Subharness and Console Switch Sub-harness

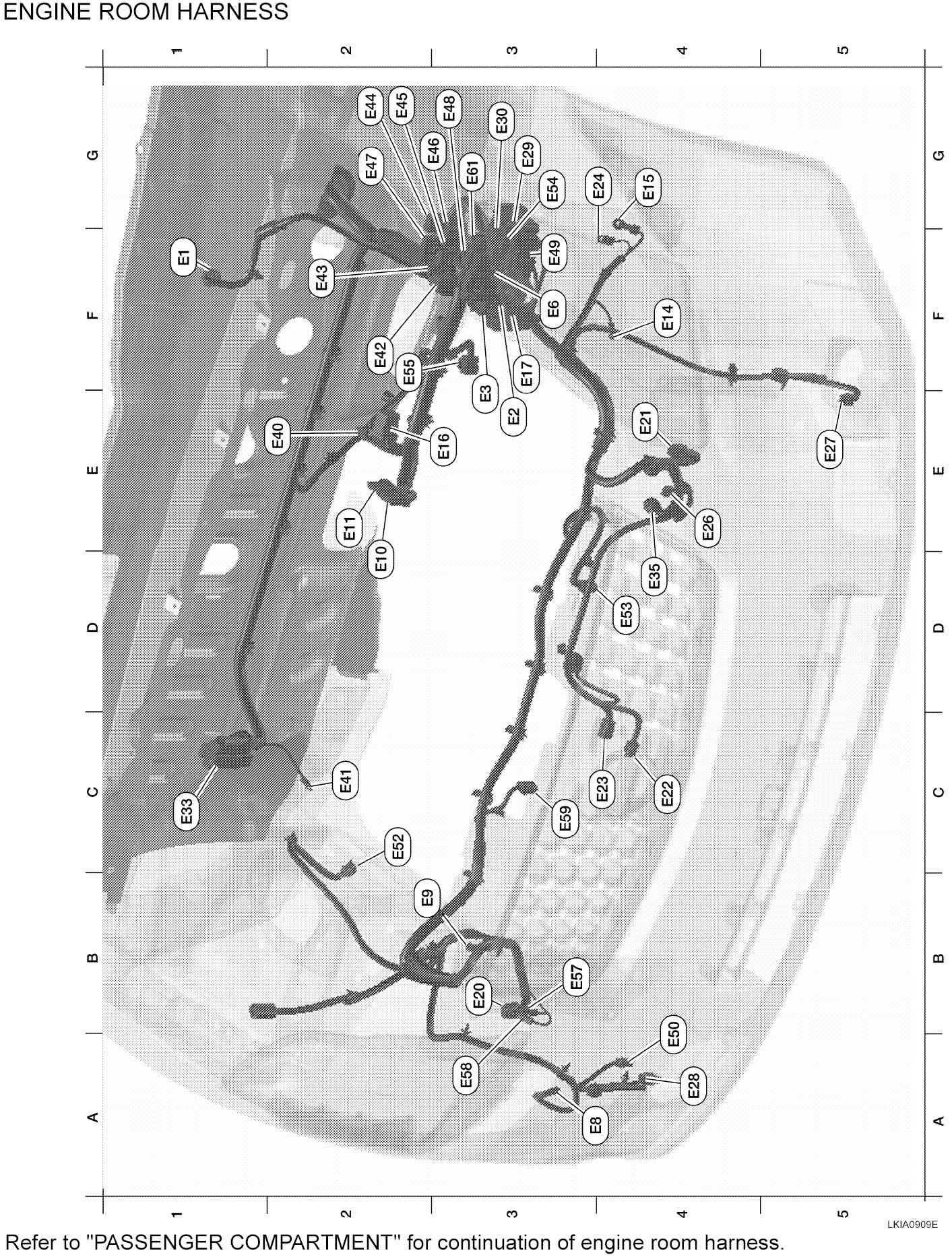

- Engine Room Harness

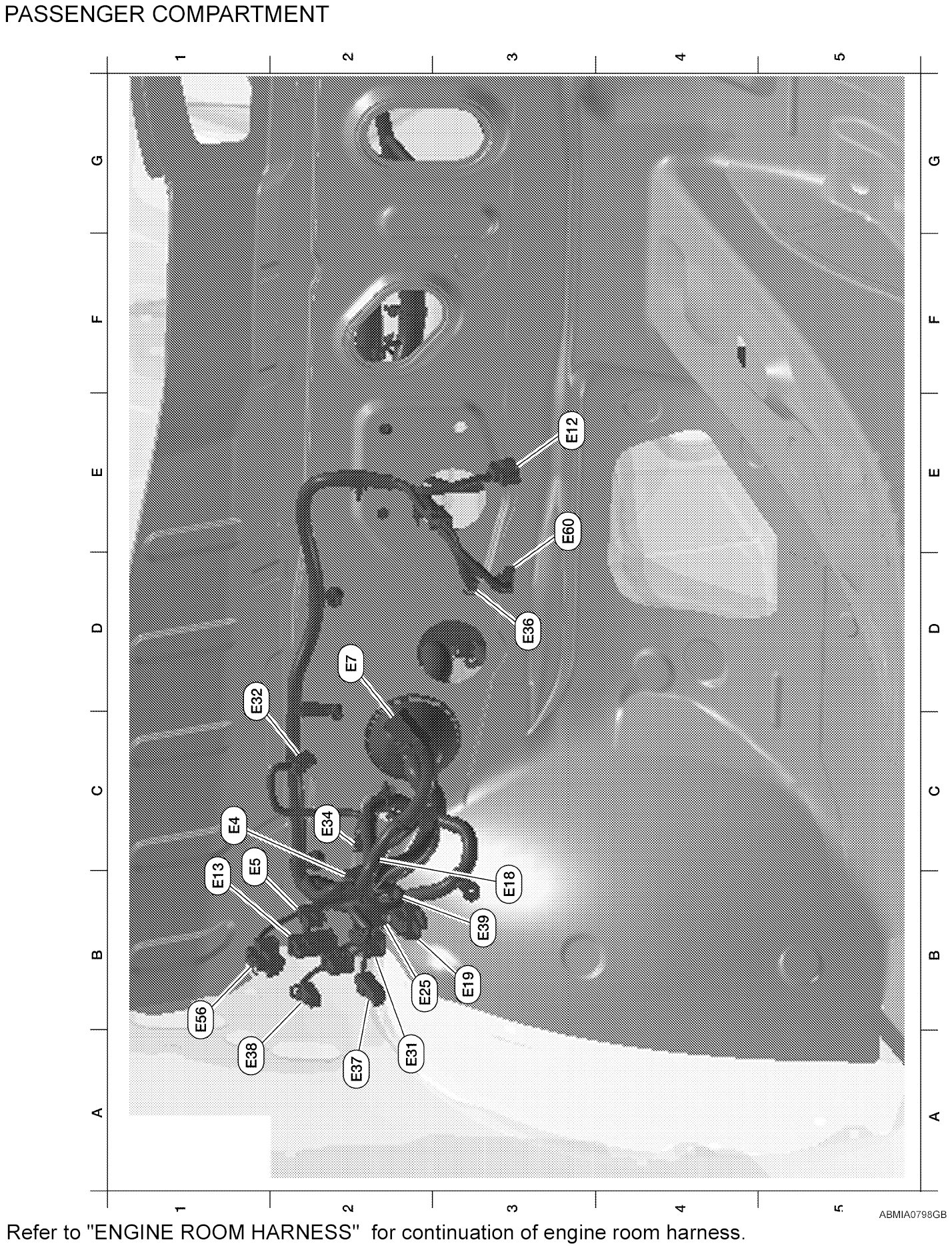

- Engine Room Harness Passenger Compartment

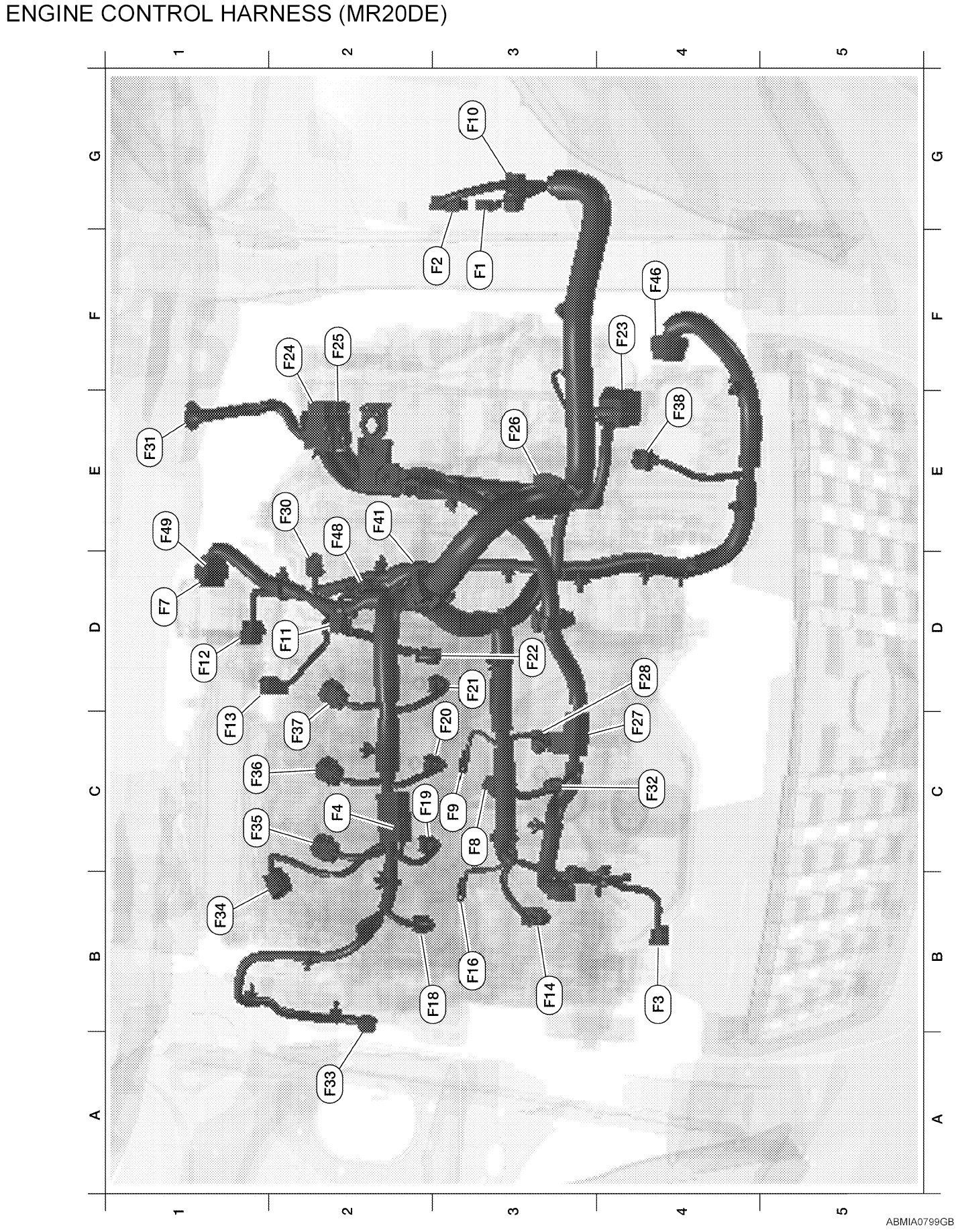

- Engine Control Harness (MR20DE) and Engine Control Harness (QR25DE)
- Body Harness and Tail Sub-harness
- Room Lamp Harness and Sunroof Sub-harness

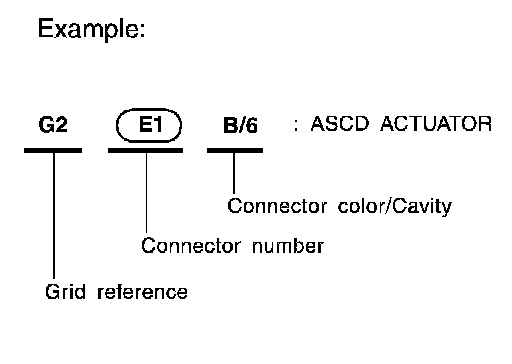

To use the grid reference

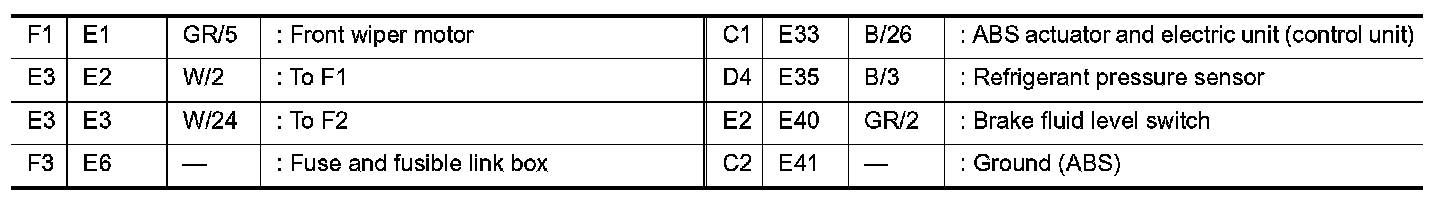

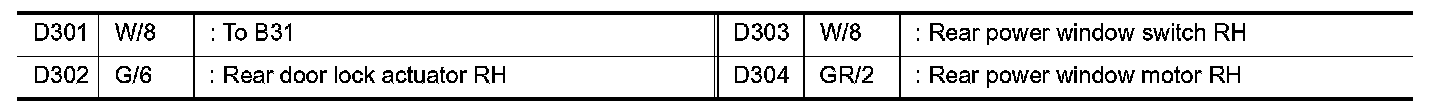

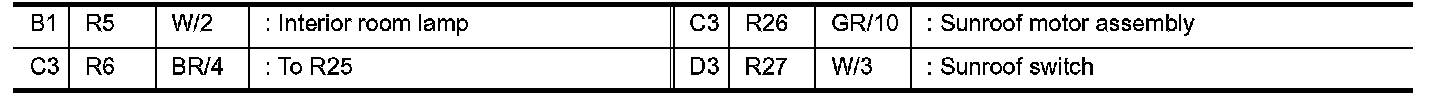

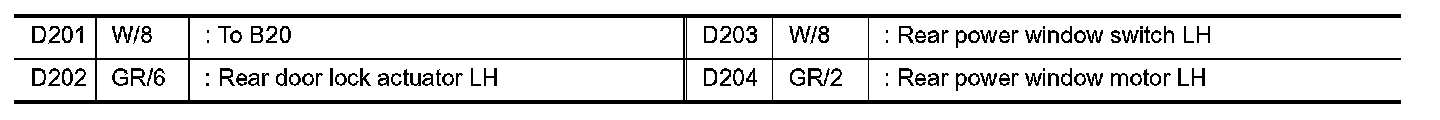

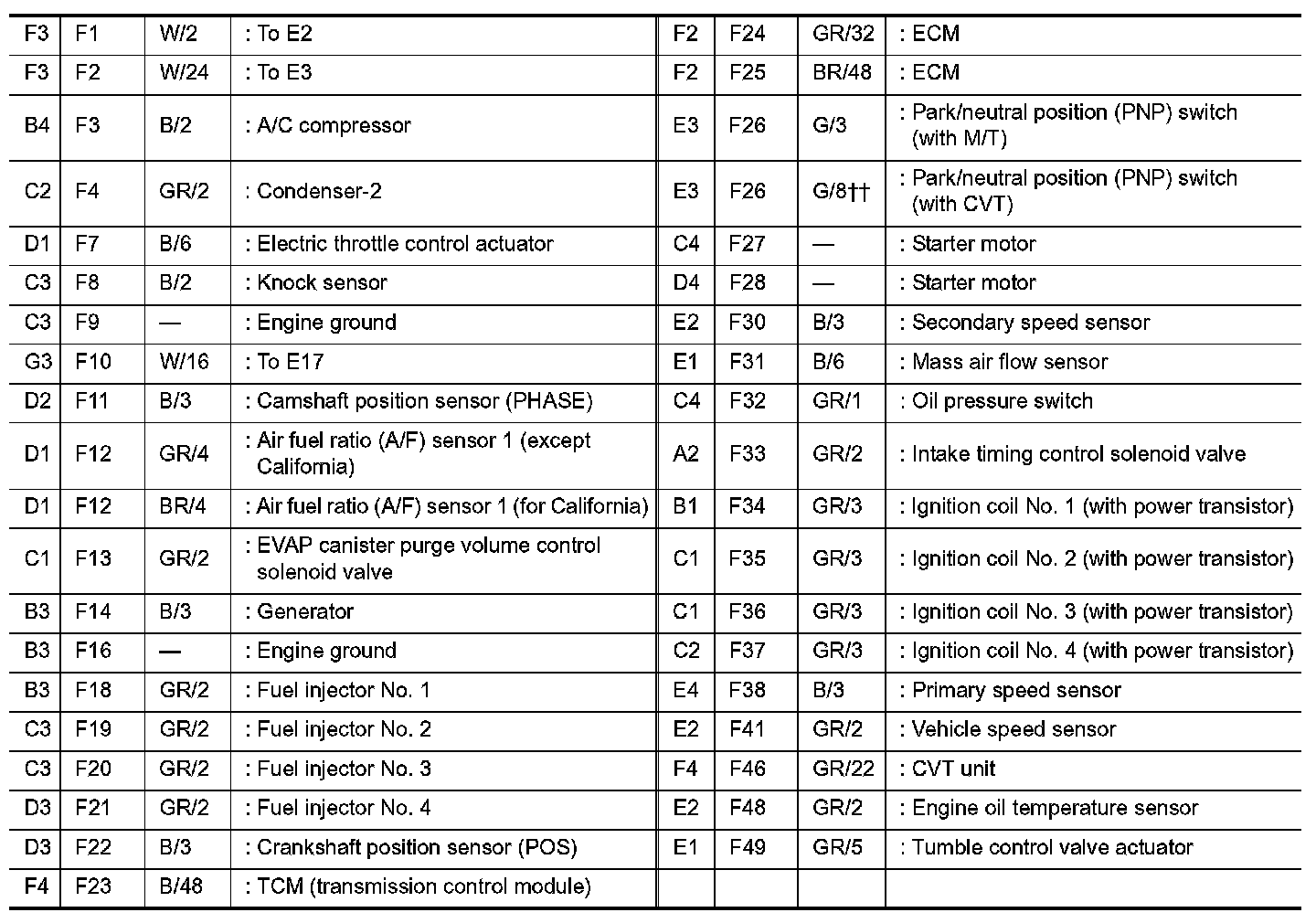

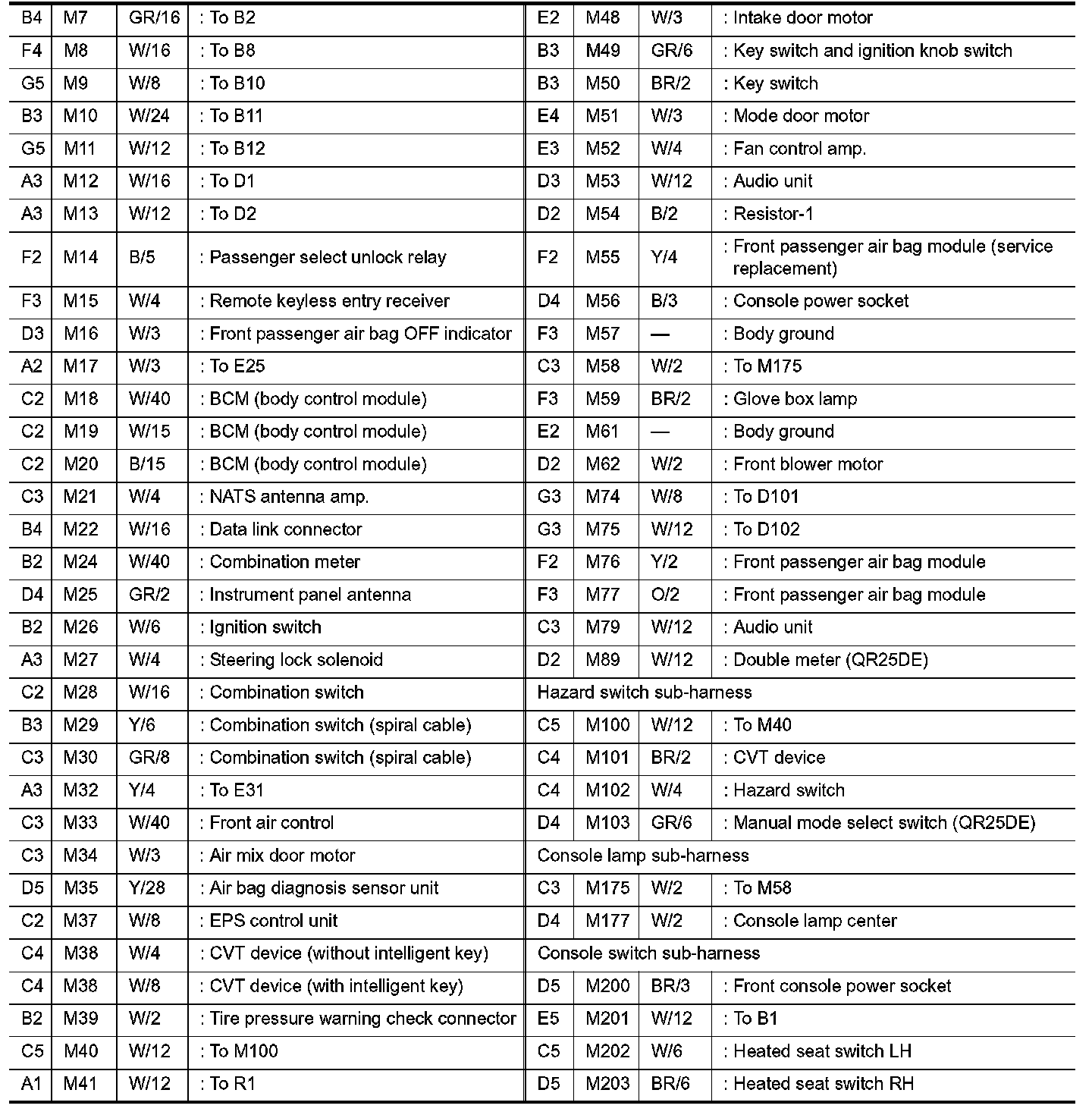

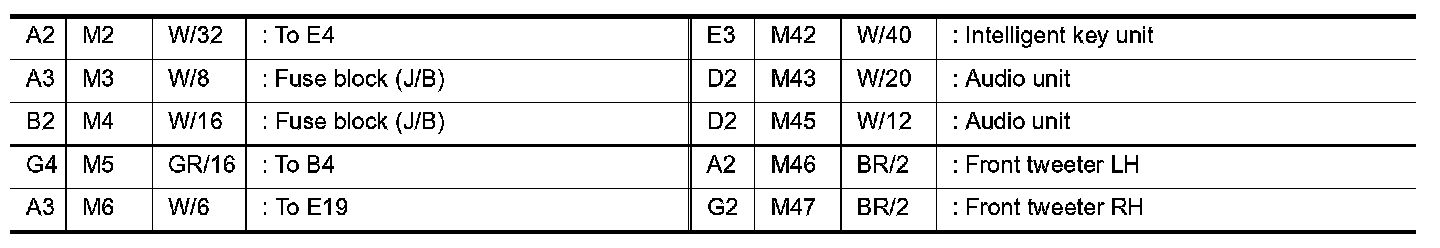

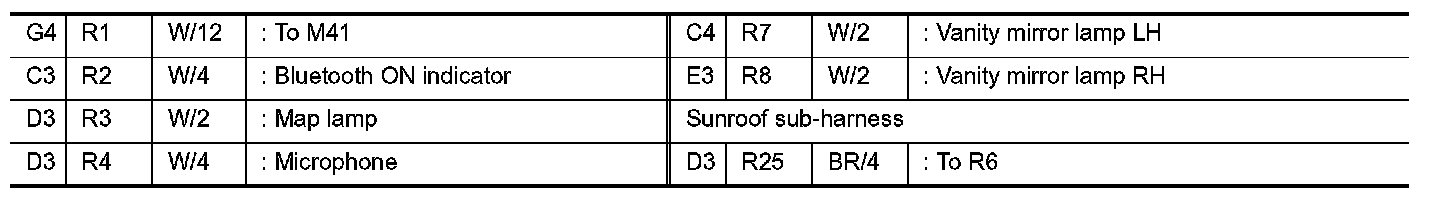

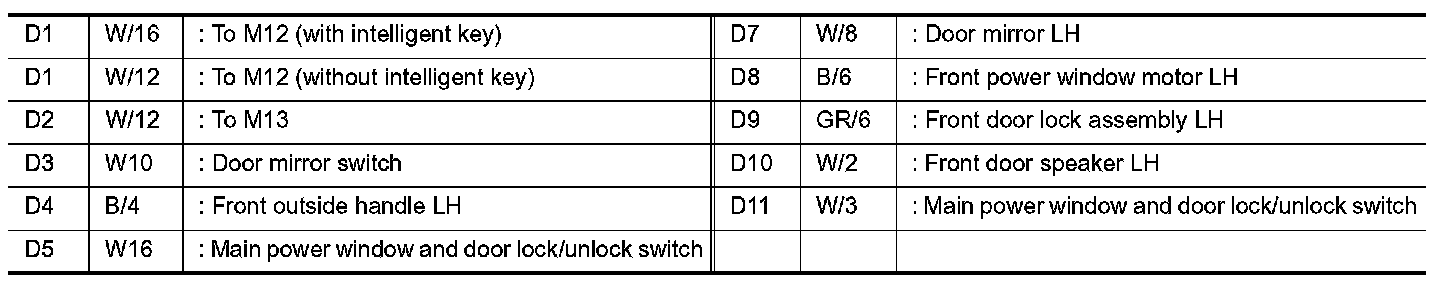

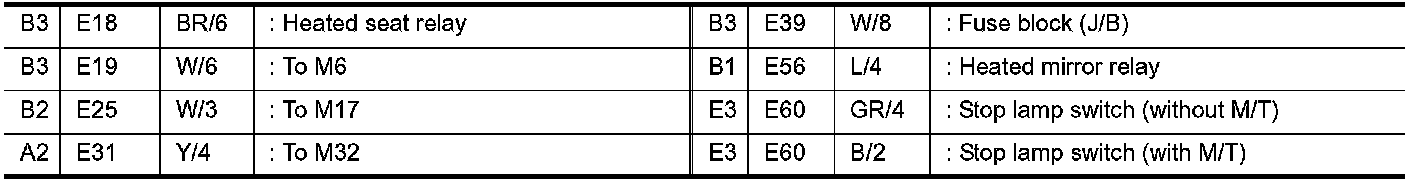

1. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line to the connector.

OUTLINE
