Flex Plate

Drive Plate

Torque: 108 N.m (11 Kg-m, 80 ft-lb)

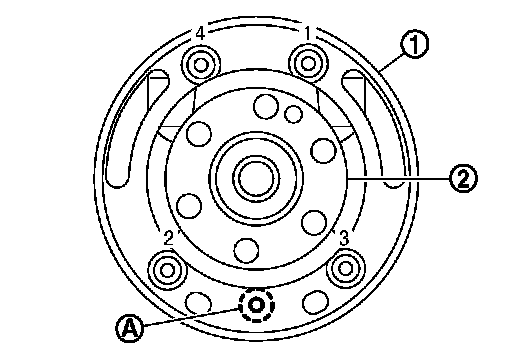

Position crankshaft (2) and signal plate (1) using a dowel pin (service part), and tighten bolts in numerical order as shown.

A : Dowel pin hole

NOTE: Dowel pin of crankshaft and signal plate is provided as a set for each.
