Exhaust Manifold

SERVICE DATA AND SPECIFICATIONS (SDS)


Exhaust Manifold


EXHAUST MANIFOLD






Torque: 33.4 N.m (3.4 kg-m, 25 ft-lb)

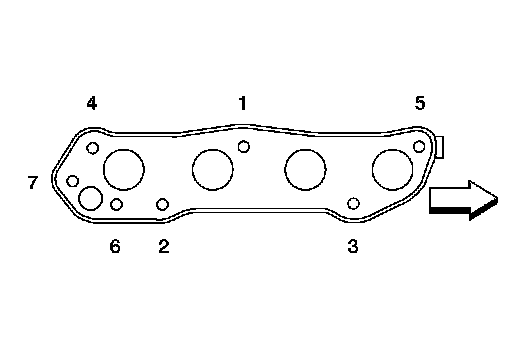

Tighten exhaust manifold nuts to specification in two stages in the numerical order shown.






Arrow Indicates Engine front
