Steering - Steering Column Rattle/Knock On Rough Roads
Classification: ST09-006Reference: NTB09-127
Date: November 11, 2009
2007 - 2009 VERSA;
NOISE FROM STEERING COLUMN INTERMEDIATE SHAFT
APPLIED VEHICLES: 2007 - 2009 Versa (C11) Sedan and Hatchback
APPLIED VIN / DATE:
2007 - 2008 All
2009 vehicles built before 3N1(*)C1(***)9L 420495 / Nov. 6, 2008
IF YOU CONFIRM
Knock, rattle, or click noise coming from the steering column intermediate shaft,
^ When driving on rough or dirt roads,
^ With the vehicle parked and turning the steering wheel back and forth with small quick movements.
NOTE:
^ If necessary, confirm noise location using chassis ears or other noise locating tool.
^ Make sure the noise is coming from the steering column intermediate shaft. If it is not, this bulletin does not apply. Refer to ASIST for further diagnostic information.
^ This incident, if it should occur, will not affect steering effort or steering ability.
ACTION
Replace the steering column intermediate shaft with the one listed in the Parts Information.
IMPORTANT:
The purpose of ACTIONS (above) is to give you a quick idea of the work you will be performing. You MUST closely follow the entire Service Procedure as it contains information that is essential to successfully completing this repair.

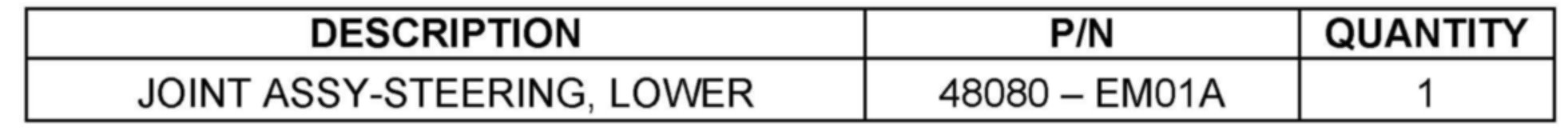

PARTS INFORMATION

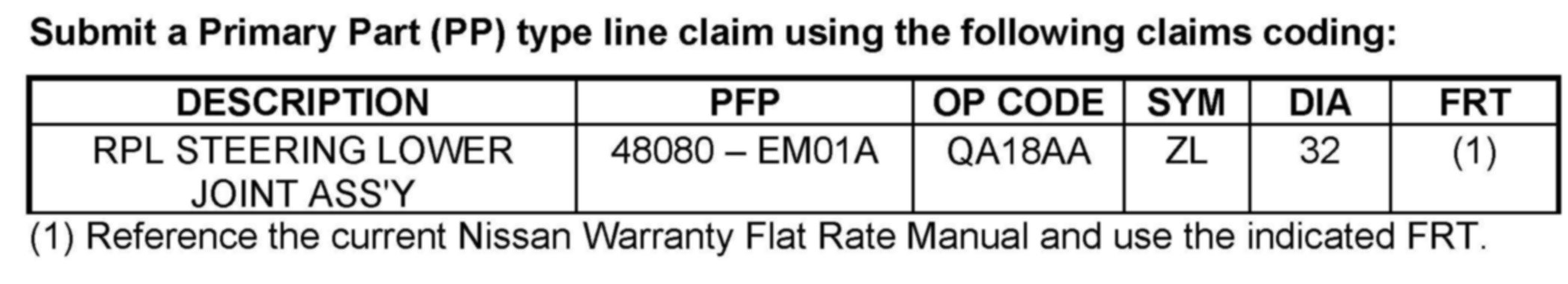

CLAIMS INFORMATION
SERVICE PROCEDURE

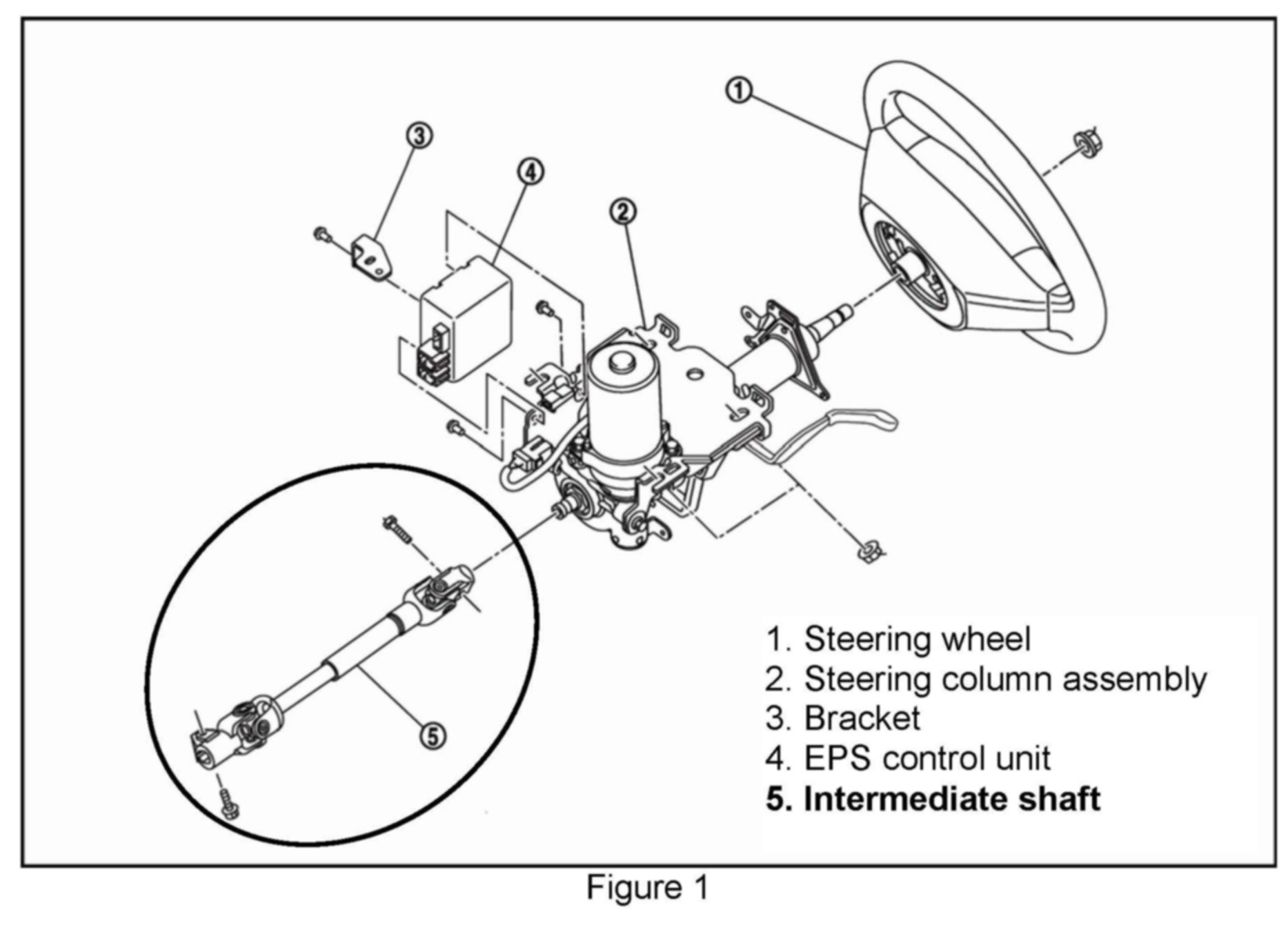

1. Replace the steering column intermediate shaft (see Figure 1).
^ Refer to Steering Column in section PS of the Service Manual for replacement information.
IMPORTANT NOTES:
^ Do not remove the entire steering column.
^ Perform only the steps in the Service Manual that are needed for the removal of only the intermediate shaft.
^ Keep the front wheels and steering wheel in a straight ahead position while replacing the intermediate shaft. This will help avoid having to re-center the steering wheel after replacement.
