Interior - Driver's Seat Back Handle Inoperative: Overview

Classification: BT10-001

Reference: NTB10-036

Date: March 8, 2010

2008 - 2010 ALTIMA COUPE; DRIVER SIDE SEATBACK RELEASE LEVER INOPERATIVE

APPLIED VEHICLES:
2008 - 2010 Altima Coupe (CL32) with power driver seat.

IF YOU CONFIRM:

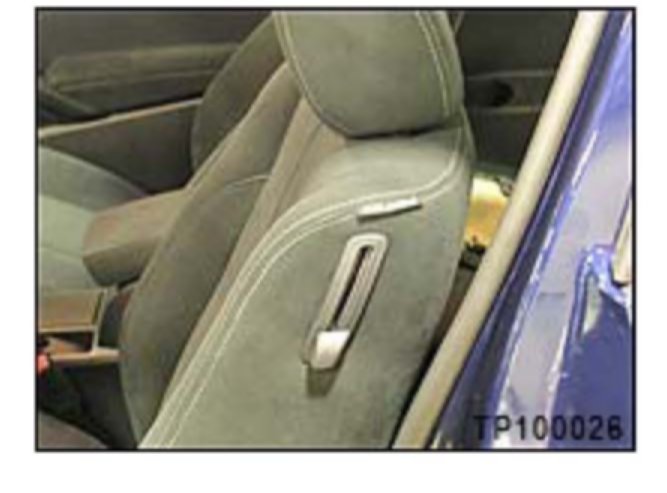

The driver side seatback release lever does not operate (does not release the seatback)

NOTE
Exit from the rear seat is still possible by:

^ Using the power recline switch on the driver's seat.

OR

^ The seatback release lever on the passenger seat.

ACTION:

Replace both seatback release cables (left and right cables) inside the left seatback.

NOTE:
Do not replace the entire seatback for this incident, if it should occur.

IMPORTANT:
The purpose of ACTION (above) is to give you a quick idea of the work you will be performing. You MUST closely follow the entire Service Procedure as it contains information that is essential to successfully completing this repair.

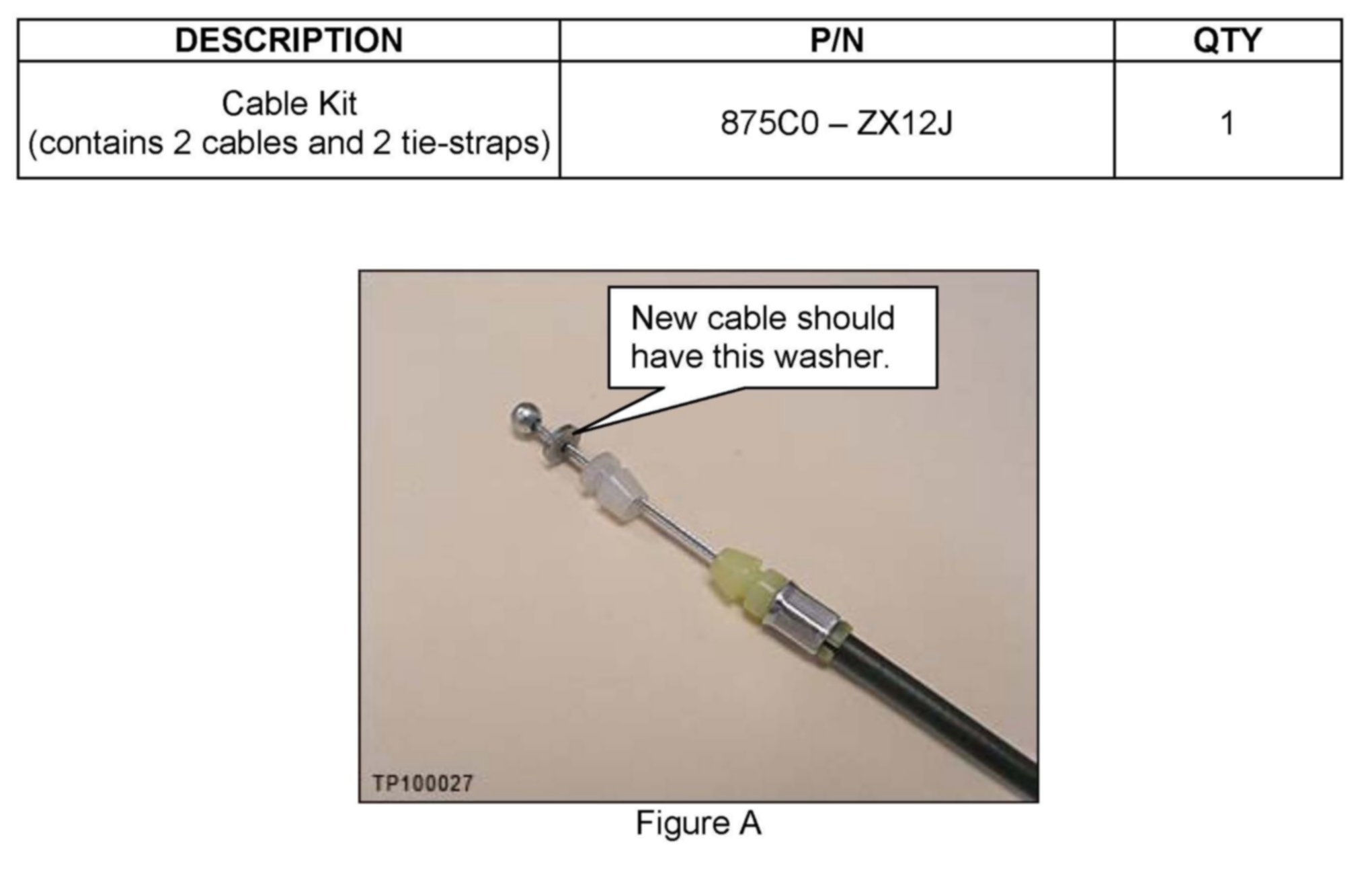

PARTS INFORMATION





CLAIMS INFORMATION
