Windshield Washer Pump: Service and Repair

FRONT WASHER


FRONT WASHER PUMP : Removal and Installation


REMOVAL
1. Position the RH fender protector back. For sedan refer to Sedan . For coupe refer to Coupe.

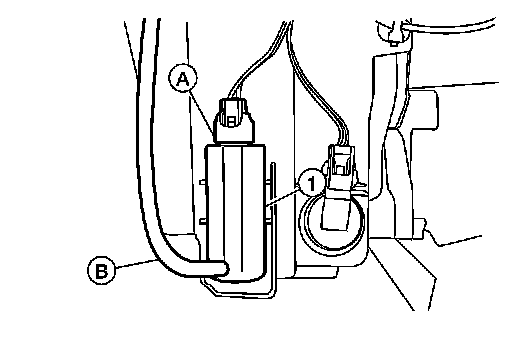

2. Disconnect the front washer pump connector (A), and washer pump hose (B).
3. Remover the front washer pump (1).

INSTALLATION
Installation is in the reverse order of removal.

CAUTION:
After installation, add Nissan specified fluid up to the upper level of washer tank inlet, and check for leaks. Refer to Maintenance
