Automatic Air Conditioner System
AUTOMATIC AIR CONDITIONING SYSTEM

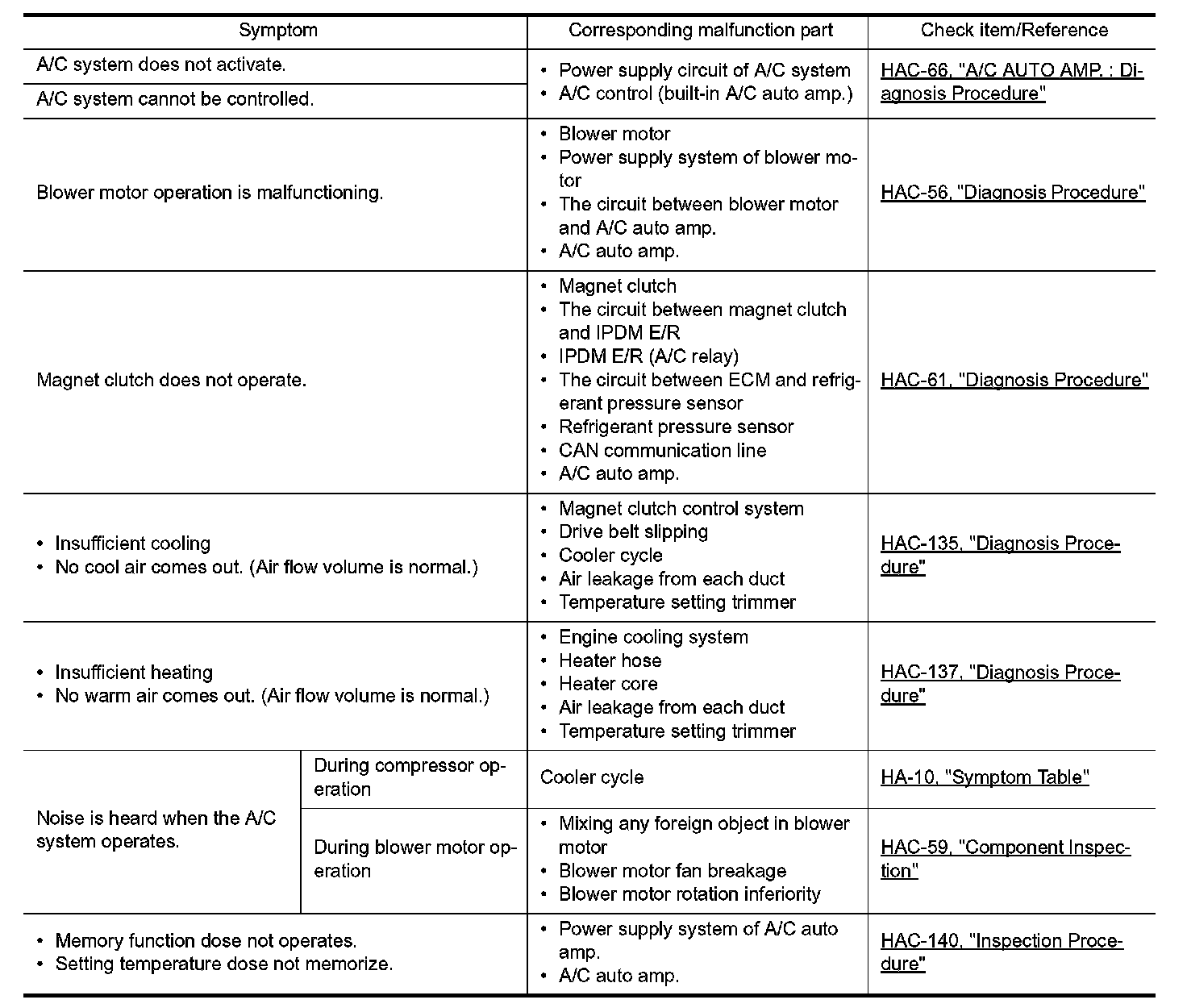

Diagnosis Chart By Symptom
CAUTION:
Perform the self-diagnosis with on board diagnosis and CONSULT-III before performing the symptom diagnosis. If any malfunction result or DTC is detected, perform the corresponding diagnosis.
