Removal And Installation

REAR SIDE MARKER LAMP


Removal and Installation


REMOVAL

CAUTION:
Disconnect the battery negative terminal or remove the fuse.
1. Remove rear bumper closing. Exploded View.
2. Disconnect rear side marker lamp connector.

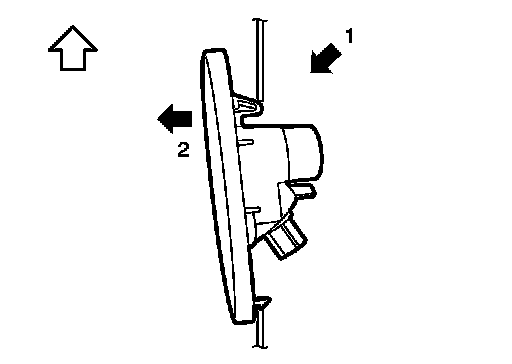

3. Remove rear side marker lamp in numerical order shown in the figure.

White Arrow Indicates :Vehicle front

INSTALLATION
Install in the reverse order of removal.
