Cellular Phone: Service and Repair

TELEPHONE


Removal and Installation

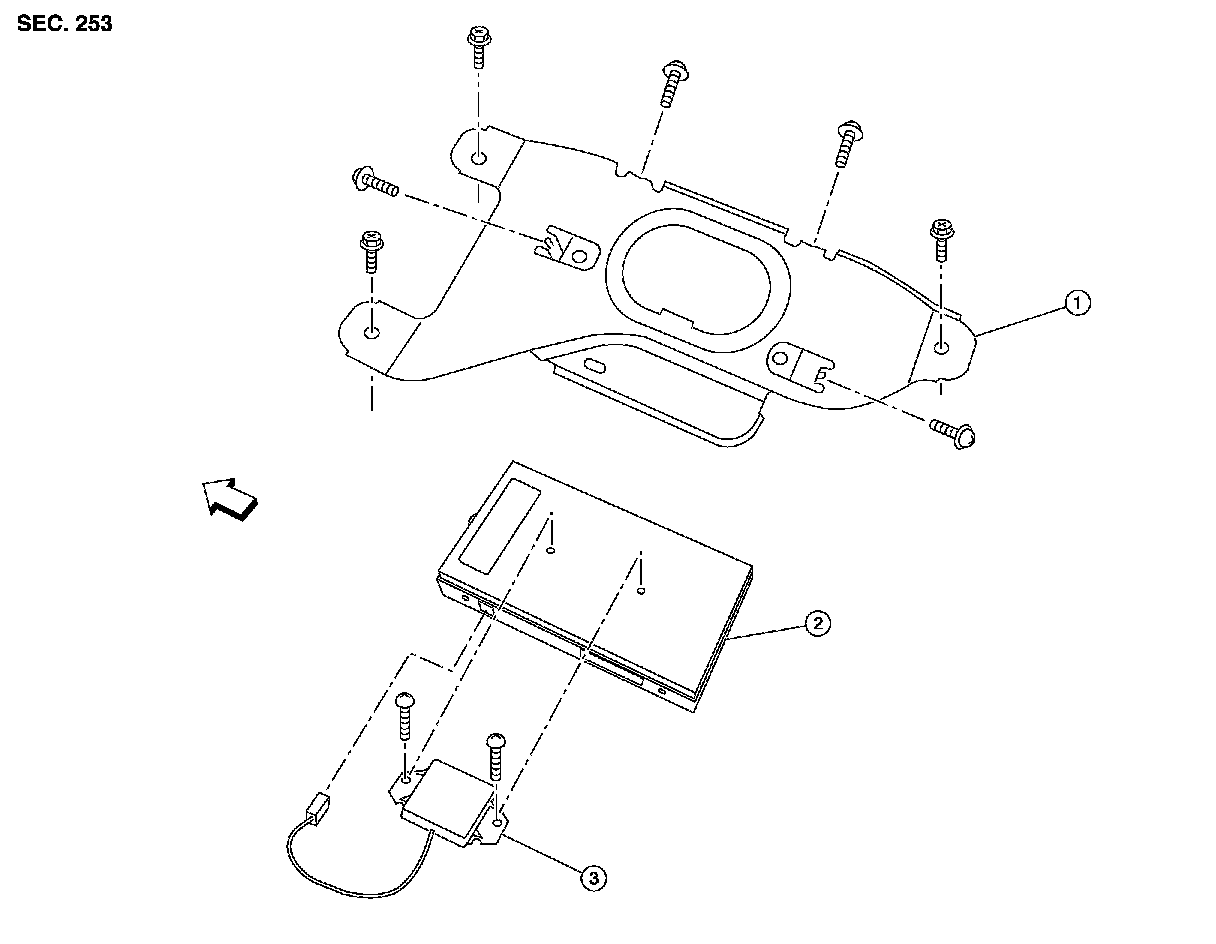

COMPONENTS
Bluetooth Control Unit and Antenna











BLUETOOTH CONTROL UNIT

Removal

NOTE:
Bluetooth control unit shown with the LH seat removed for clarity.
1. Disconnect the battery negative terminal.

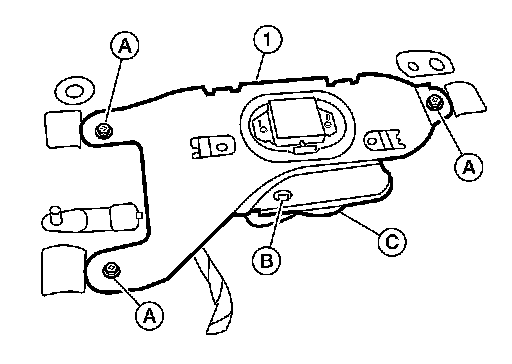

2. Slide the LH front seat toward the front to remove the bluetooth control unit bracket rear bolt (A).
3. Slide the LH front seat toward the rear to remove the bluetooth control unit bracket front bolts (A).
4. Detach the Bluetooth control unit harness clip (B) from the Bluetooth control unit bracket.
5. Disconnect the Bluetooth control unit connector (C).
6. Remove the Bluetooth control unit and bracket assembly (1).
7. Remove the Bluetooth control unit screws and remove the Bluetooth control unit.

Installation
Installation is in the reverse order of removal.

BLUETOOTH ANTENNA

Removal

NOTE:
Bluetooth antenna is mounted on top of the Bluetooth control unit.
1. Disconnect the battery negative terminal.
2. Slide the LH front seat toward the rear.
3. Disconnect the Bluetooth antenna connector.
4. Remove the Bluetooth antenna screws and remove the Bluetooth antenna.

Installation
Installation is in the reverse order of removal.

BLUETOOTH MICROPHONE

Removal
1. Disconnect the battery negative terminal.
2. Remove the map lamp. Service and Repair.
3. Remove the Bluetooth microphone.

Installation
Installation is in the reverse order of removal.
