Crankshaft Main Bearing

Main Bearing

MAIN BEARING











Undersize






Bearing Oil Clearance

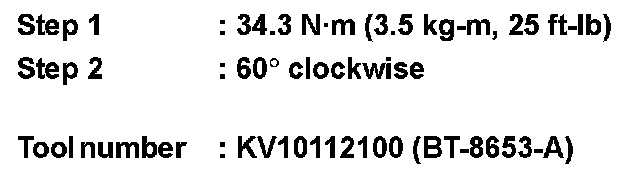

Main Bearing Cap Torque and Sequence

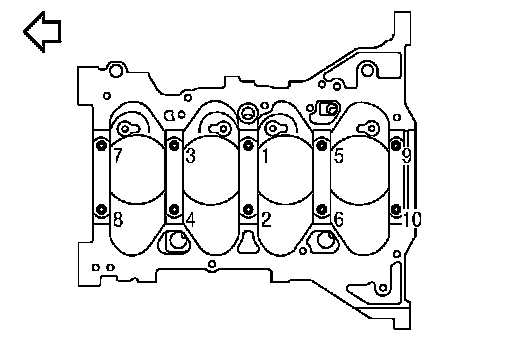

Tighten main bearing cap bolts in two steps in numerical order as shown.
Arrow Indicates Engine front

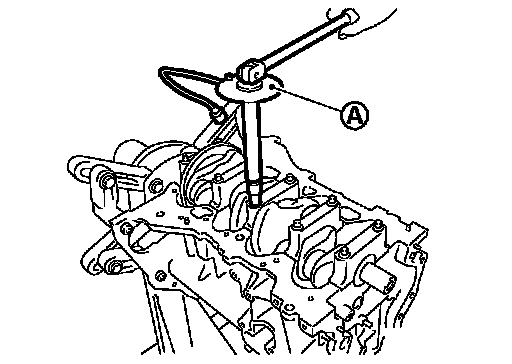

CAUTION: Measure the angle in Step 2 using Tool (A). Do not measure visually.
