Harmonic Balancer - Crankshaft Pulley

CRANKSHAFT PULLEY

Tighten to initial specifications:

Crankshaft pulley bolt initial tightening : 37.3 - 47.1 N.m (3.8 - 4.8 kg-m, 28 - 34 ft-lb)

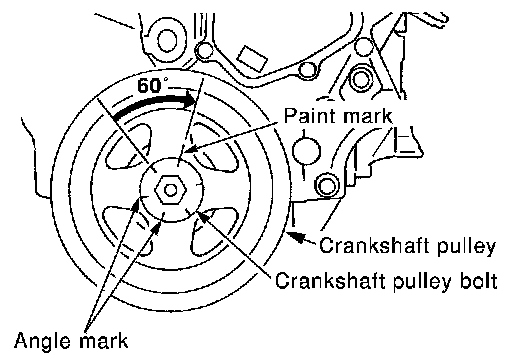

Apply a paint mark on the front cover, mating with any one of six easy to recognize stamp marks on bolt flange.

Turn crankshaft pulley bolt another 60� to 66� degrees [Target: 60� degrees].
Check vertical mounting angle with movement of one stamp mark.
