Windshield Washer Pump: Service and Repair





FRONT WIPER AND WASHER SYSTEM


Removal and Installation of Front Washer Motor


REMOVAL
1. Remove the front fender protector RH. Component Removal And Installation .

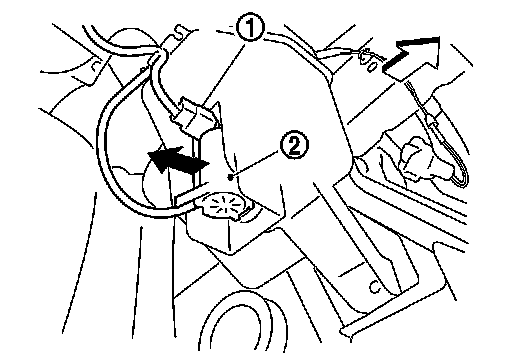

2. Disconnect washer motor connector (1) and remove washer tube.

- White Arrow Indicates Vehicle front

3. Pull out front washer motor (2) in the direction shown. Remove the front washer motor (2) from washer tank.

- White Arrow Indicates Vehicle front

INSTALLATION
Installation is in the reverse order of removal.

CAUTION:
When installing washer motor, there should be no packing twists, etc.
