System Diagram Multi AV System (Sedan) Bose Audio With Navigation
System Diagram Multi AV System (Sedan) Bose Audio With Navigation
MULTI AV SYSTEM (SEDAN)

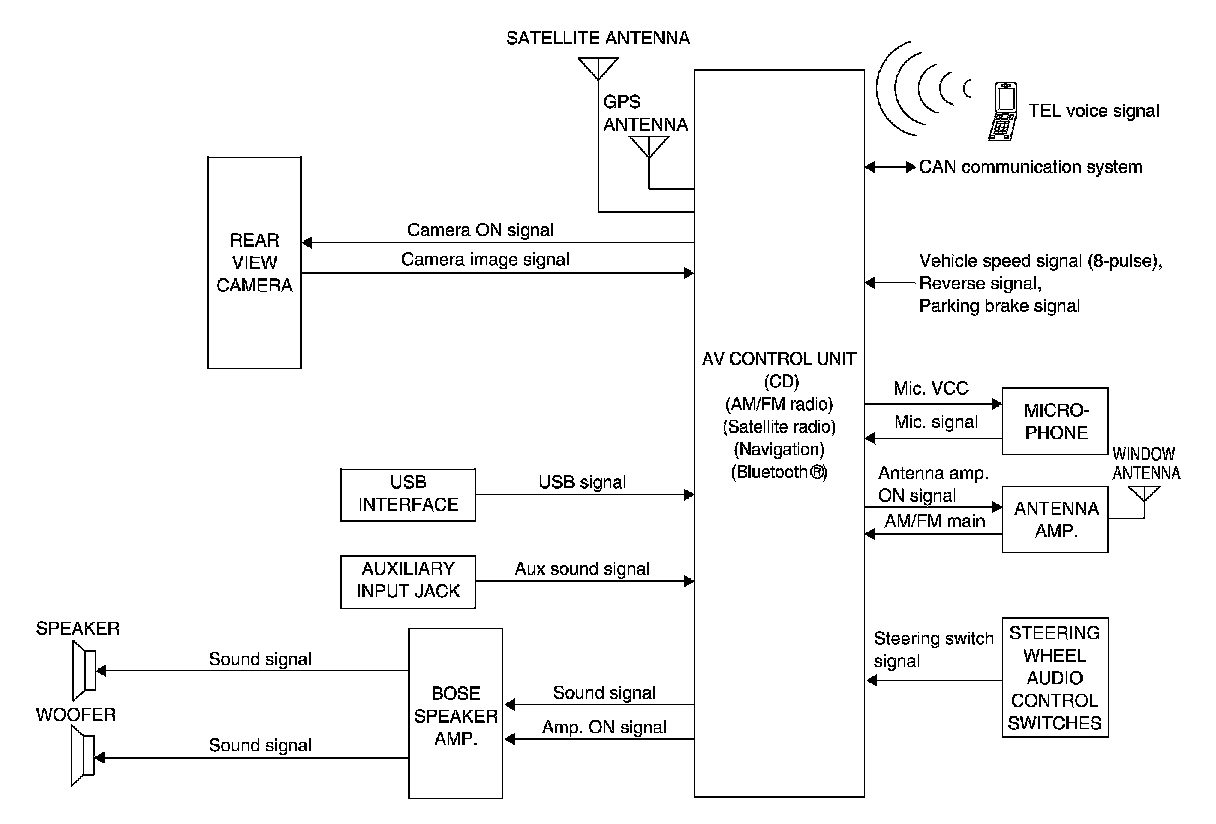

System Diagram
