Heated Glass Element
>>
Rear Window Defogger Coupe
Rear Window Defogger Coupe
REAR WINDOW DEFOGGER

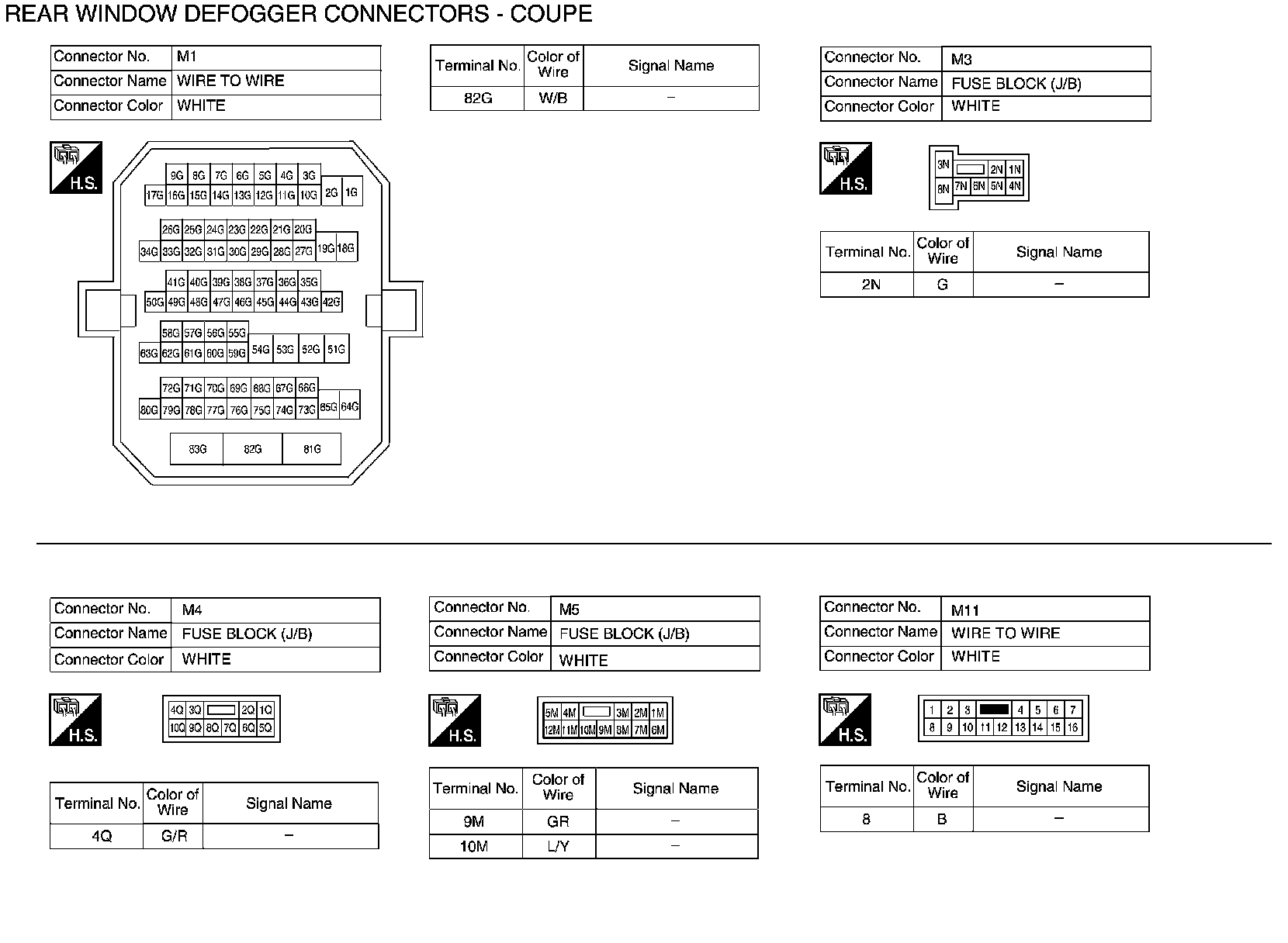

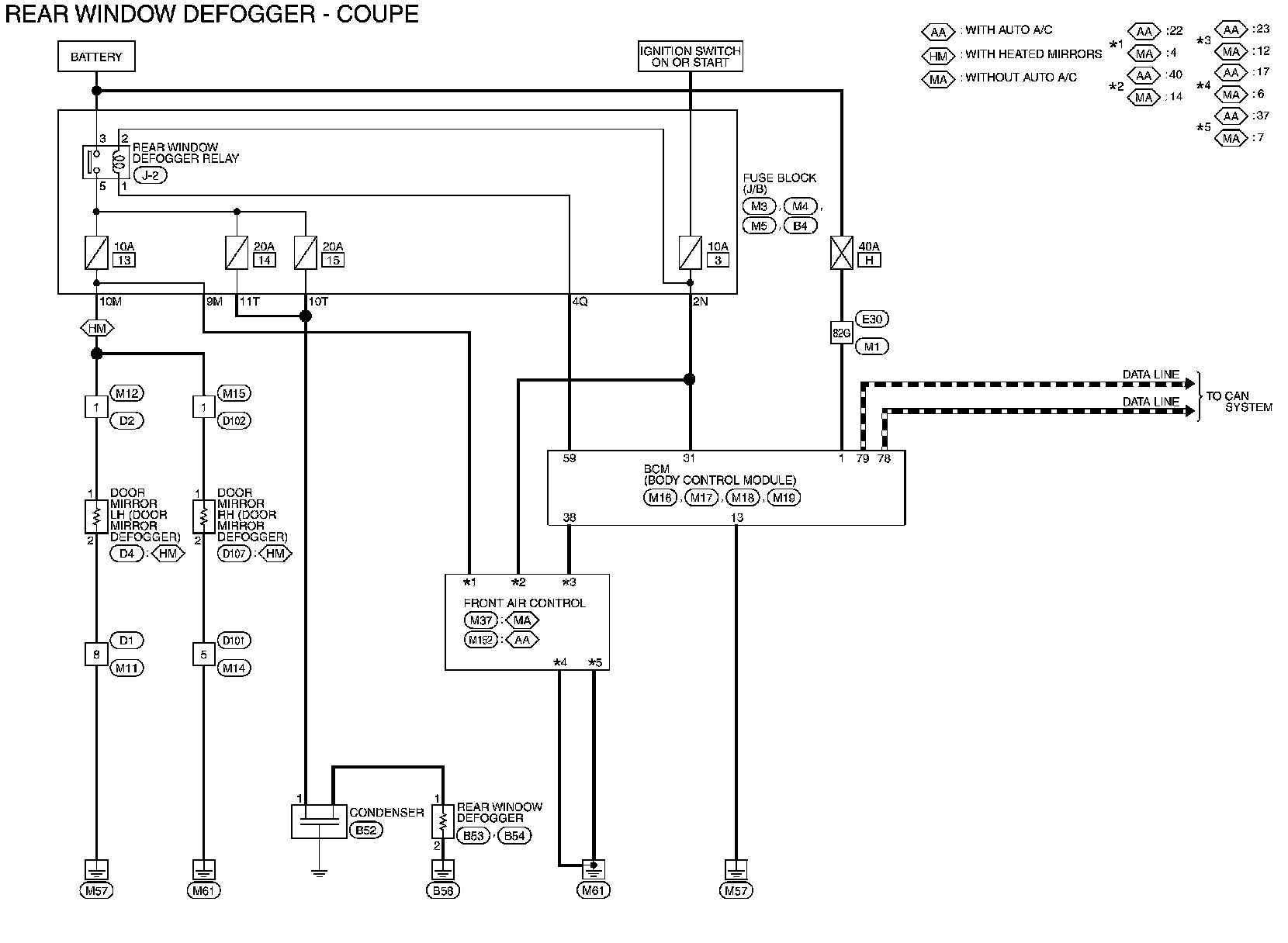

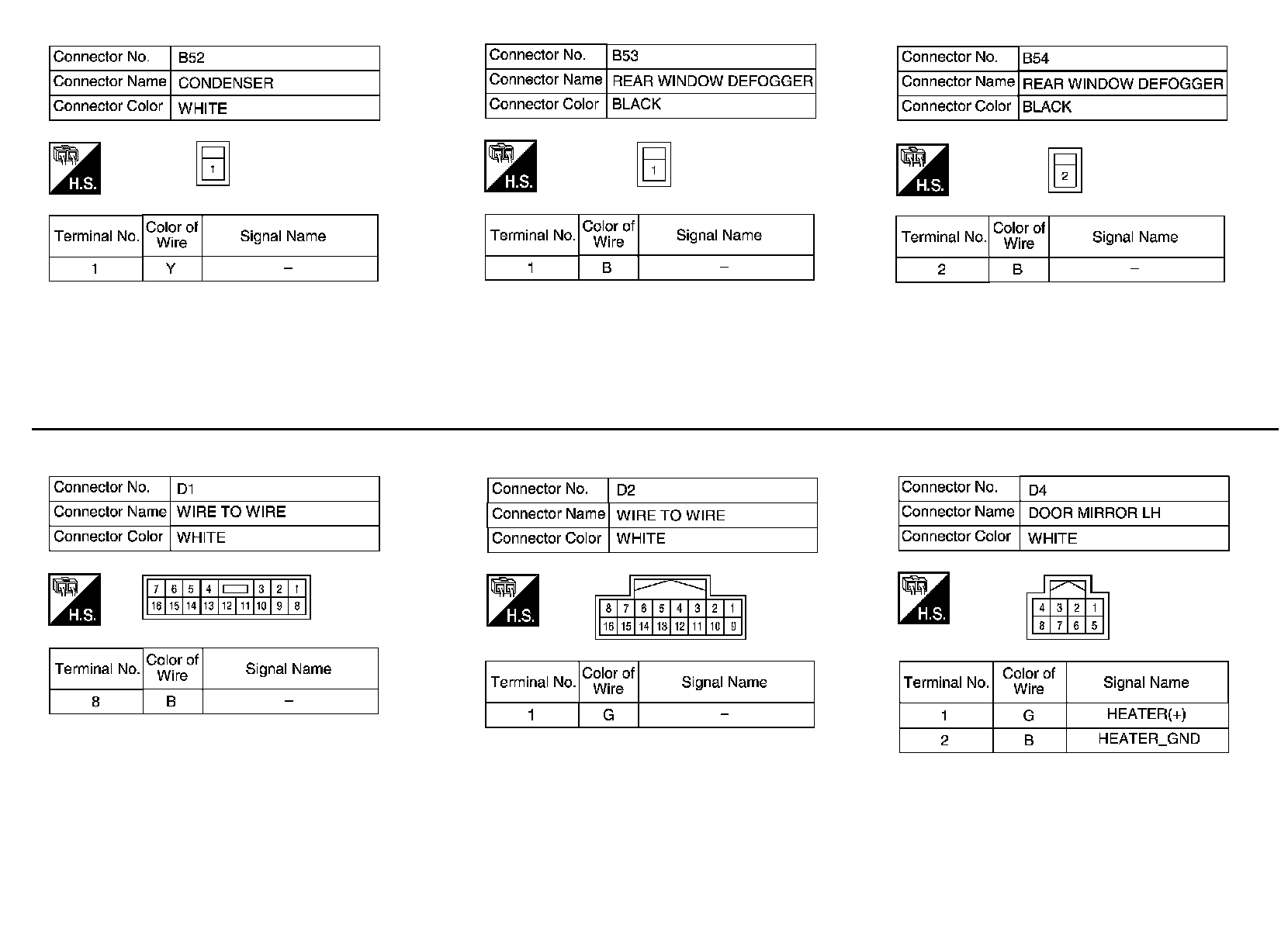

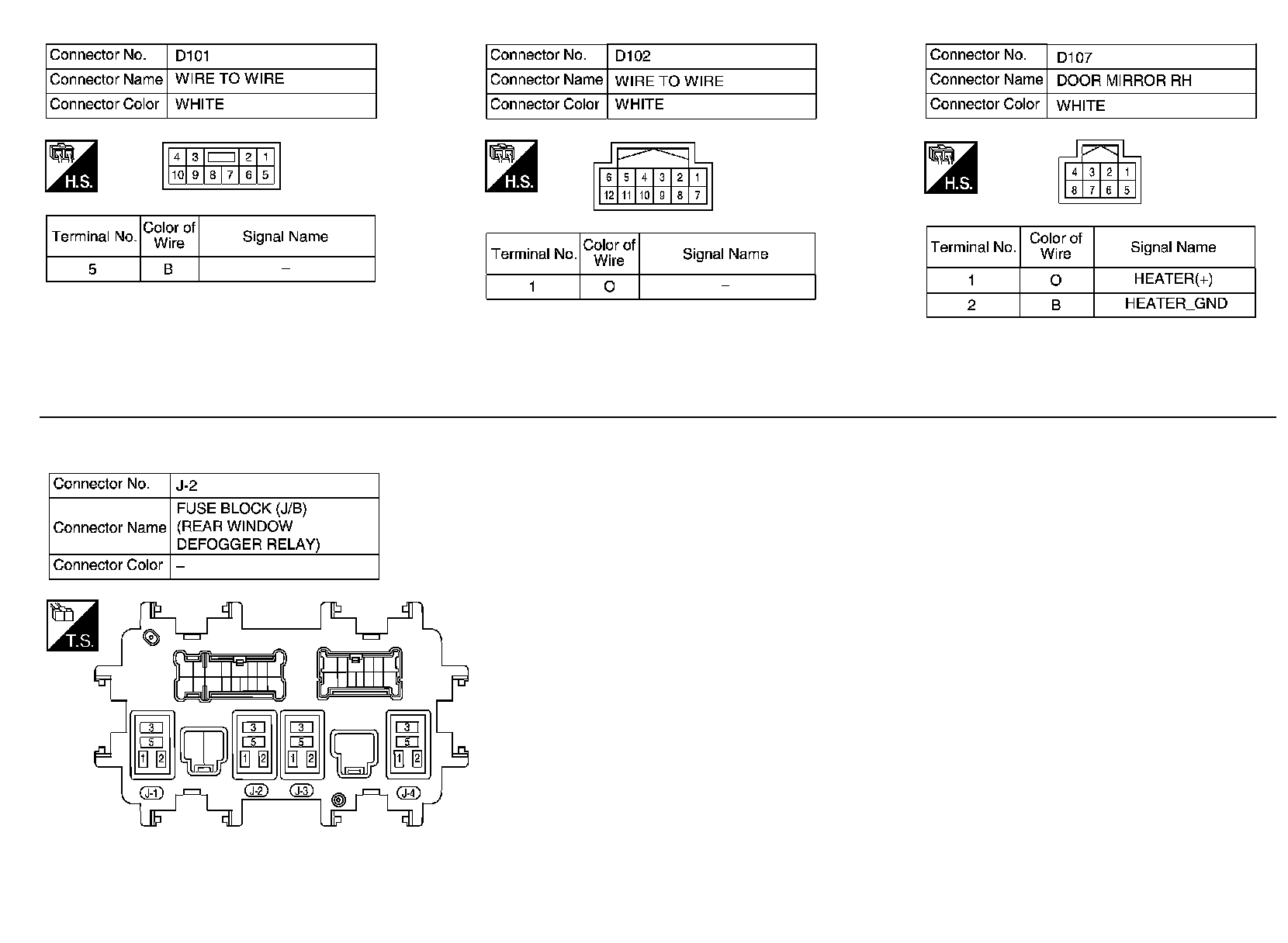

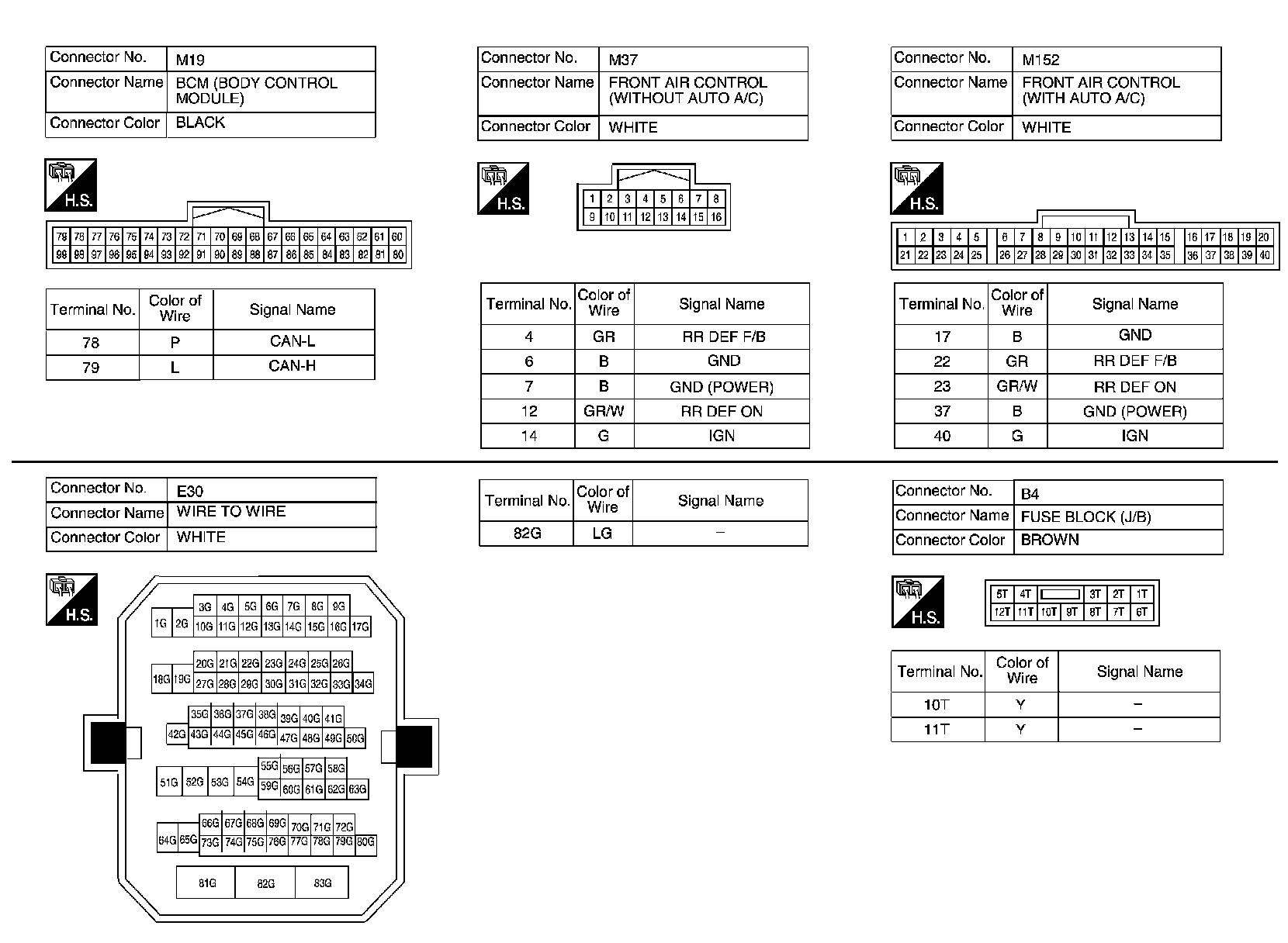

Wiring Diagram - Coupe
