Heated Glass Element
>>
Rear Window Defogger Sedan
Rear Window Defogger Sedan

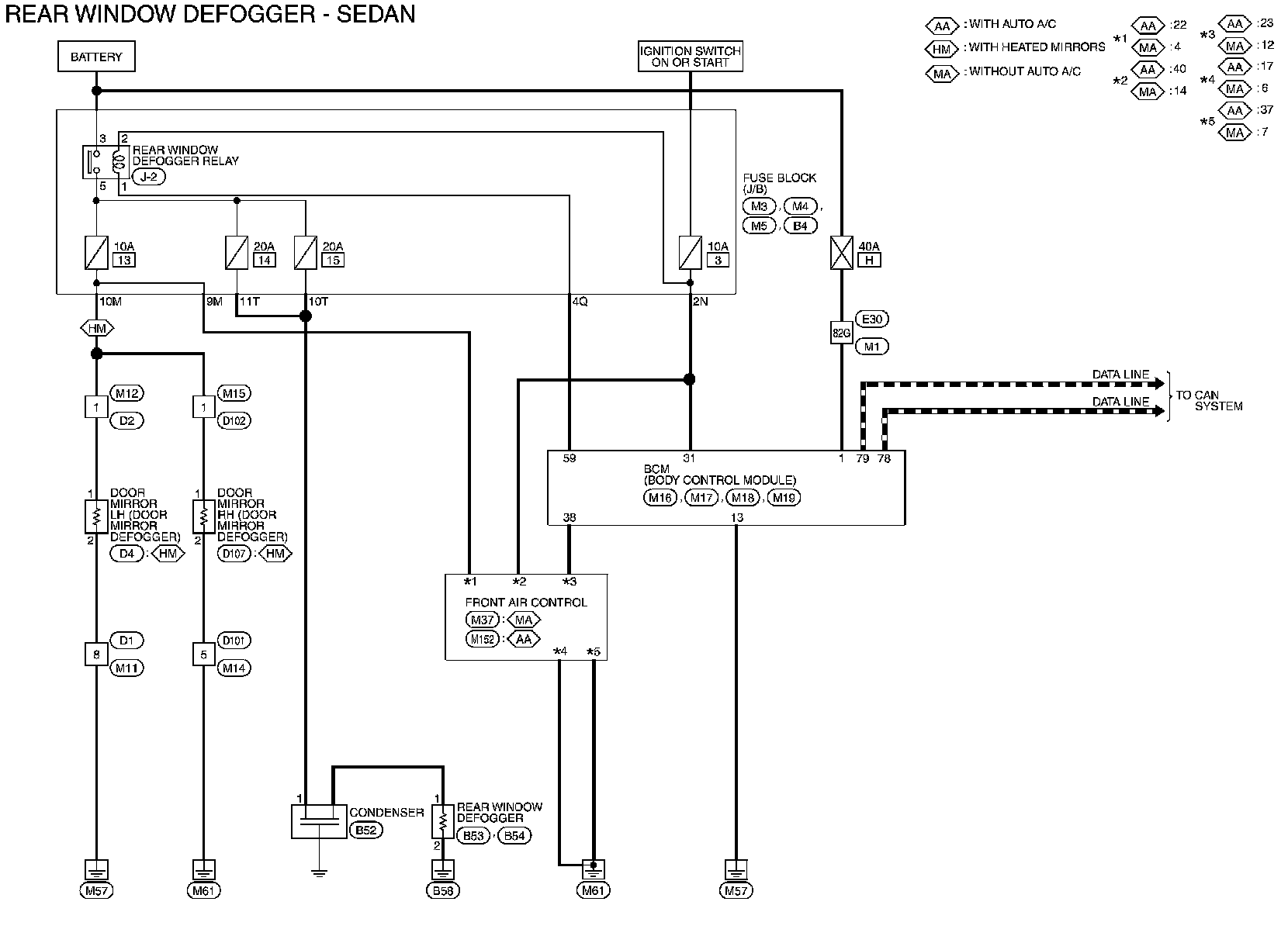

REAR WINDOW DEFOGGER
Wiring Diagram - Sedan
