Operation CHARM
: Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2011
>>
Altima L4-2.5L (QR25DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Air Conditioner Control Coupe Manual Air Conditioner
Air Conditioner Control Coupe Manual Air Conditioner
AIR CONDITIONER CONTROL

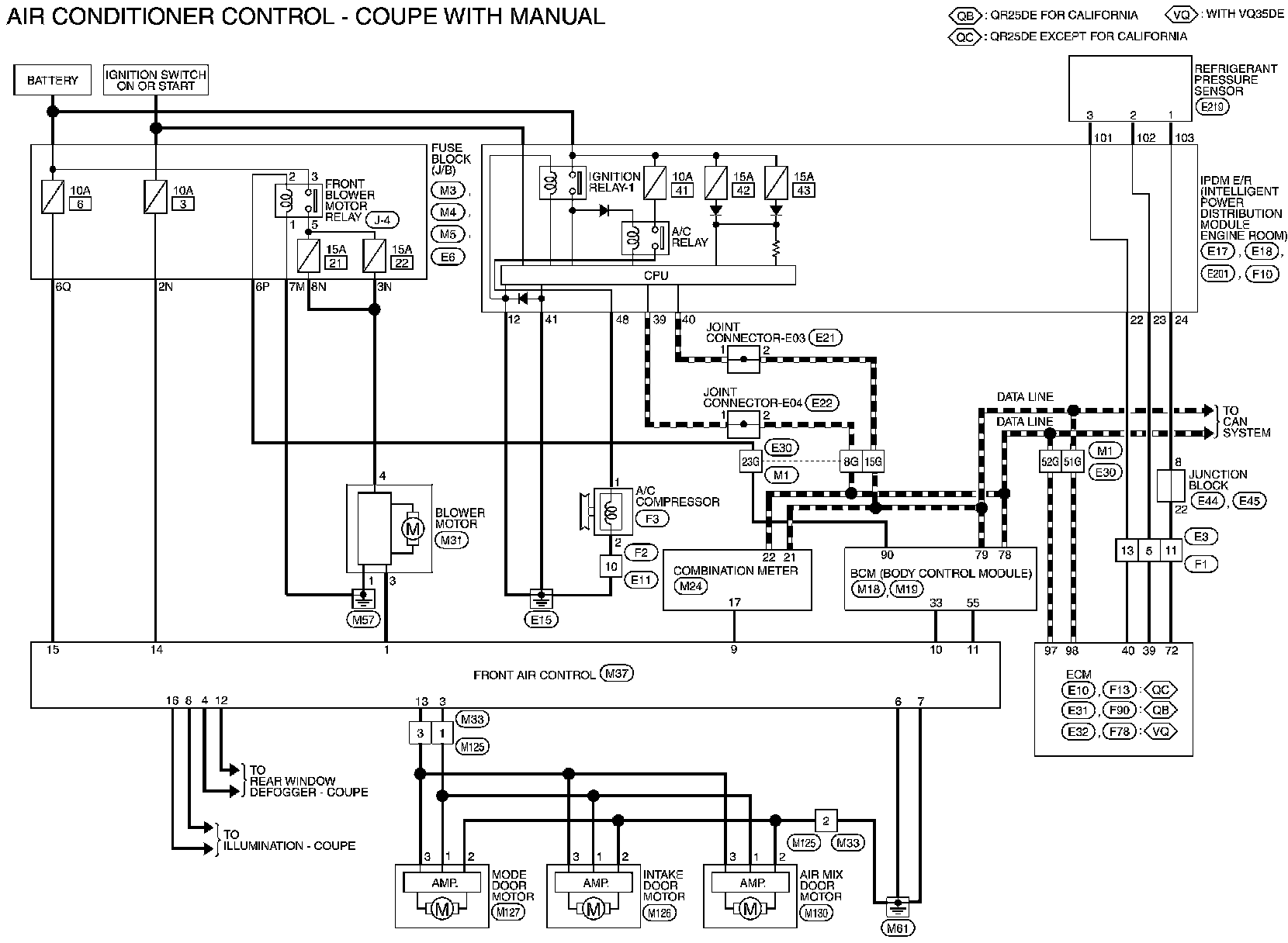

Wiring Diagram - Coupe With Manual
