Bose Audio Without Navigation Coupe





BOSE AUDIO WITHOUT NAVIGATION

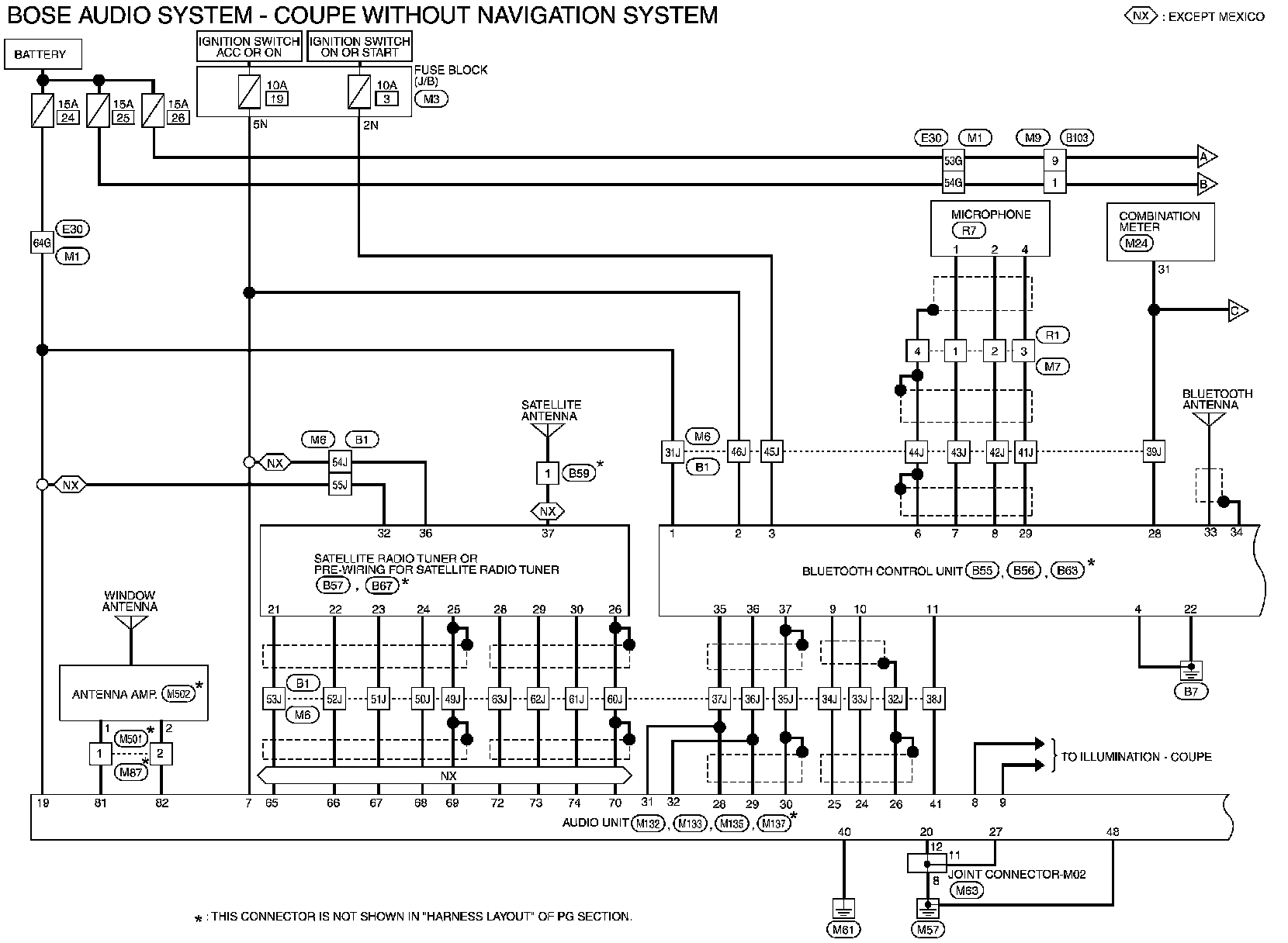

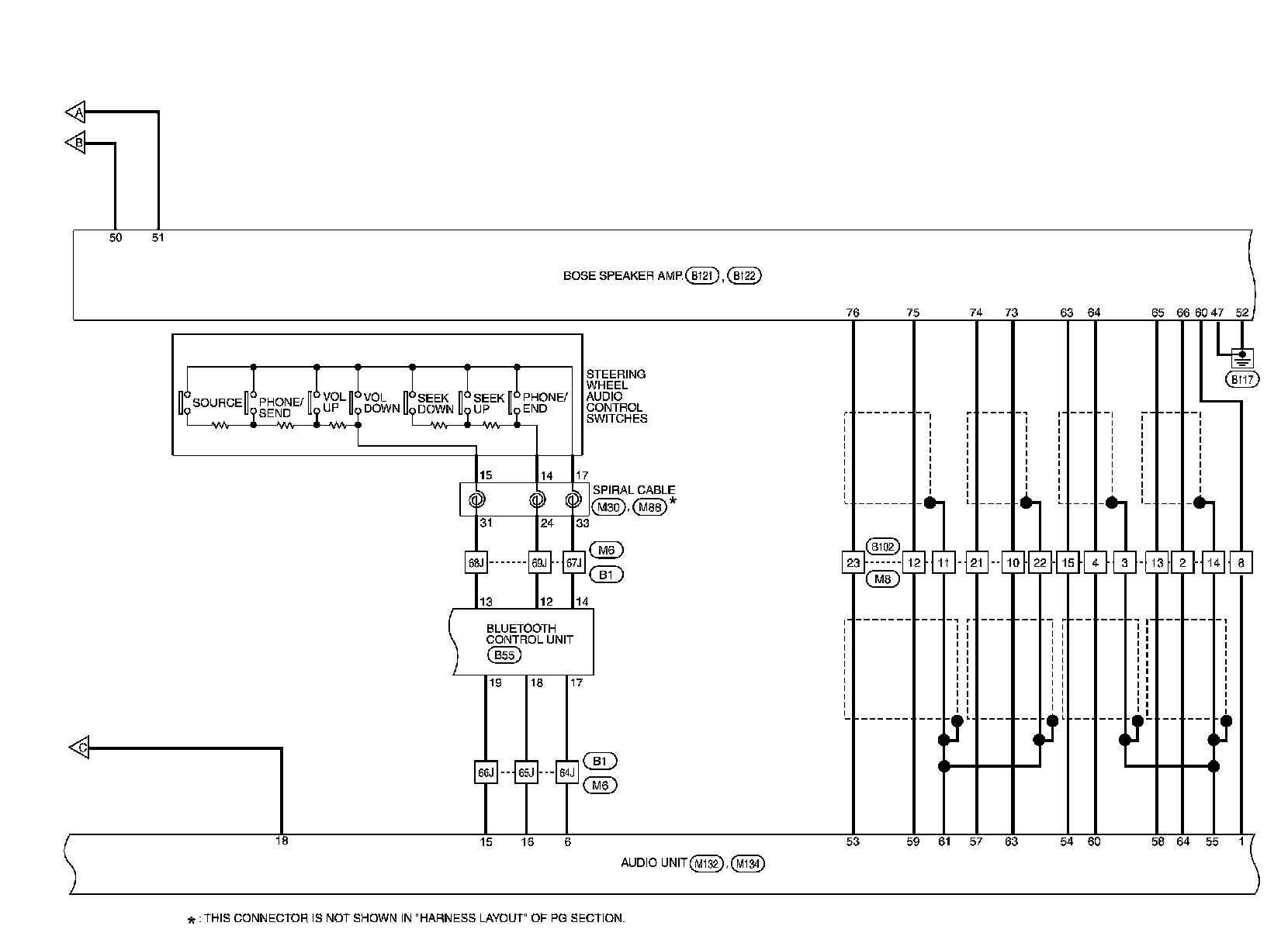

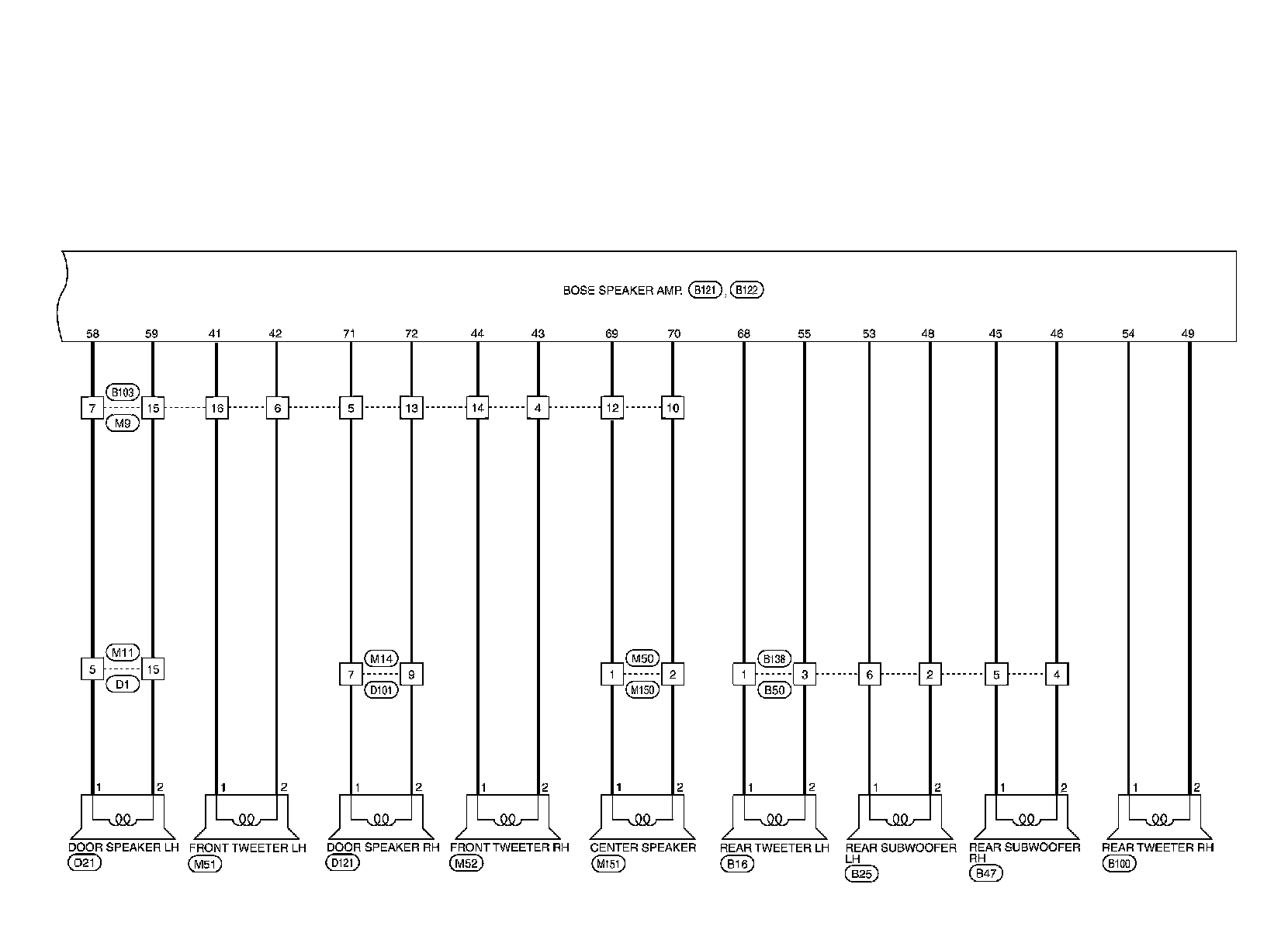

COUPE : Wiring Diagram - Coupe Without Navigation System
